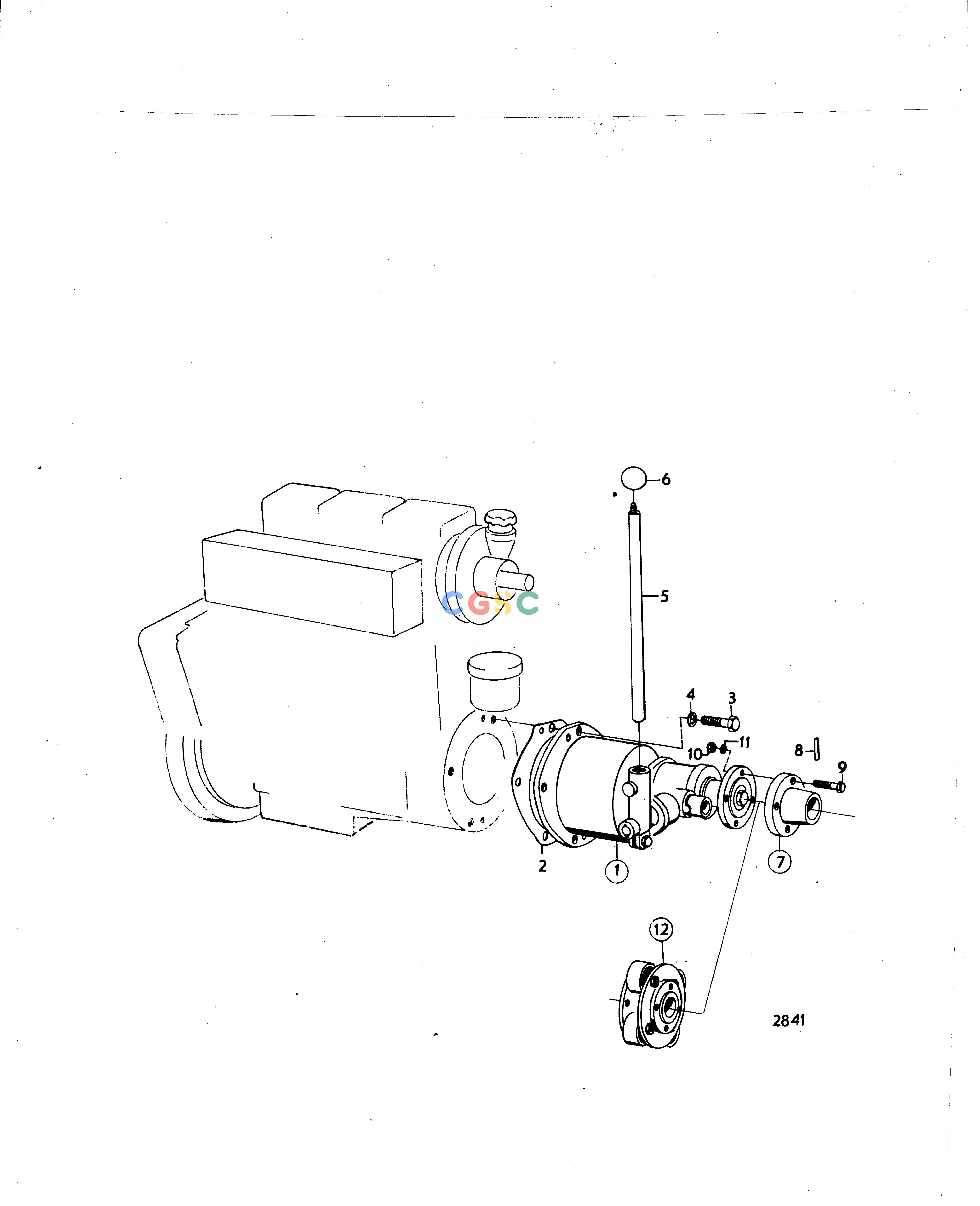

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BTransmissionsConnecting Components Friction ClutchEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
701 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
804743
|
[1] |
Friction clutch
|
|
| 1. |
|
|
|
See group 4D
|
| 2. |
803227
|
[1] |
Gasket
|
|
| 3. |
955319
|
[4] |
Hexagon screw
|
|
| 4. |
941908
|
[4] |
Spring washer
|
|
| 5. |
802743
|
[1] |
Control lever
|
|
| 6. |
60544
|
[1] |
Handle
|
|
| 7. |
806385
|
[1] |
Clutch flange
|
30mm hole for propeller shaft
|
| 8. |
907599
|
[1] |
Taper pin
|
|
| 9. |
955319
|
[4] |
Hexagon screw
|
|
| 10. |
955783
|
[4] |
Hexagon nut
|
|
| 11. |
941908
|
[4] |
Spring washer
|
|
| 12. |
|
|
|
See group 4D
|
