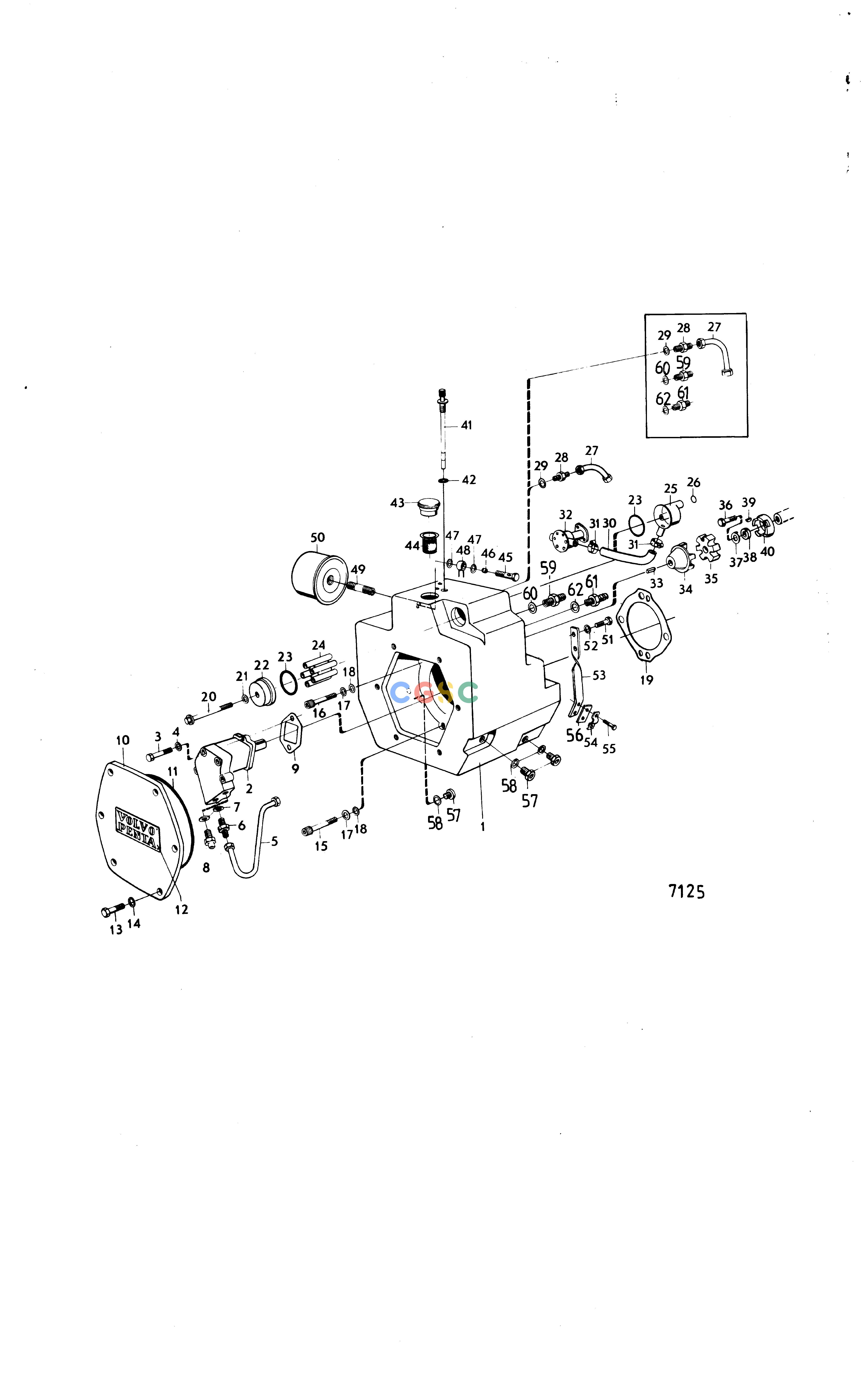

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BTransmissionsConnecting Components Hydraulic TransmissionEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
651 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833515
|
[1] |
Oil tank
|
|
| 2. |
833519
|
[1] |
Hydraulic pump
|
|
| 2. |
|
|
|
|
| 3. |
955341
|
[2] |
Hexagon screw
|
|
| 4. |
940280
|
[2] |
Spring washer
|
|
| 5. |
829728
|
[1] |
Tube
|
|
| 6. |
396035
|
[1] |
Nipple
|
|
| 7. |
944252
|
[2] |
Gasket
|
|
| 8. |
833512
|
[1] |
Nozzle
|
|
| 9. |
833520
|
[1] |
Gasket
|
|
| 10. |
833508
|
[1] |
Hatch
|
|
| 11. |
945617
|
[1] |
O-ring
|
|
| 12. |
827259
|
[1] |
Decal
|
|
| 13. |
955272
|
[6] |
Hexagon screw
|
|
| 14. |
941906
|
[6] |
Spring washer
|
|
| 15. |
959250
|
[3] |
Hex. socket screw
|
|
| 16. |
959247
|
[1] |
Hex. socket screw
|
|
| 17. |
941908
|
[4] |
Spring washer
|
|
| 18. |
960148
|
[4] |
Washer
|
|
| 19. |
803227
|
[1] |
Gasket
|
|
| 20. |
833528
|
[1] |
Centre bolt
|
|
| 21. |
947789
|
[1] |
O-ring
|
|
| 22. |
833507
|
[1] |
End cover
|
|
| 23. |
925092
|
[2] |
O-ring
|
|
| 24. |
824514
|
[1] |
Insert
|
|
| 25. |
833506
|
[1] |
End cover
|
|
| 26. |
418411
|
[1] |
Sealing ring
|
|
| 27. |
396063
|
[1] |
Pipe elbow
|
|
| 28. |
396013
|
[1] |
Nipple
|
|
| 29. |
948883
|
[1] |
Gasket
|
|
| 30. |
952969
|
[1] |
Hose
|
L=100mm
|
| 31. |
943473
|
[2] |
Hose clamp
|
(951789)
|
| 32. |
833522
|
[1] |
Water pump
|
|
| 32. |
|
|
|
See group 2B
|
| 33. |
909305
|
[1] |
Key
|
|
| 34. |
833510
|
[1] |
Companion flange
|
|
| 35. |
827615
|
[1] |
Rubber coupling
|
|
| 36. |
959664
|
[1] |
Hexagon screw
|
|
| 37. |
803226
|
[1] |
Lock washer
|
|
| 38. |
803225
|
[1] |
Washer
|
|
| 39. |
910121
|
[1] |
Woodruff key
|
|
| 40. |
834336
|
[1] |
Companion flange
|
|
| 41. |
833523
|
[1] |
Oil dipstick
|
|
| 42. |
925053
|
[1] |
O-ring
|
|
| 43. |
803595
|
[1] |
Cover
|
|
| 44. |
833633
|
[1] |
Strainer
|
|
| 45. |
807058
|
[1] |
Hollow screw
|
|
| 46. |
833591
|
[1] |
Nozzle
|
|
| 47. |
957178
|
[2] |
Gasket
|
|
| 48. |
833590
|
[1] |
Oil pipe
|
|
| 49. |
418440
|
[1] |
Nipple
|
|
| 50. |
834337
|
[1] |
Oil filter
|
|
| 51. |
955270
|
[2] |
Hexagon screw
|
|
| 52. |
941906
|
[2] |
Spring washer
|
|
| 53. |
833542
|
[1] |
Cable attachment
|
|
| 54. |
21471054
|
[2] |
Bracket
|
|
| 55. |
956076
|
[4] |
Cross recessed screw
|
|
| 56. |
819068
|
[2] |
Washer
|
|
| 57. |
833521
|
[3] |
Plug
|
|
| 58. |
948884
|
[3] |
Gasket
|
|
| 59. |
396015
|
[1] |
Nipple
|
|
| 60. |
948885
|
[1] |
Gasket
|
|
| 61. |
833513
|
[1] |
Nipple
|
|
| 62. |
944252
|
[1] |
Gasket
|
|
