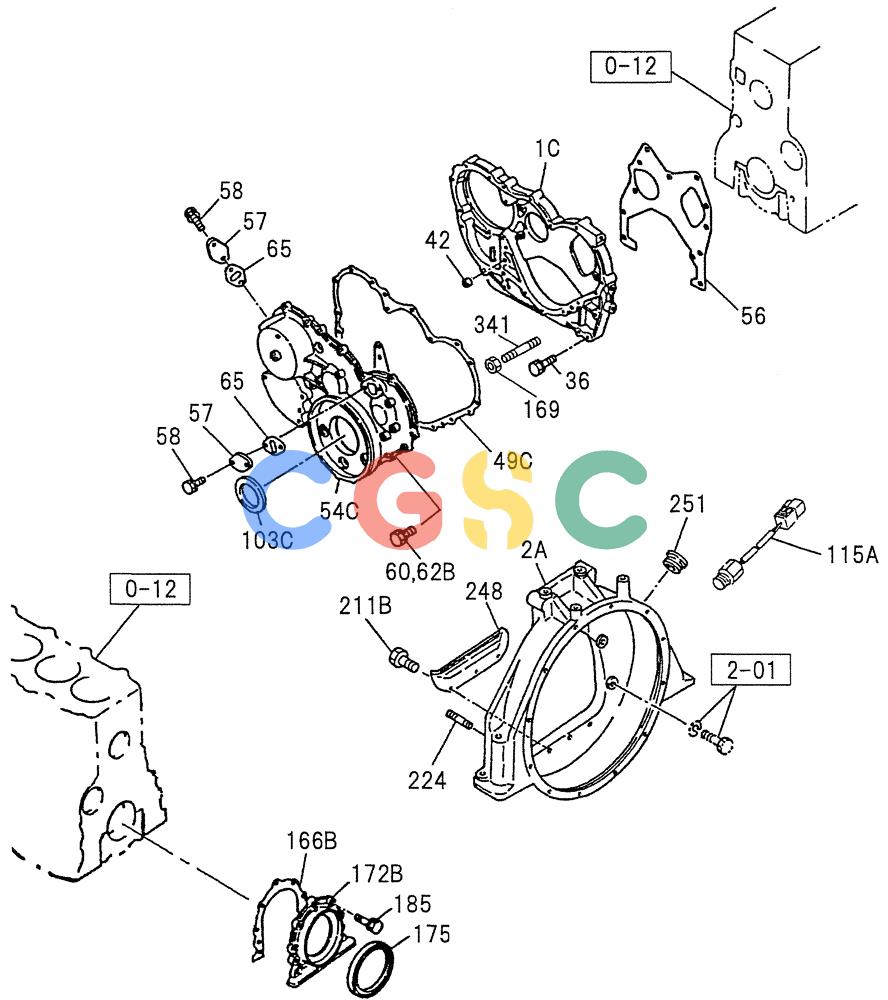

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (08-008) - TIMING GEAR CASE AND FLYWHEEL HOUSING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
553 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1C. | VI8944509752 | [1] | CASE | KOBCASE; TIMING GEAR |
| 2 A. | VI8971333292 | [1] | MOTOR HOUSING | KOBHOUSING; FLYWHEEL Superseded by part number: 72961672 |
| 36. | VI0280808220 | [4] | BOLT; GEAR CASE (M8X22 FLANGE) | |
| 36. | VI0280808400 | [2] | BOLT; GEAR CASE (M8X40 FLANGE) | |
| 42. | VI9112290581 | [1] | DOWEL | KOBDOWEL; GEAR CASE COVER |
| 49 C. | VI8943210160 | [1] | GASKET; GEAR CASE TO COVER | |
| 49 C. | VI8972333010 | [1] | GASKET | KOBGASKET; GEAR CASE TO COVER |
| 54 C. | VI8971298300 | [1] | COVER | KOBCOVER; GEAR CASE |
| 56. | VI8943706710 | [1] | GASKET | KOBGASKET; GEAR CASE TO COVER Superseded by part number: VI8943706711 |
| 57. | VI5113210090 | [2] | COVER | KOBCOVER; TIMING CHECK HOLE |
| 58. | VI0280806120 | [4] | BOLT | KOBBOLT; CHECK HOLE COVER (M6X12 FLANGE) |
| 60. | VI0280808800 | [1] | BOLT | KOBBOLT; COVER TO CASE (M8X80 FLANGE) |
| 62 B. | VI0280810500 | [3] | BOLT; COVER (M10X50 FLANGE) | |
| 62 B. | VI1090440711 | [2] | BOLT | KOBBOLT; COVER (M8X55 FLANGE) |
| 65. | VI8970276011 | [2] | GASKET | KOBGASKET; COVER, TIM ING CHECK HOLE Superseded by part number: VI8971186980 |
| 103 C. | VI1096254380 | [1] | OIL SEAL | KOBSEAL; OIL,CR/SHF,FRT |
| 115 A. | VI1815105130 | [1] | SENSOR | KOBTachometer, Engine Speed |
| 166 B. | VI8943706640 | [1] | GASKET | KOBGASKET; RET TO C/BL Superseded by part number: VI8943706641 |
| 169. | VI0911502080 | [2] | NUT | KOBNUT; COVER Superseded by part number: VI0911802080 |
| 172 B. | VI8970795200 | [1] | RETAINER | KOBRETAINER; CR/SHF |
| 175. | VI8970728231 | [1] | SEAL | KOBSEAL; OIL, CR/SHF, RR |
| 185. | VI0286808250 | [7] | BOLT | KOBBOLT; RET TO C/BL (M8X25 FLANGE) |
| 224. | VI9944112350 | [2] | STUD | KOBSTUD; STARTER (M12X35 L=53) |
| 248. | VI8970428010 | [1] | COVER | KOBCOVER; DUST, FLYWHEEL HSG RET |
| 251. | VI9113491341 | [1] | COVER | KOBCOVER; TIMING, CHECK HOLE |
| 341. | VI9041108550 | [2] | STUD; COVER GEAR CASE (M8X55 L=67) | |
