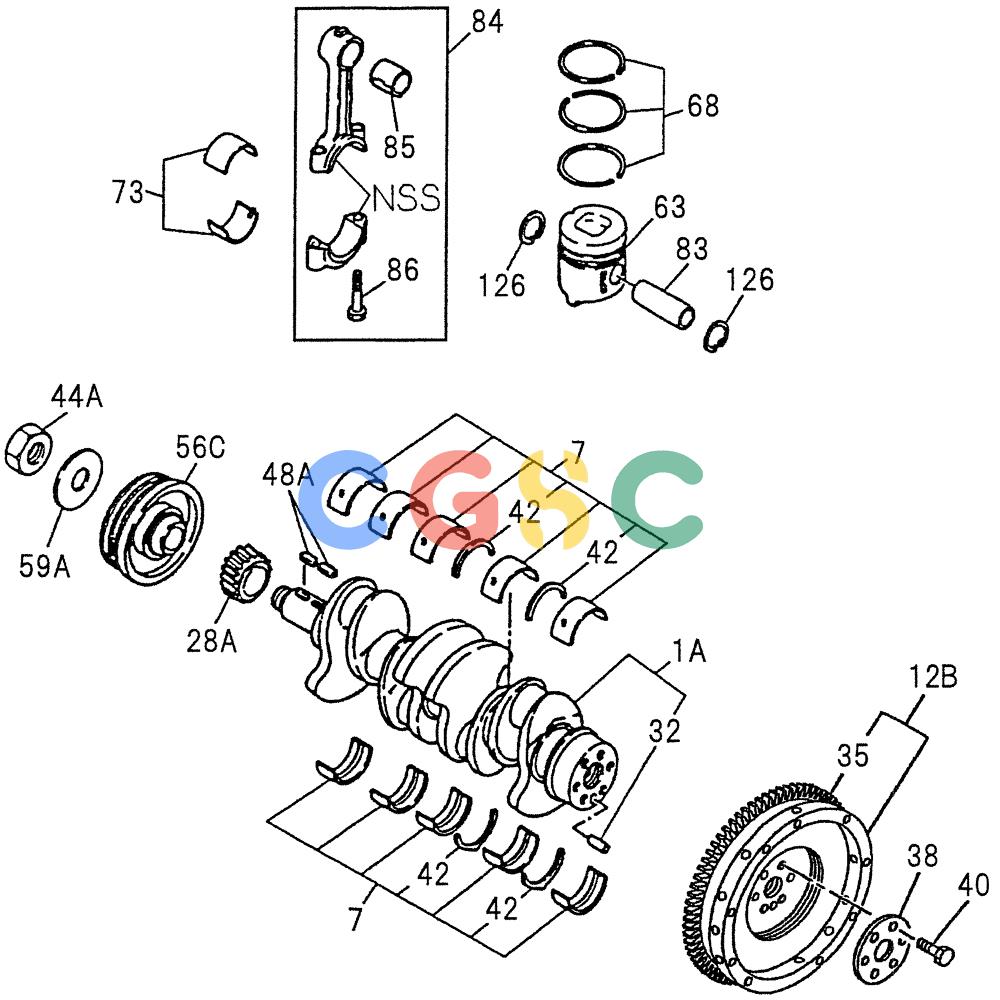

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (08-007) - CRANKSHAFT, PISTON AND FLYWHEEL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
116 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1 A. | VI8973581440 | [1] | CRANKSHAFT, Start Year: 03-NOV-07 | |
| 7. | VI8970716610 | [1] | KIT | KOBMETAL KIT; CRANKSHAFT, STANDARD |
| 12 B. | VI8944067545 | [1] | FLYWHEEL | KOBFLYWHEEL |
| 28 A. | VI8971379102 | [1] | GEAR | KOBGEAR; CR/SHF (Z=25) |
| 32. | VI9081612200 | [1] | PIN | KOBPIN; FLYWHEEL (0D=12 L=20) |
| 35. | VI8971759020 | [1] | RING GEAR | KOBGEAR; RING |
| 38. | VI5123360030 | [1] | WASHER | KOBWASHER; FLYWHEEL |
| 40. | VI5123340030 | [6] | BOLT | KOBBOLT; FLYWHEEL (M14X36) |
| 42. | VI8970713580 | [2] | WASHER | KOBWASHER; THRUST, CR/SHF |
| 44 A. | VI5123780020 | [1] | NUT | KOBNUT; CR/SHF FRT |
| 48 A. | VI8941075970 | [2] | KEY | KOBKEY; WOODRUFF, CR/SHF |
| 59 A. | VI5095030240 | [1] | WASHER | KOBWASHER; CR/SHF PULLEY |
| 63. | VI8973585740 | [4] | PISTON | KOBPISTON (GRADE=AX), Start Year: 03-MAR-07 |
| 63. | VI8972874000 | [4] | PISTON (GRADE=CX), Years: -03-FEB-07 | |
| 73. | VI9122716080 | [4] | CONNECTION | KOBMETAL SET; CONN ROD, STANDARD |
| 83. | VI1122110332 | [4] | PISTON PIN | KOBPIN; PISTON |
| 84. | VI1122301291 | [4] | ROD ASSY. | KOBROD ASM; CONN Superseded by part number: VI1122301292 |
| 85. | VI1122510320 | [4] | BUSHING | KOBBUSHING; CONN ROD |
| 86. | VI1122350271 | [8] | BOLT | KOBBOLT; CONN ROD |
| 126. | VI8941075751 | [8] | RING | KOBRING; SNAP, PISTON PIN |
