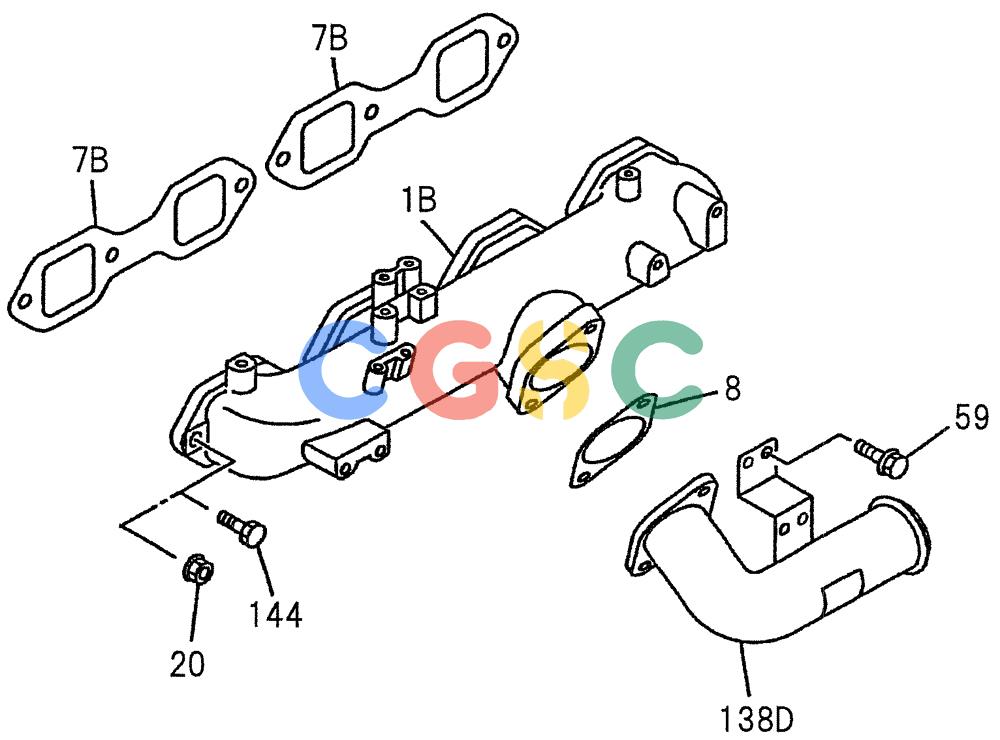

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (08-010) - INLET MANIFOLD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
630 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 8. | VI8943706760 | [1] | GASKET | KOBGASKET; INL DUCT |
| 20. | VI0911501080 | [4] | NUT | KOBNUT; INL MANIF Superseded by part number: VI0911802080 |
| 59. | VI0287810300 | [2] | BOLT; INL PIPE TO MANIF (M10X30 FLANGE) | |
| 138 D. | VI8972451990 | [1] | PIPE | KOBPIPE; INL |
| 144. | VI0500408250 | [4] | BOLT | KOBBOLT; BRACKET FIX (M8X25 W/LK WASHER) Superseded by part number: VI0505408250 |
