纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (08-011) - EXHAUST MANIFOLD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
962 次

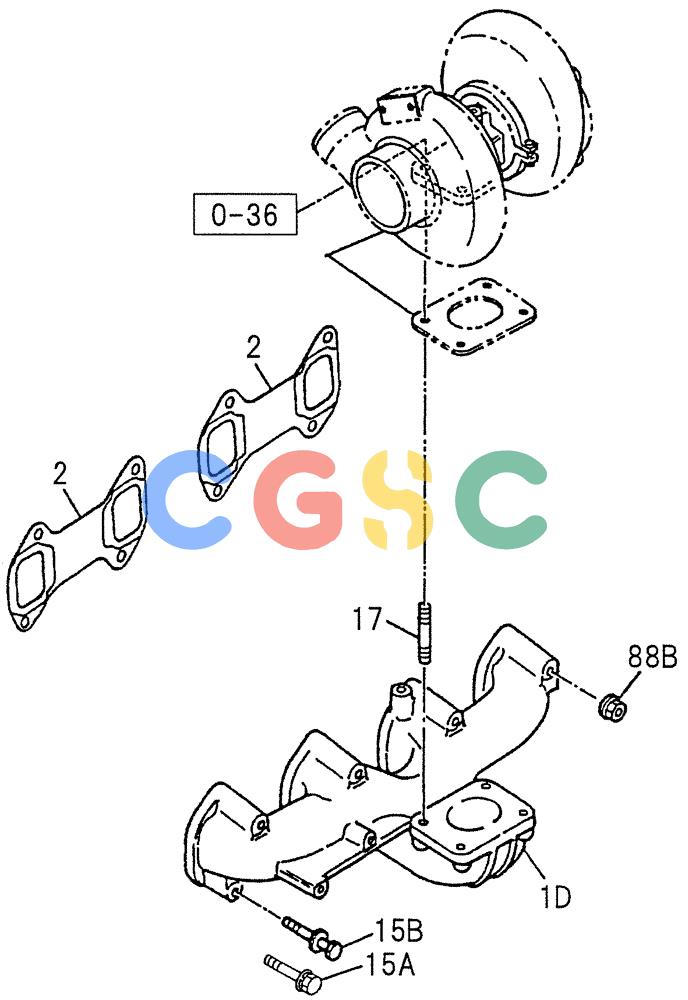

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1 D. | VI8943660210 | [1] | MANIFOLD | KOBMANIFOLD; EXHAUST |
| 2. | VI8944046100 | [2] | GASKET | KOBGASKET; EXH MANIF TO HD |
| 15 A. | VI8943185540 | [2] | BOLT | KOBBOLT; EXH MANIF (M8X63 W/PL WASHER) |
| 15 B. | VI8943185550 | [2] | BOLT | KOBBOLT; EXH MANIF (M8X75 W/PL WASHER) |
| 17. | VI8942573190 | [4] | STUD | KOBSTUD; MANIF TO TURBOCHARGER (M8X22 L=33), (TCY ONLY) |
| 17. | VI8973780610 | [4] | STUD | KOBSTUD; MANIF TO TURBOCHARGER (M8X22 L=33) |
| 88 B. | VI8941704860 | [4] | NUT | KOBNUT; EXH PIPE Superseded by part number: VI8971616070 |
| 88 B. | VI8970614011 | [4] | NUT | KOBNUT; EXH PIPE |
