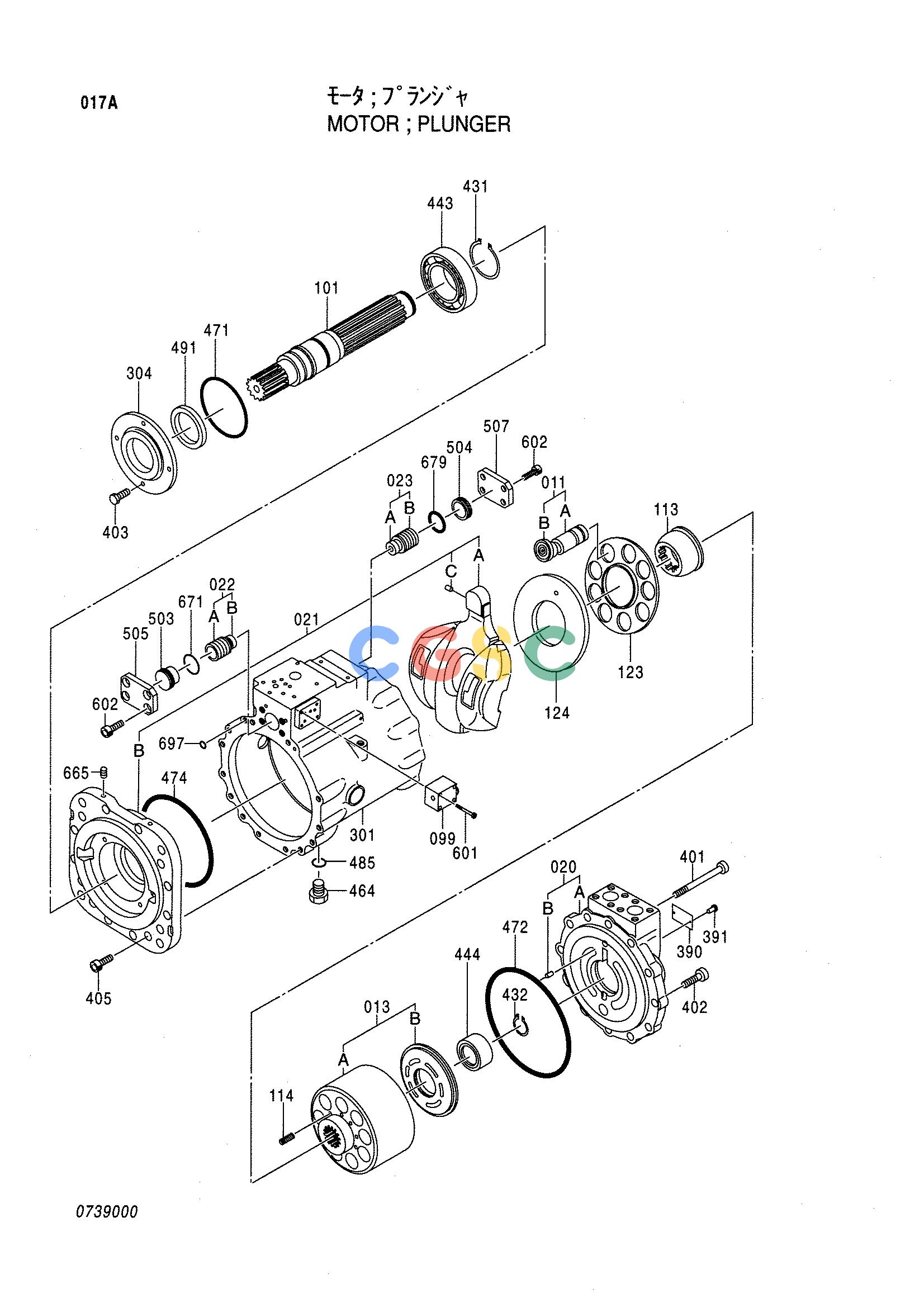

日立零件查询（CX1000）MOTOR;PLUNGER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
1026 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | +++++++ | [1] | MOTOR;PLUNGER | 0739000 |
| 011. | 0739001 | [1] | PISTON | |
| 011A. | +++++++ | [9] | PISTON | |
| 011B. | +++++++ | [9] | SHOE | |
| 013. | 0739002 | [1] | CYL. | |
| 013A. | +++++++ | [1] | CYL. | |
| 013B. | +++++++ | [1] | PLATE;VALVE | |
| 020. | 0739003 | [1] | COVER | |
| 020A. | +++++++ | [1] | COVER | |
| 020B. | +++++++ | [1] | PIN | |
| 021. | 0739004 | [1] | PLATE | |
| 021A. | +++++++ | [1] | PLATE | |
| 021B. | +++++++ | [1] | CASING;FRONT | |
| 021C. | +++++++ | [1] | PIN | |
| 022. | 0739005 | [1] | PISTON | |
| 022A. | +++++++ | [1] | PISTON | |
| 022B. | +++++++ | [1] | SHOE | |
| 023. | 0739006 | [1] | PISTON | |
| 023A. | +++++++ | [1] | SHOE | |
| 023B. | +++++++ | [1] | PISTON | |
| 099. | 0739007 | [1] | BLOCK | |
| 101. | 0739008 | [1] | SHAFT | |
| 113. | 0739009 | [1] | BUSHING | |
| 114. | 0739010 | [9] | SPRING | |
| 123. | 0739011 | [1] | RETAINER | |
| 124. | 0739012 | [1] | PLATE | |
| 301. | 0739013 | [1] | CASING;MOTOR | |
| 304. | 0739014 | [1] | COVER;FRONT | |
| 390. | 0625508 | [1] | NAME-PLATE | |
| 391. | 0625509 | [2] | PIN | |
| 401. | M342080 | [1] | BOLT;SOCKET | |
| 402. | 0365318 | [9] | BOLT;SOCKET | |
| 403. | 0291225 | [4] | BOLT | |
| 405. | 0222816 | [14] | BOLT;SOCKET | |
| 431. | 991351 | [1] | RING;RETAINING | |
| 432. | 0739015 | [1] | RING;RETAINING | |
| 443. | 0739016 | [1] | BRG.;ROLLER | |
| 444. | 0739017 | [1] | BRG.NEEDLE | |
| 464. | 0175233 | [2] | PLUG | |
| 471. | 0236016 | [1] | O-RING | |
| 472. | 0739018 | [1] | O-RING | |
| 474. | 0222821 | [1] | O-RING | |
| 485. | 4506424 | [2] | O-RING | |
| 491. | 0739019 | [1] | SEAL;OIL | |
| 503. | 0739020 | [1] | STOPER | |
| 504. | 0739021 | [1] | STOPER | |
| 505. | 0739022 | [1] | COVER | |
| 507. | 0739023 | [1] | COVER | |
| 601. | M340650 | [4] | BOLT;SOCKET | |
| 602. | 0222827 | [8] | BOLT;SOCKET | |
| 665. | 0263019 | [12] | PLUG | |
| 671. | A811040 | [1] | O-RING | |
| 679. | A811060 | [1] | O-RING | |
| 697. | 4506408 | [4] | O-RING | |
