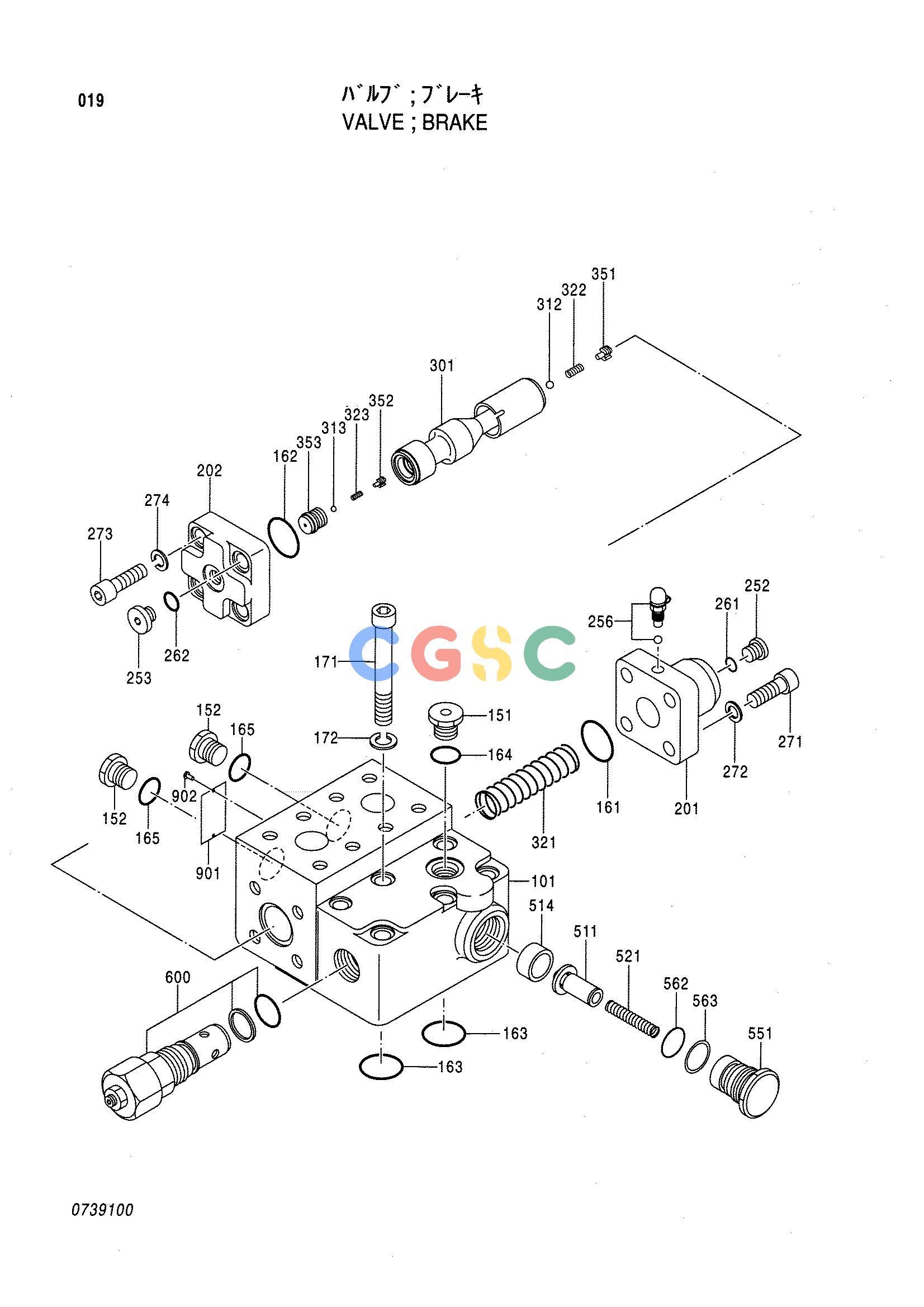

日立零件查询（CX1000）VALVE;BRAKE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
309 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4393901 | [1] | VALVE;BRAKE | 0739100 |
| 101. | +++++++ | [1] | CASING | |
| 151. | 0718901 | [1] | PLUG | |
| 152. | 0718901 | [2] | PLUG | |
| 161. | A811035 | [1] | O-RING | |
| 162. | A811035 | [1] | O-RING | |
| 163. | A811035 | [2] | O-RING | |
| 164. | 4509180 | [1] | O-RING | |
| 165. | 4509180 | [2] | O-RING | |
| 171. | 0404401 | [6] | BOLT;SOCKET | |
| 172. | 495841 | [6] | WASHER;SPRING | |
| 201. | 0625601 | [1] | COVER | |
| 202. | 0102104 | [1] | COVER | |
| 252. | 0210719 | [1] | PLUG | |
| 253. | 0125804 | [1] | PLUG | |
| 256. | 0125434 | [1] | PLUG | |
| 261. | 957366 | [1] | O-RING | |
| 262. | 4506416 | [1] | O-RING | |
| 271. | M341236 | [4] | BOLT;SOCKET | |
| 272. | 495841 | [4] | WASHER;SPRING | |
| 273. | M341236 | [4] | BOLT;SOCKET | |
| 274. | 495841 | [4] | WASHER;SPRING | |
| 301. | +++++++ | [1] | SPOOL | |
| 312. | +++++++ | [1] | BALL | |
| 313. | +++++++ | [1] | BALL | |
| 321. | 0102108 | [1] | SPRING | |
| 322. | +++++++ | [1] | SPRING | |
| 323. | +++++++ | [1] | SPRING | |
| 351. | +++++++ | [1] | VALVE | |
| 352. | +++++++ | [1] | VALVE | |
| 353. | +++++++ | [1] | PLUG | |
| 511. | 0177004 | [1] | PLUNGER | |
| 514. | +++++++ | [1] | SEAT | |
| 521. | 0223004 | [1] | SPRING | |
| 551. | 0177006 | [1] | PLUG | |
| 562. | A811025 | [1] | O-RING | |
| 563. | 0177007 | [1] | RING;BACK-UP | |
| 600. | 0739101 | [1] | VALVE;RELIEF | |
| 901. | +++++++ | [1] | NAME-PLATE | |
| 902. | +++++++ | [2] | RIVET | |
