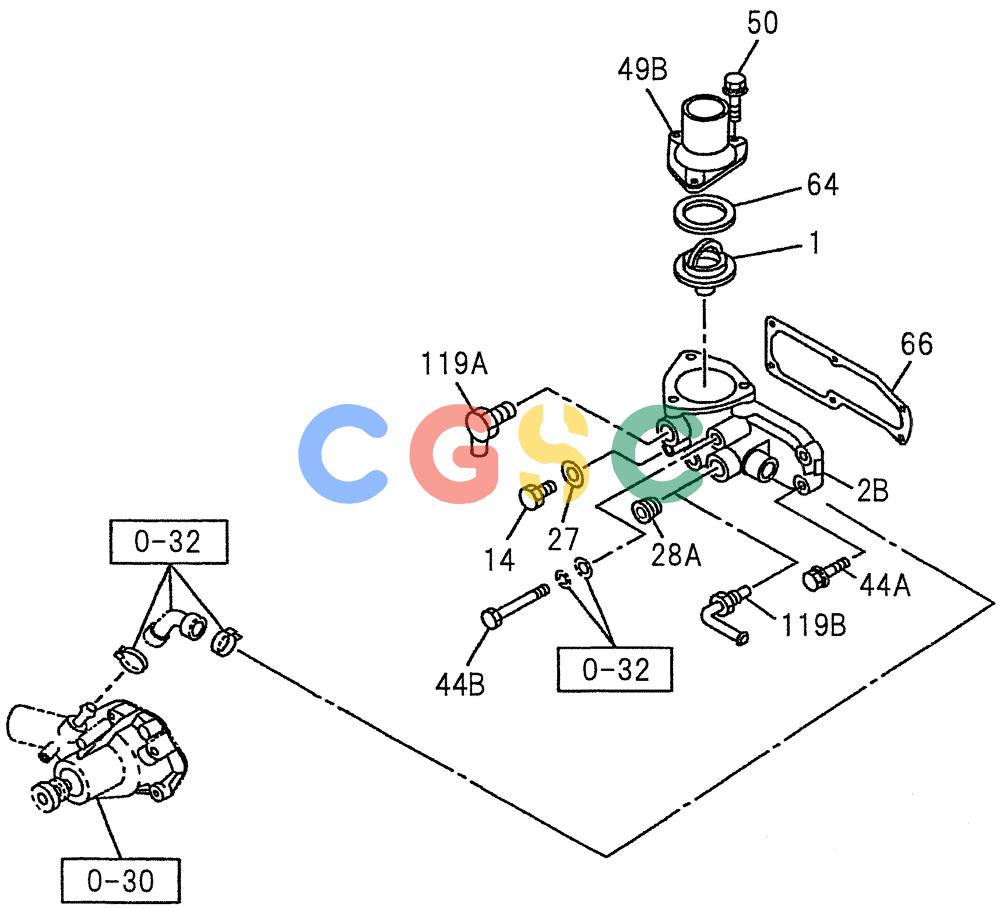

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (08-014) - THERMOSTAT AND HOUSING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
541 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI1137700700 | [1] | THERMOSTAT | KOBTHERMOSTAT (82"C) |
| 2B. | VI1137118042 | [1] | MOTOR HOUSING | KOBHOUSING; THERMOSTAT |
| 14. | VI9096610050 | [1] | PLUG | KOBplug; sw |
| 27. | VI9095714160 | [1] | SEAL | KOBGASKET; SW |
| 28 A. | VI5096050050 | [1] | PLUG | KOBPLUG; HTR (PT3/8) |
| 44 A. | VI0280810300 | [1] | BOLT; HSG TO HD (M10X30 FLANGE) | |
| 44 A. | VI0280810350 | [2] | BOLT; HSG TO HD (M10X35 FLANGE) | |
| 44 B. | VI0280810800 | [1] | BOLT; HSG TO HD (M10X80 FLANGE) | |
| 44 A. | VI0280810900 | [2] | BOLT; HSG TO HD (M10X90 FLANGE) | |
| 49 B. | VI8971380032 | [1] | PIPE | KOBPIPE; WATER OUTLET |
| 50. | VI0280808220 | [3] | BOLT; OUTLET PIPE (M8X22 FLANGE) | |
| 64. | VI1137430160 | [1] | SEAL | KOBGASKET; OUTLET PIPE TO HSG Superseded by part number: 289204A1 |
| 66. | VI8972357891 | [1] | GASKET | KOBGASKET; THERMOSTAT HSG, Start Year: 01-JAN-01 Superseded by part number: VI8972357892 |
| 119 A. | VI8972045090 | [1] | PIPE | KOBPIPE; HTR FEED |
| 119 B. | VI8972045130 | [1] | PIPE | KOBPIPE; HTR RETURN |
