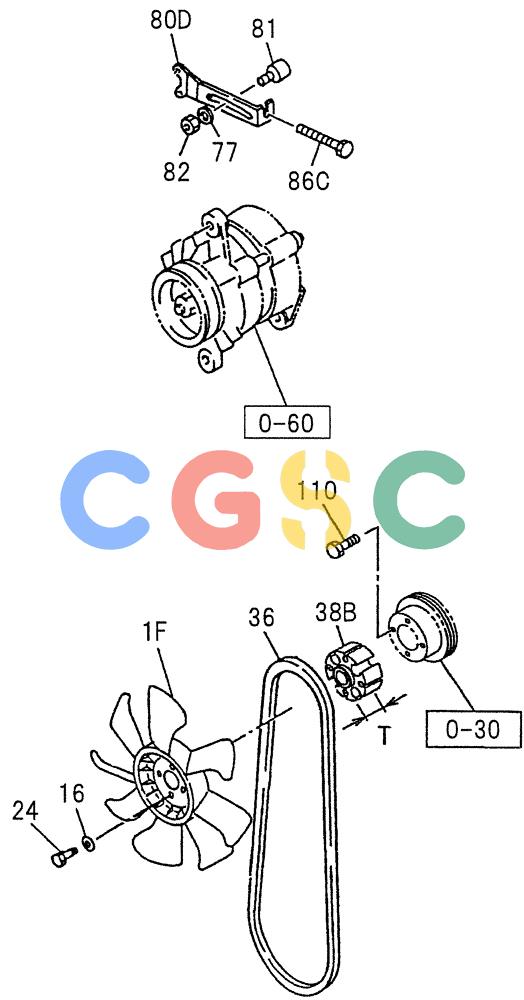

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (08-016) - FAN AND FAN BELT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
524 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1F. | VI8971615990 | [1] | FAN | KOBFAN; COOLING(D=550-8 SUCT) |
| 16. | VI9091606080 | [4] | WASHER | KOBWASHER; PL,COOLING FAN |
| 24. | VI0500408800 | [4] | BOLT | KOBBOLT; FAN (M8X80 W/LK WASHER) |
| 36. | VI1136712830 | [1] | V-BELT | KOBBELT; COOLING FAN (2 PIECES SET L=1226) Superseded by part number: VAME034971 |
| 38B. | VI1136420580 | [1] | SPACER | KOBSPACER; FAN (T=56.0), TCY ONLY, Years: 01-JUL-99-01-NOV-99 |
| 38B. | VI1136420630 | [1] | SPACER | KOBSPACER; FAN (T=66.0) |
| 77. | VI9091647120 | [1] | WASHER | KOBWASHER; PL,GEN TO ADJ PLATE Superseded by part number: VI0916147120 |
| 80D. | VI1136741192 | [1] | ADJUSTING PLATE | KOBPLATE; ADJ |
| 81. | VI1136741600 | [1] | SLIDE | KOBPIECE; SLIDING |
| 82. | VI0911501120 | [1] | NUT | KOBNUT; ADJ PLATE |
| 86C. | VI1090091131 | [1] | BOLT | KOBBOLT; ADJ (M10X135) |
| 110. | VI9034906100 | [2] | SCREW; PULLEY (M6X10) | |
