| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

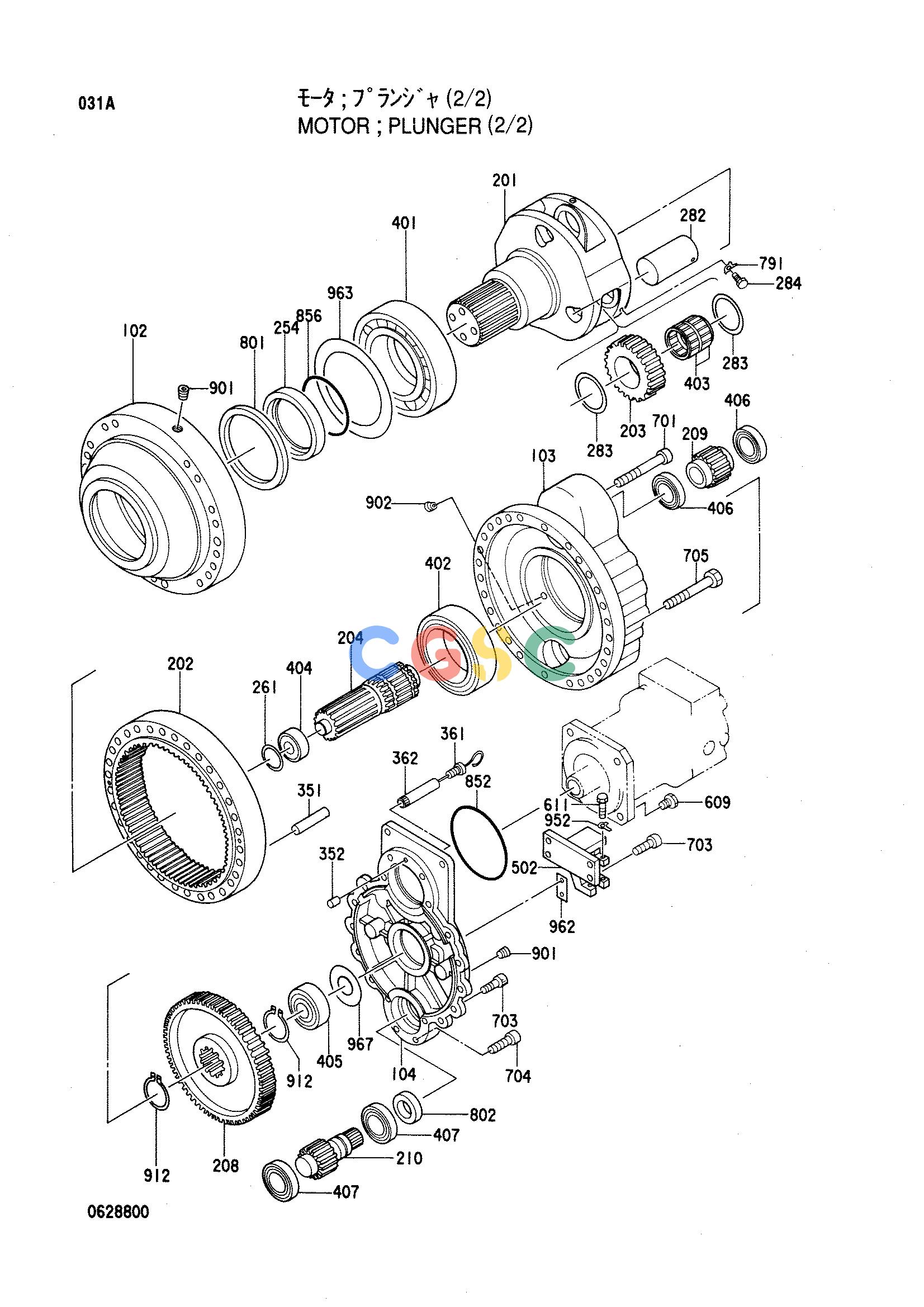

| 4312837 | [1] | MOTOR;PLUNGER | 0628800 This PART NO. consists of all parts shown in MOTOR;PLUNGER (1/2) to (2/2). | |
| 102. | 0628801 | [1] | CASING | |
| 103. | 0628802 | [1] | CASING | |
| 104. | 0628803 | [1] | CASING | |
| 201. | 0253203 | [1] | SHAFT | |
| 202. | 0628804 | [1] | GEAR;RING | |
| 203. | 0253205 | [3] | GEAR;PLANETARY | |
| 204. | 0253206 | [1] | GEAR;SUN | |
| 208. | 0628805 | [1] | GEAR | |
| 209. | 0628806 | [1] | PINION | |
| 210. | 0628807 | [1] | PINION | |
| 254. | 0155708 | [1] | RING;SEAL | |
| 261. | 0147205 | [1] | SPACER | |
| 282. | 0253209 | [3] | PIN | |
| 283. | 4031165 | [6] | PLATE;THRUST | |
| 284. | 4031166 | [3] | BOLT;SETTING | |
| 351. | 0628808 | [2] | PIN;KNOCK | |
| 352. | 0111519 | [1] | PIN | |
| 361. | 0628809 | [1] | BAR | |
| 362. | 0628810 | [1] | PIPE | |
| 401. | 0628811 | [1] | BRG. | |
| 402. | 0251808 | [1] | BRG. | |
| 403. | 0253212 | [6] | CAGE | |
| 404. | 0116419 | [1] | BRG. | |
| 405. | 0251809 | [1] | BRG. | |
| 406. | 0628812 | [2] | BRG.;BALL | |
| 407. | 0628813 | [2] | BRG.;BALL | |
| 609. | 0251811 | [4] | BOLT | |
| 701. | 0347004 | [2] | BOLT;SOCKET | |
| 703. | M341236 | [14] | BOLT;SOCKET | |
| 704. | 0131103 | [4] | BOLT;SOCKET | |
| 705. | 0628814 | [6] | BOLT | |
| 791. | 0116623 | [3] | WASHER | |
| 801. | 4039279 | [1] | SEAL;OIL | |
| 802. | 0628815 | [1] | SEAL;OIL | |
| 852. | 0101718 | [1] | O-RING | |
| 856. | A811115 | [1] | O-RING | |
| 901. | 0147210 | [2] | PLUG | |
| 902. | 0117122 | [1] | PLUG | |
| 912. | 954442 | [2] | RING;RETAINING | |
| 963. | 0155712 | [1] | SHIM | |
| 967. | 0116428 | [1] | SHIM |
