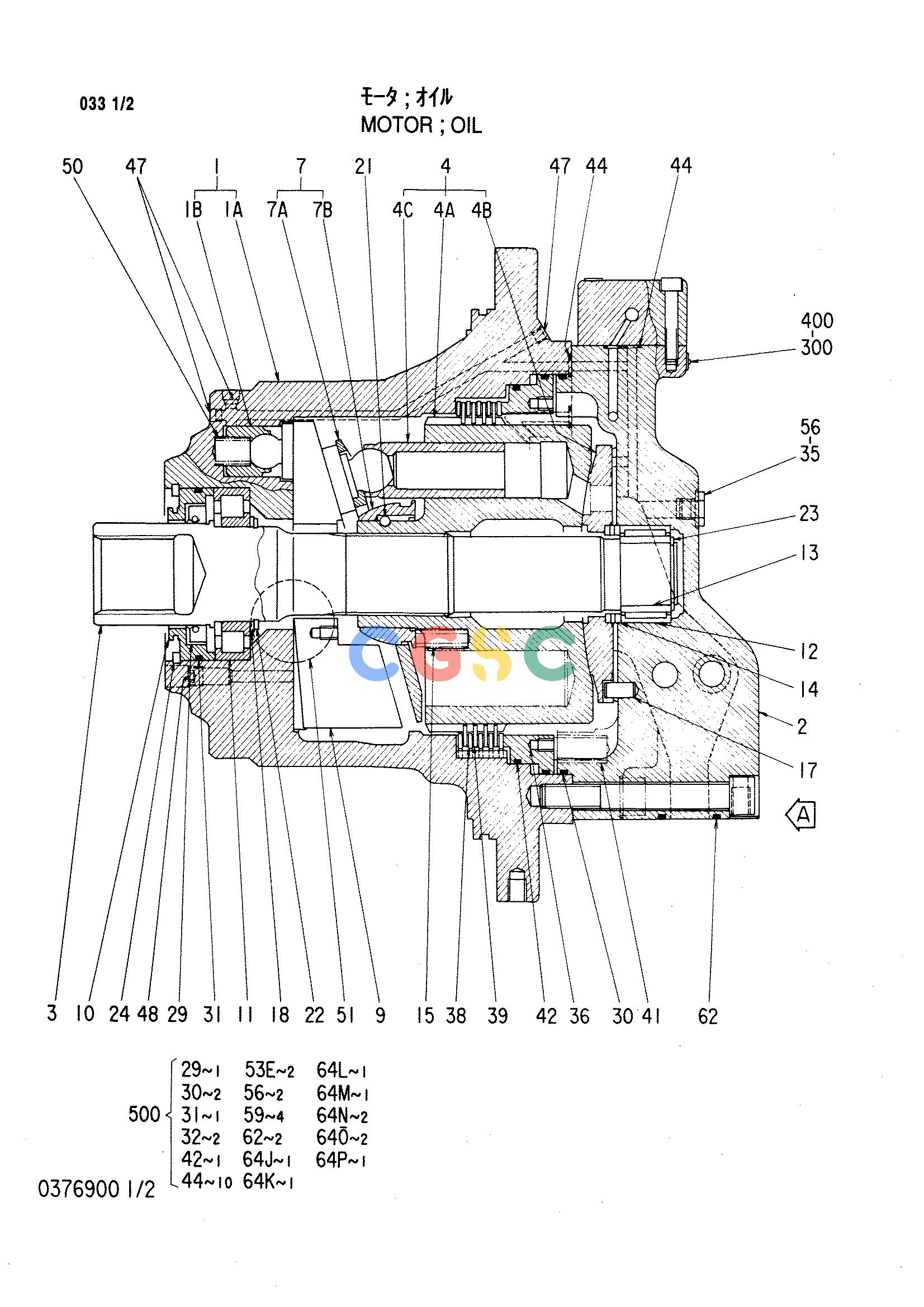

日立零件查询（CX1000）MOTOR;OIL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
934 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4249072 | [1] | MOTOR | 0376900 |
| 1. | 0376901 | [1] | CASE ASS'Y | |
| 1A. | +++++++ | [1] | CASE | |
| 1B. | +++++++ | [4] | PISTON | |
| 2. | 0352202 | [1] | COVER | |
| 3. | 0376902 | [1] | SHAFT | |
| 4. | 0376903 | [1] | BLOCK;CYL. ASS'Y | |
| 4A. | +++++++ | [1] | BLOCK;CYL. | |
| 4B. | +++++++ | [1] | PLATE | |
| 4C. | +++++++ | [9] | PISTON | |
| 7. | 0352205 | [1] | PLATE ASS'Y | |
| 7A. | +++++++ | [1] | PLATE | |
| 7B. | +++++++ | [1] | HOLDER | |
| 9. | 0376904 | [1] | PLATE | |
| 10. | 0376905 | [1] | CASE | |
| 11. | 0376906 | [1] | BRG.;ROLLER | |
| 12. | 0352209 | [1] | BRG.;NEEDLE | |
| 13. | 0352210 | [1] | RACE;INNER | |
| 14. | 0352211 | [1] | COLLAR | |
| 15. | 0352212 | [9] | SPRING | |
| 17. | 0352213 | [1] | PIN | |
| 18. | 0352214 | [1] | WASHER | |
| 21. | 0224920 | [1] | BALL;STEEL | |
| 22. | 0352215 | [1] | RING;RETAINING | |
| 23. | 0352216 | [1] | RING;RETAINING | |
| 24. | 0311317 | [1] | RING;RETAINING | |
| 25. | 0288618 | [8] | BOLT;SOCKET | |
| 26. | 0262602 | [1] | BOLT;SOCKET | |
| 27. | 0352217 | [2] | PLUG | |
| 29. | 0376907 | [1] | SEAL;OIL | |
| 30. | 0352219 | [2] | O-RING | |
| 31. | A811105 | [1] | O-RING | |
| 32. | 4506418 | [2] | O-RING | |
| 35. | 0311319 | [2] | PLUG | |
| 36. | 0352220 | [1] | PISTON | |
| 38. | 0352221 | [5] | PLATE;FRICTION | |
| 39. | 0352222 | [4] | PLATE;DISC | |
| 41. | 0376908 | [10] | SPRING | |
| 42. | 0352224 | [1] | O-RING | |
| 44. | 4506320 | [10] | O-RING | |
| 45. | 0310024 | [2] | PLUG | |
| 47. | 0352225 | [6] | PLUG | |
| 48. | 94-2011 | [6] | PLUG | |
| 50. | 0352226 | [4] | SPRING | |
| 51. | 0352227 | [2] | BALL;STEEL | |
| 53. | 0352228 | [1] | VALVE ASS'Y | |
| 53A. | +++++++ | [1] | BODY | |
| 53B. | +++++++ | [2] | VALVE | |
| 53C. | +++++++ | [2] | SPRING | |
| 53D. | +++++++ | [2] | PLUG | |
| 53E. | 4506424 | [2] | O-RING | |
| 53F. | +++++++ | [6] | BOLT;SOCKET | |
| 56. | 957366 | [2] | O-RING | |
| 58. | 0311336 | [2] | PLUG | |
| 59. | 4509180 | [4] | O-RING | |
| 62. | 984614 | [2] | O-RING | |
| 64. | 0376909 | [2] | VALVE;RELIEF ASS'Y | |
| 64A. | +++++++ | [1] | SEAT | |
| 64B. | +++++++ | [1] | HOUSING | |
| 64C. | +++++++ | [1] | POPPET | |
| 64D. | +++++++ | [1] | SEAT;SPRING | |
| 64E. | +++++++ | [1] | SPRING | |
| 64F. | +++++++ | [1] | PLUG | |
| 64G. | +++++++ | [1] | GUIDE;SPRING | |
| 64H. | +++++++ | [1] | SCREW;SET | |
| 64I. | +++++++ | [1] | NUT;LOCK | |
| 64J. | 4506418 | [1] | O-RING | |
| 64K. | 4506420 | [1] | O-RING | |
| 64L. | 4506412 | [1] | O-RING | |
| 64M. | 0111715 | [1] | O-RING | |
| 64N. | 4033725 | [2] | RING;BACK-UP | |
| 64O. | 4027959 | [2] | RING;BACK-UP | |
| 64P. | 4027963 | [1] | RING;BACK-UP | |
| 300. | +++++++ | [1] | NAME-PLATE | |
| 400. | +++++++ | [2] | SCREW;DRIVE | |
| 500. | 0376910 | [1] | REPAIR KIT | |
