沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BTransmissionsHydraulic TransmissionEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
964 次

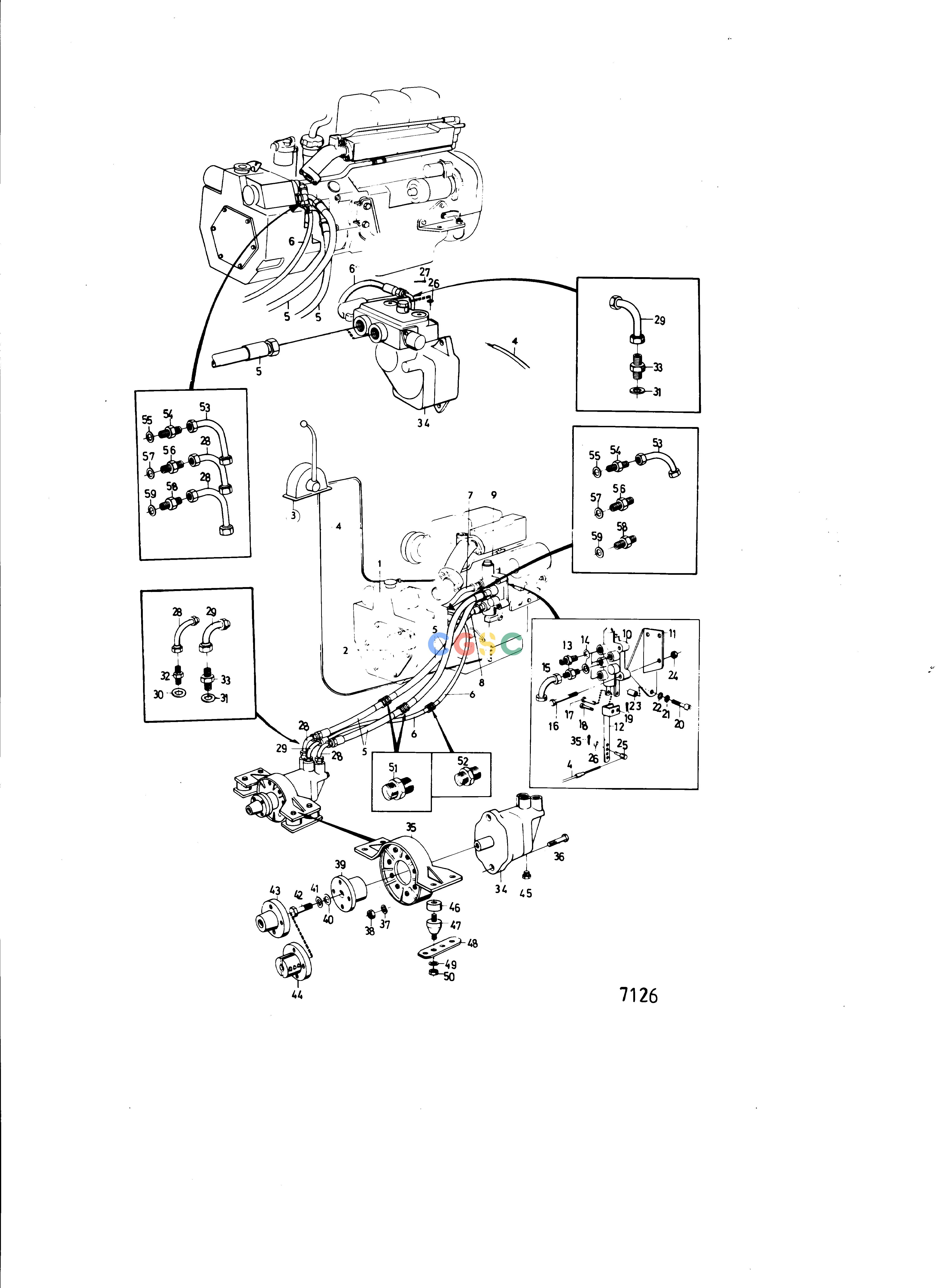

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833515
|
[1] |
Oil tank
|
See group 4A
|
| 2. |
833519
|
[1] |
Hydraulic pump
|
See group 4A
|
| 3. |
|
|
|
See group 9
|
| 4. |
|
|
|
See group 9
|
| 5. |
833533
|
[2] |
Hydraulic hose
|
Alt, L=2000mm
|
| 5. |
833534
|
[2] |
Hydraulic hose
|
Alt, L=3000mm
|
| 5. |
|
|
|
Alt, L=4000mm
|
| 6. |
833530
|
[1] |
Hydraulic hose
|
Alt, L=2000mm
|
| 6. |
833536
|
[1] |
Hydraulic hose
|
Alt, L=3000mm
|
| 6. |
833537
|
[1] |
Hydraulic hose
|
Alt, L=4000mm
|
| 7. |
833529
|
[1] |
Tube
|
|
| 8. |
833532
|
[1] |
Tube
|
|
| 9. |
833517
|
[1] |
Tube
|
See group 2B
|
| 10. |
833525
|
[1] |
Direction valve
|
|
| 11. |
833526
|
[1] |
Bracket
|
|
| 12. |
833527
|
[1] |
Lever
|
|
| 13. |
396025
|
[4] |
Nipple
|
|
| 14. |
957184
|
[4] |
Gasket
|
|
| 15. |
833703
|
[1] |
Pipe elbow
|
|
| 16. |
955326
|
[3] |
Hexagon screw
|
|
| 17. |
913125
|
[1] |
Clevis pin
|
|
| 18. |
|
|
|
|
| 19. |
907824
|
[2] |
Split pin
|
|
| 20. |
940142
|
[3] |
Hexagon screw
|
|
| 21. |
941907
|
[3] |
Spring washer
|
|
| 22. |
955894
|
[3] |
Washer
|
|
| 23. |
820506
|
[3] |
Spacer sleeve
|
|
| 24. |
963107
|
[3] |
Lock nut
|
|
| 25. |
833462
|
[1] |
Cube
|
|
| 26. |
955892
|
[1] |
Washer
|
|
| 27. |
907834
|
[1] |
Split pin
|
|
| 28. |
396075
|
[2] |
Pipe elbow
|
|
| 29. |
396063
|
[1] |
Pipe elbow
|
|
| 30. |
836169
|
[2] |
Gasket
|
|
| 31. |
943908
|
[1] |
Gasket
|
|
| 32. |
827844
|
[2] |
Nipple
|
|
| 33. |
396033
|
[1] |
Nipple
|
|
| 34. |
827673
|
[1] |
Hydraulic motor
|
|
| 34. |
|
|
|
|
| 35. |
827904
|
[1] |
Anchorage
|
|
| 36. |
955346
|
[2] |
Hexagon screw
|
|
| 37. |
955897
|
[2] |
Washer
|
|
| 38. |
955784
|
[2] |
Hexagon nut
|
|
| 39. |
827905
|
[1] |
Clutch flange
|
|
| 40. |
827906
|
[1] |
Washer
|
|
| 41. |
940280
|
[1] |
Spring washer
|
|
| 42. |
955339
|
[1] |
Hexagon screw
|
|
| 43. |
806384
|
[1] |
Clutch flange
|
Alt, see group 4A
|
| 44. |
827924
|
[1] |
Clamp coupling
|
Alt, see group 4A
|
| 44. |
827927
|
[1] |
Clamp coupling
|
Alt, see group 4A
|
| 44. |
827958
|
[1] |
Instrument panel
|
Alt, see group 4A
|
| 45. |
914392
|
[1] |
Plug
|
|
| 46. |
807228
|
[4] |
Sleeve
|
|
| 47. |
833720
|
[4] |
Rubber cushion
|
|
| 48. |
827907
|
[2] |
Attaching plate
|
|
| 49. |
940280
|
[8] |
Spring washer
|
|
| 50. |
955850
|
[8] |
Hexagon nut
|
|
| 51. |
396005
|
[1] |
Nipple
|
|
| 52. |
396003
|
[1] |
Nipple
|
|
| 53. |
396063
|
[1] |
Pipe elbow
|
|
| 54. |
396013
|
[1] |
Nipple
|
|
| 55. |
948883
|
[1] |
Gasket
|
|
| 56. |
396015
|
[1] |
Nipple
|
|
| 57. |
948885
|
[1] |
Gasket
|
|
| 58. |
833513
|
[1] |
Nipple
|
|
| 59. |
944252
|
[1] |
Gasket
|
|
