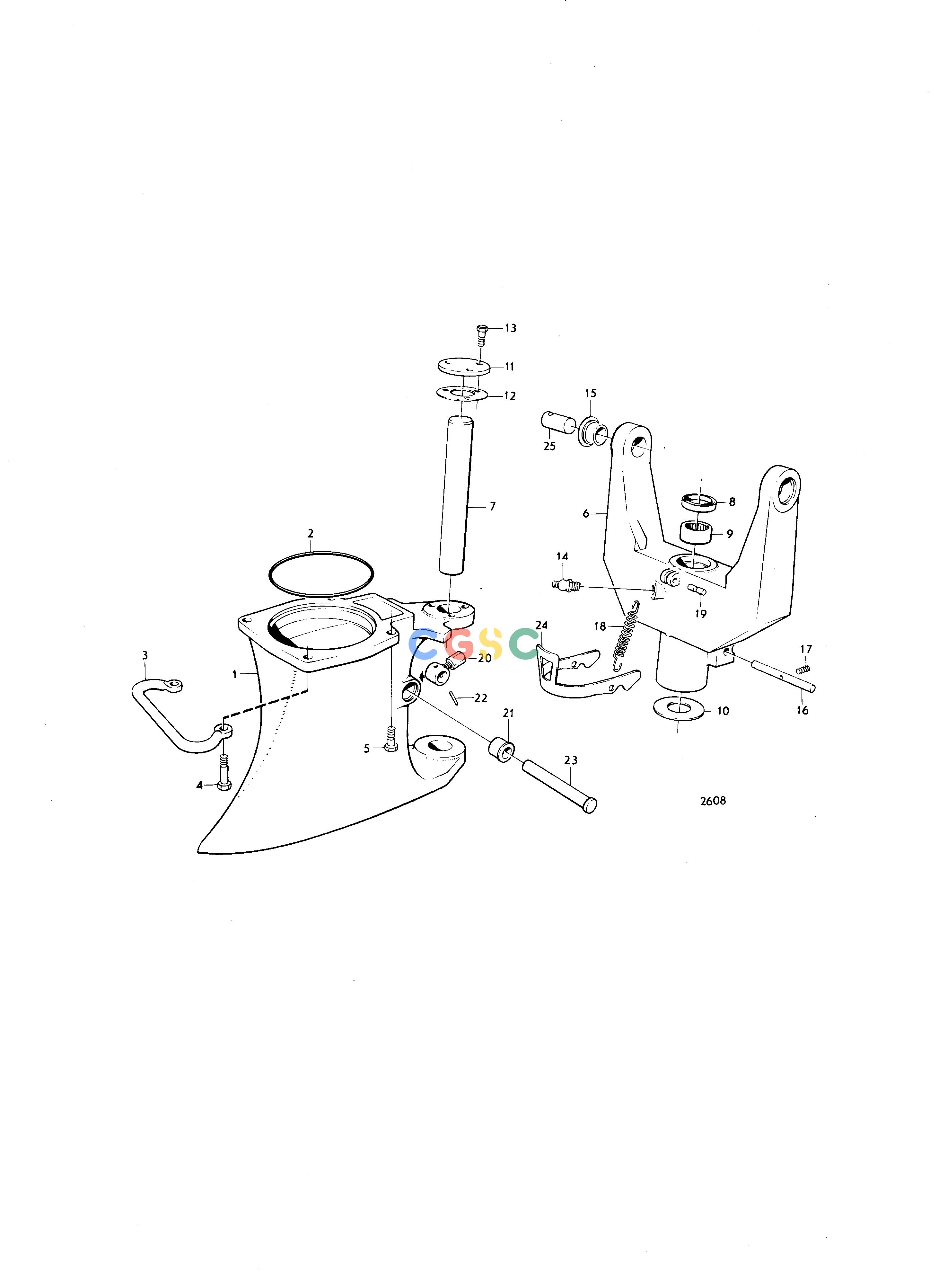

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BTransmissionsIntermediate Housing AQ Drive Unit 100BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
309 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
832125
|
[1] |
Intermediate housing
|
|
| 2. |
925263
|
[1] |
O-ring
|
|
| 3. |
804224
|
[1] |
Handle
|
|
| 4. |
191559
|
[2] |
Screw
|
|
| 5. |
940174
|
[2] |
Hexagon screw
|
|
| 6. |
832144
|
[1] |
Suspension fork
|
|
| 7. |
804228
|
[1] |
Steering bearing sha
|
|
| 8. |
804209
|
[2] |
Sealing ring
|
|
| 9. |
181289
|
[2] |
Needle bearing
|
|
| 10. |
804246
|
[2] |
Washer
|
|
| 11. |
804223
|
[1] |
Washer
|
|
| 12. |
804270
|
[1] |
Gasket
|
|
| 13. |
940168
|
[3] |
Hexagon screw
|
|
| 14. |
940194
|
[1] |
Lubricating nipple
|
|
| 15. |
876278
|
[2] |
Bushing kit
|
|
| 16. |
804248
|
[1] |
Shaft
|
|
| 17. |
804278
|
[1] |
Set screw
|
|
| 18. |
804274
|
[1] |
Tension spring
|
|
| 19. |
804264
|
[1] |
Pin
|
|
| 20. |
804260
|
[1] |
Reverse lock
|
|
| 21. |
804254
|
[2] |
Bushing
|
|
| 22. |
804263
|
[1] |
Clamping pin
|
|
| 23. |
804253
|
[1] |
Shaft
|
|
| 24. |
804366
|
[1] |
Reverse tilt inhibit
|
|
| 25. |
814021
|
[2] |
Pivot pin
|
See group 4A
|
