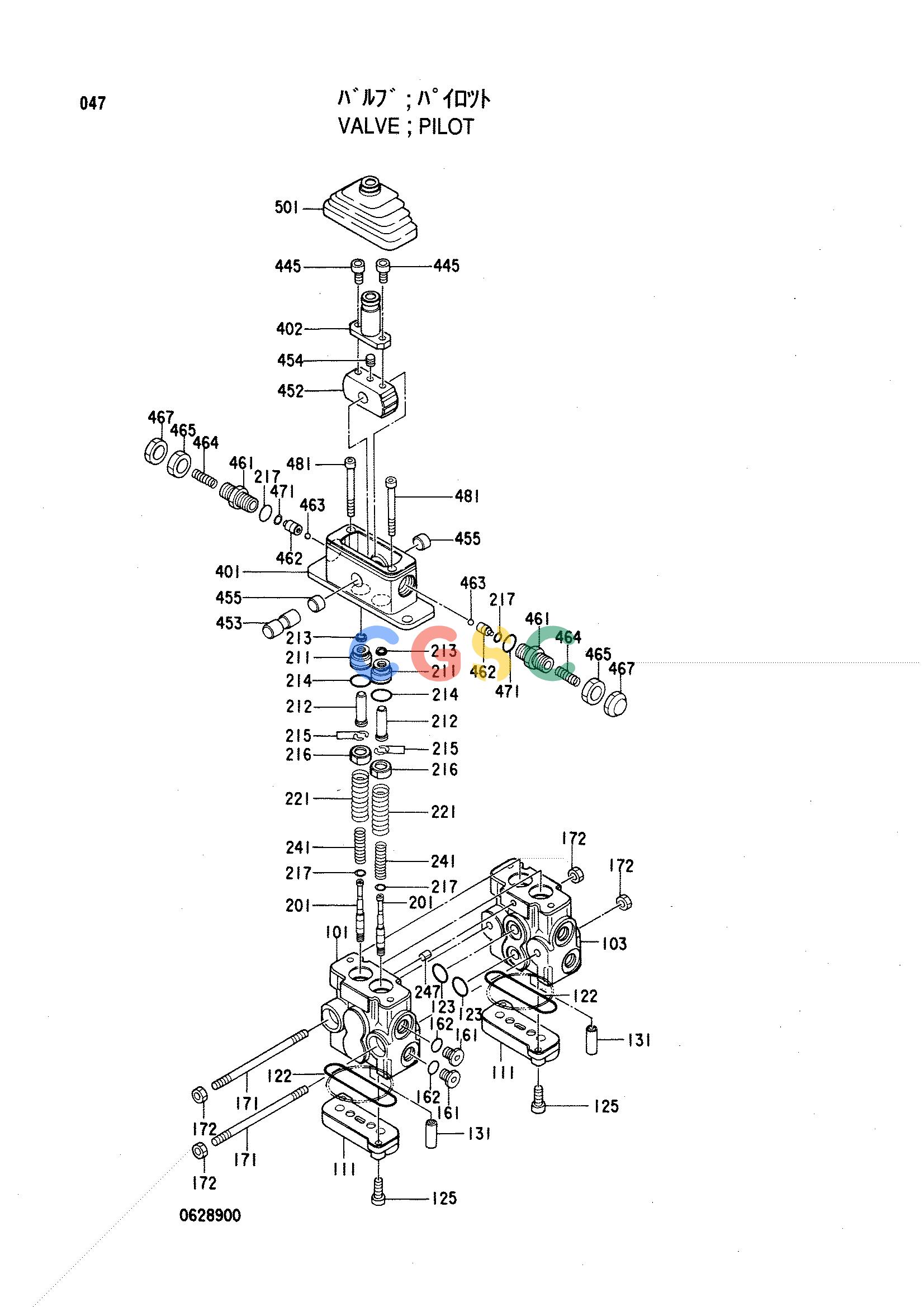

日立零件查询（CX1000）VALVE;PILOT Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
1007 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4310203 | [1] | VALVE;PILOT | 0628900 |
| 101. | 0628901 | [1] | CASING | |
| 103. | 0628902 | [1] | CASING | |
| 111. | 0628903 | [2] | PLATE | |
| 122. | A811060 | [2] | O-RING | |
| 123. | 4506418 | [2] | O-RING | |
| 125. | M340820 | [4] | BOLT;SOCKET | |
| 131. | 0628904 | [2] | BUSHING | |
| 161. | 0210719 | [2] | PLUG | |
| 162. | 957366 | [2] | O-RING | |
| 171. | 0628905 | [2] | BOLT | |
| 172. | 0100095 | [4] | NUT | |
| 201. | 0628906 | [4] | SPOOL | |
| 211. | 0629003 | [4] | PLUG | |
| 212. | 0628907 | [4] | ROD;PUSH | |
| 213. | 0628908 | [4] | SEAL | |
| 214. | 4506420 | [4] | O-RING | |
| 215. | 0428906 | [8] | WASHER | |
| 216. | 0628909 | [4] | SEAT;SPRING | |
| 217. | 0428907 | [12] | WASHER | |
| 221. | 0628910 | [4] | SPRING | |
| 241. | 0628911 | [4] | SPRING | |
| 247. | 4101345 | [1] | PIN;SPRING | |
| 401. | 0628912 | [2] | COVER | |
| 402. | 0628913 | [2] | LEVER | |
| 445. | 0134439 | [4] | BOLT | |
| 452. | 0628914 | [2] | DISK | |
| 453. | 0628915 | [2] | SHAFT;CAM | |
| 454. | 0628916 | [2] | SCREW;SET | |
| 455. | 0628917 | [4] | BUSHING | |
| 461. | 0628918 | [4] | PLUG | |
| 462. | 0628919 | [4] | HOLDER | |
| 463. | 0103316 | [4] | BALL | |
| 464. | 0628920 | [4] | SPRING | |
| 465. | 0628921 | [4] | NUT;LOCK | |
| 467. | 0628922 | [4] | NUT;ADJUSTING | |
| 471. | 954495 | [4] | O-RING | |
| 481. | 0103325 | [4] | BOLT;SOCKET | |
| 501. | 0628923 | [2] | BELLOWS | |
