日立零件查询（CX1000）VALVE;CONTROL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
489 次

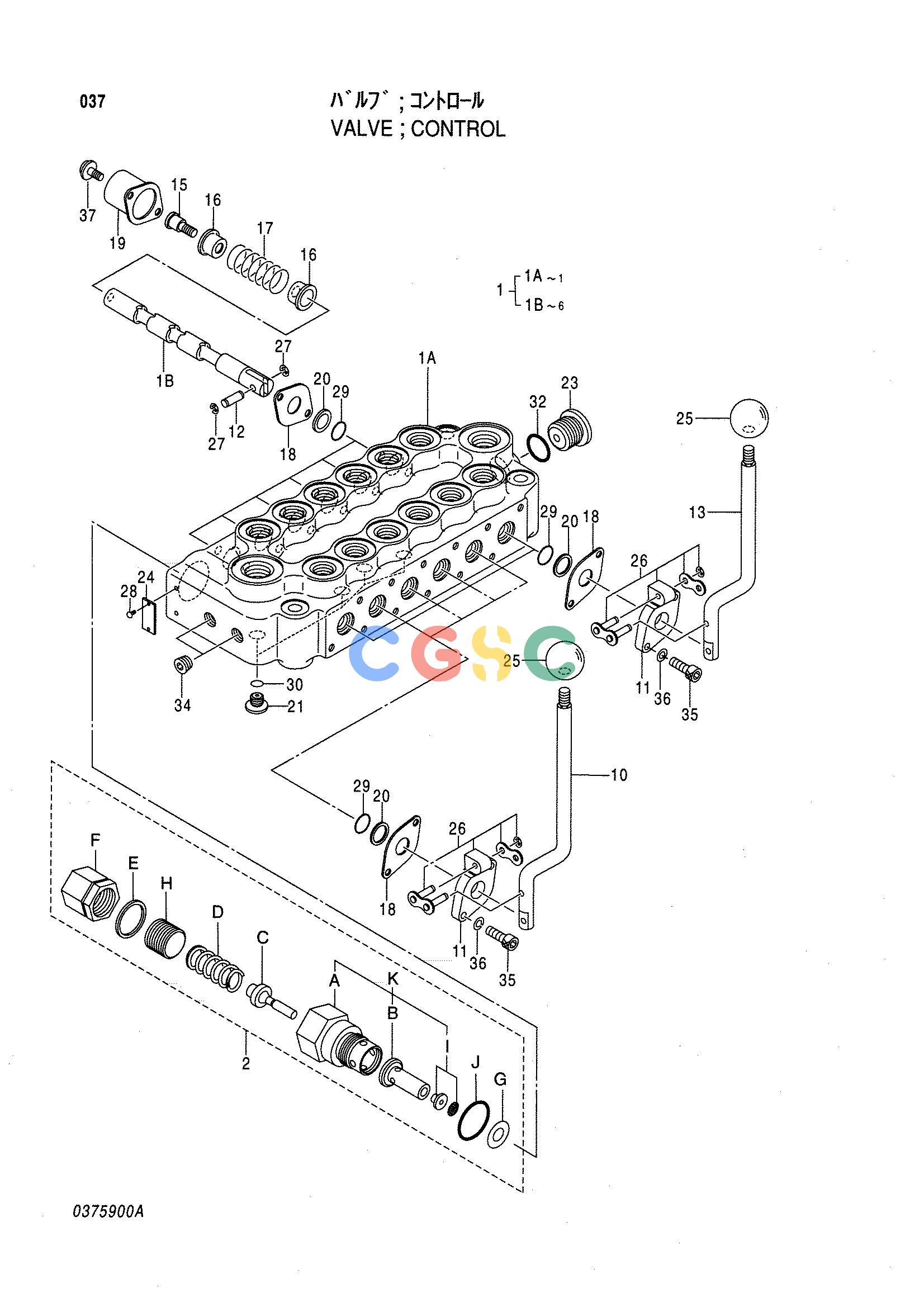

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4229309 | [1] | VALVE;CONTROL | 0375900A |
| 1. | 4195361 | [1] | BODY SUB ASS'Y | |
| 1A. | +++++++ | [1] | HOUSING | |
| 1B. | +++++++ | [6] | SPOOL | |
| 2. | 4194081 | [1] | RELIEF SUB ASS'Y | |
| 2A. | +++++++ | [1] | SLEEVE | |
| 2B. | +++++++ | [1] | SEAT | |
| 2C. | +++++++ | [1] | POPPET | |
| 2D. | +++++++ | [1] | SPRING | |
| 2E. | +++++++ | [1] | RING;GASKET | |
| 2F. | +++++++ | [1] | NUT;CAP | |
| 2G. | +++++++ | [1] | RING;GASKET | |
| 2H. | +++++++ | [1] | SCREW;ADJUSTING | |
| 2I. | +++++++ | [1] | PLUG | |
| 2J. | +++++++ | [1] | O-RING | |
| 2K. | +++++++ | [1] | HOUSING | |
| 10. | 0375903 | [4] | LEVER | |
| 11. | 0286204 | [6] | BRACKET;LEVER | |
| 12. | 0286205 | [6] | PIN | |
| 13. | 0375904 | [2] | LEVER | |
| 15. | 0286207 | [6] | END;SPOOL | |
| 16. | 0286208 | [12] | HOLDER;SPRING | |
| 17. | 0286209 | [6] | SPRING;COMPRES. | |
| 18. | 0286210 | [12] | HOLDER;SEAL | |
| 19. | 0286211 | [6] | COVER;SPRING | |
| 20. | 4027963 | [12] | RING;BACK-UP | |
| 21. | 0286212 | [4] | PLUG | |
| 23. | 0286213 | [1] | STOPPER | |
| 24. | +++++++ | [1] | NAME-PLATE | |
| 25. | 0286214 | [6] | GLIP | |
| 26. | 0286215 | [6] | JOINT;LINK | |
| 27. | 0286216 | [12] | RING;RETAINING | |
| 28. | 0208717 | [2] | SCREW;DRIVE | |
| 29. | 0302301 | [12] | O-RING | |
| 30. | 4506408 | [4] | O-RING | |
| 32. | 4506418 | [1] | O-RING | |
| 34. | 94-2011 | [2] | PLUG | |
| 35. | M340516 | [12] | BOLT | |
| 36. | A590905 | [12] | SPRING;WASHER | |
| 37. | M430513 | [12] | SCREW | |
