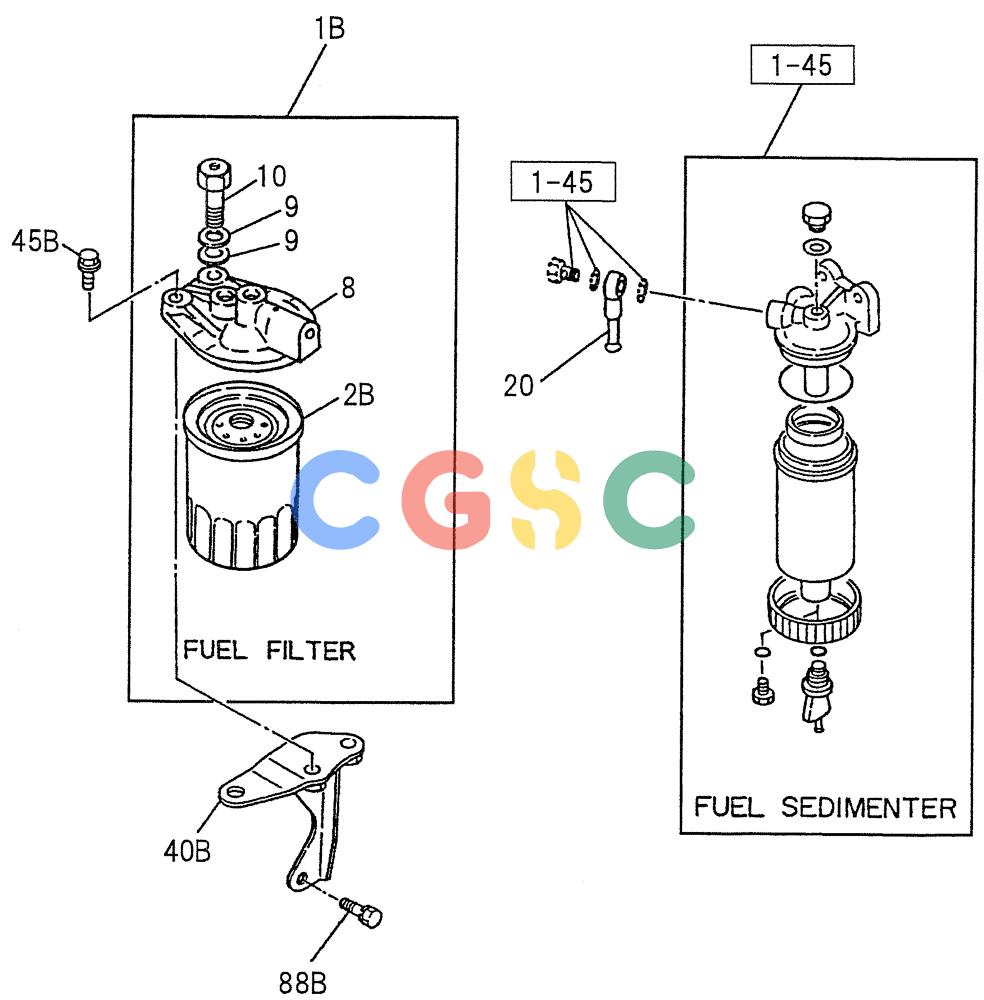

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (08-020[02]) - FUEL FILTER AND BRACKET New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
378 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1B. | VI8971798541 | [1] | FUEL FILTER | KOBFILTER ASM; FUEL |
| 2B. | VI8971725491 | [1] | ELEMENT | KOBEngine Fuel Filter -- ISUZU Engine Part Number Superseded by part number: YB02P00001-2 |
| 8. | VI8971798550 | [1] | COVER | KOBCOVER; FUEL FILTER Superseded by part number: 76615430 |
| 9. | VI1096300850 | [2] | GASKET | KOBGASKET; EYE JOINT (ID=14.2 OD=19.2) |
| 10. | VI1132600470 | [1] | REDUCER | KOBVALVE; OVERFLOW, FUEL FILTER |
| 20. | VI5154112231 | [2] | PIPE | KOBJOINT; EYE, FUEL FILTER |
| 40B. | VI5197550010 | [1] | BRACKET | KOBBRACKET; FUEL FILTER |
| 45B. | VI0286810300 | [2] | BOLT | KOBBOLT; FUEL FILTER (M10X30 FLANGE) |
| 54. | VI1094680021 | [1] | NUT | KOBNUT; CAP, OVERFLOW VLV |
| 69. | VI9099063251 | [2] | BOLT | KOBBOLT; EYE, FUEL FILTER (M14X29) Superseded by part number: 87596570 |
| 69. | VI5157590270 | [1] | BOLT | KOBBOLT; EYE,FUEL FILTER (M14X29), TCY ONLY, Start Year: 01-JUN-02 |
| 88B. | VI0280810200 | [2] | BOLT | KOBBOLT; BRKT,FUEL FILTER (M10X20 FLANGE) |
