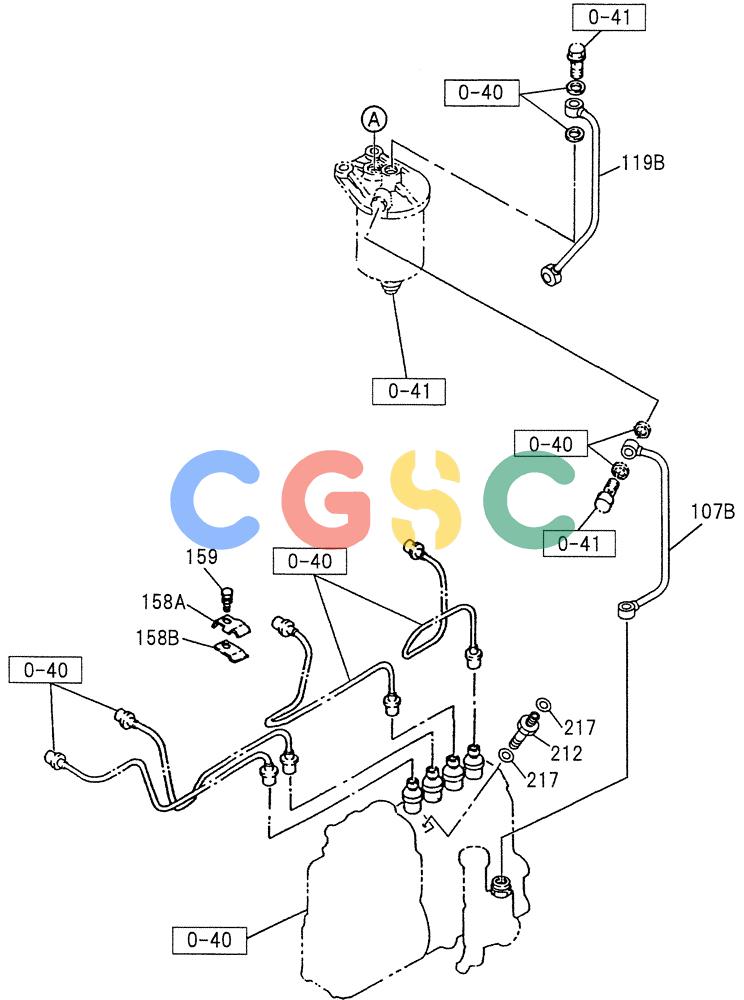

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (08-021) - FUEL PUMP AND PIPE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
846 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 158A. | VI5154190040 | [1] | CLIP | KOBCLIP; INJ PIPE TO INL MAN IF |
| 158B. | VI5154190051 | [1] | CLIP | KOBCLIP; INJ PIPE TO INL MAN IF |
| 159. | VI0501406160 | [1] | BOLT | KOBBOLT; CLIP (M6X16 W/LK & PL WASHER), Years: 01-NOV-89-01-JAN-04 |
| 159. | VI0286806160 | [1] | BOLT; CLIP (M6X16 FLANGE), Start Year: 01-FEB-04 | |
| 212. | VI8972254470 | [1] | VALVE | KOBVALVE; OVERFLOW Superseded by part number: 288836A1 |
| 217. | VI1096300850 | [2] | GASKET | KOBGASKET; OVERFLOW VLV (ID=14.2 OD=19.2) |
