日立零件查询（CX1000）CYL.;OIL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
274 次

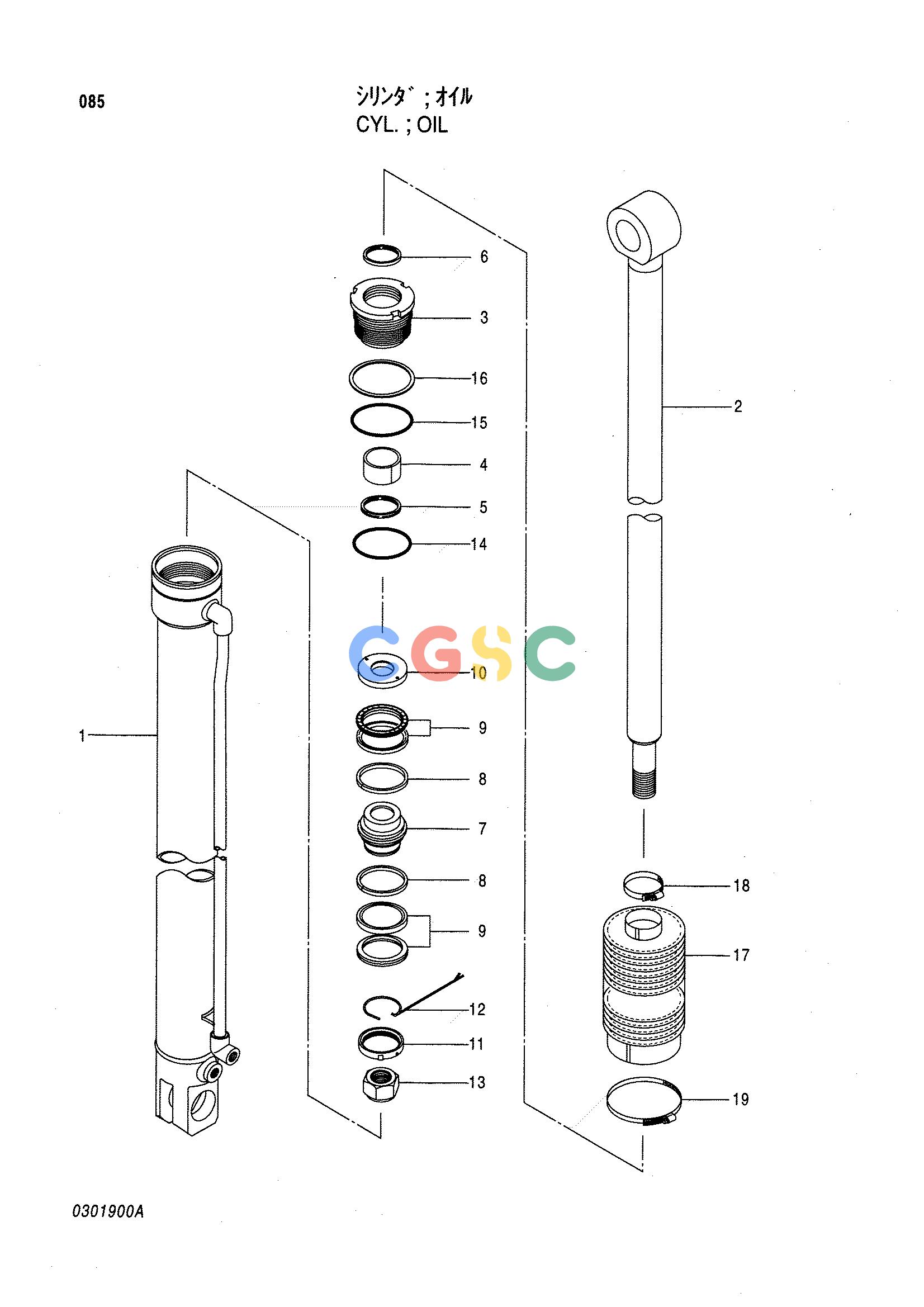

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4158225 | [1] | CYL.;OIL | 0301900A |
| 1. | 0301901 | [1] | TUBU;CYL. | |
| 2. | 0301902 | [1] | ROD;RISTON | |
| 3. | 0109603 | [1] | HEAD;CYL. | |
| 4. | 0301903 | [1] | HEAD;ROD | |
| 5. | 4038869 | [1] | U-RING | |
| 6. | 0109604 | [1] | RING | |
| 7. | 0301904 | [1] | PISTON | |
| 8. | 955118 | [2] | RING;PISTON | |
| 9. | 0301905 | [2] | U-RING ASS'Y | |
| 10. | 0301906 | [1] | HOLDER;U-RING | |
| 11. | 4000068 | [1] | HOLDER;U-RING | |
| 12. | 992697 | [1] | STOPPER | |
| 13. | 0109607 | [1] | NUT | |
| 14. | 4000074 | [1] | O-RING | |
| 15. | 0159408 | [1] | O-RING | |
| 16. | 4058995 | [1] | WASHER;LOCK | |
| 17. | 0301907 | [1] | BOOT | |
| 18. | 0286411 | [1] | BAND;BOOT | |
| 19. | 0286412 | [1] | BAND;BOOT | |
