日立零件查询（CX1000）CYL.;JACK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
593 次

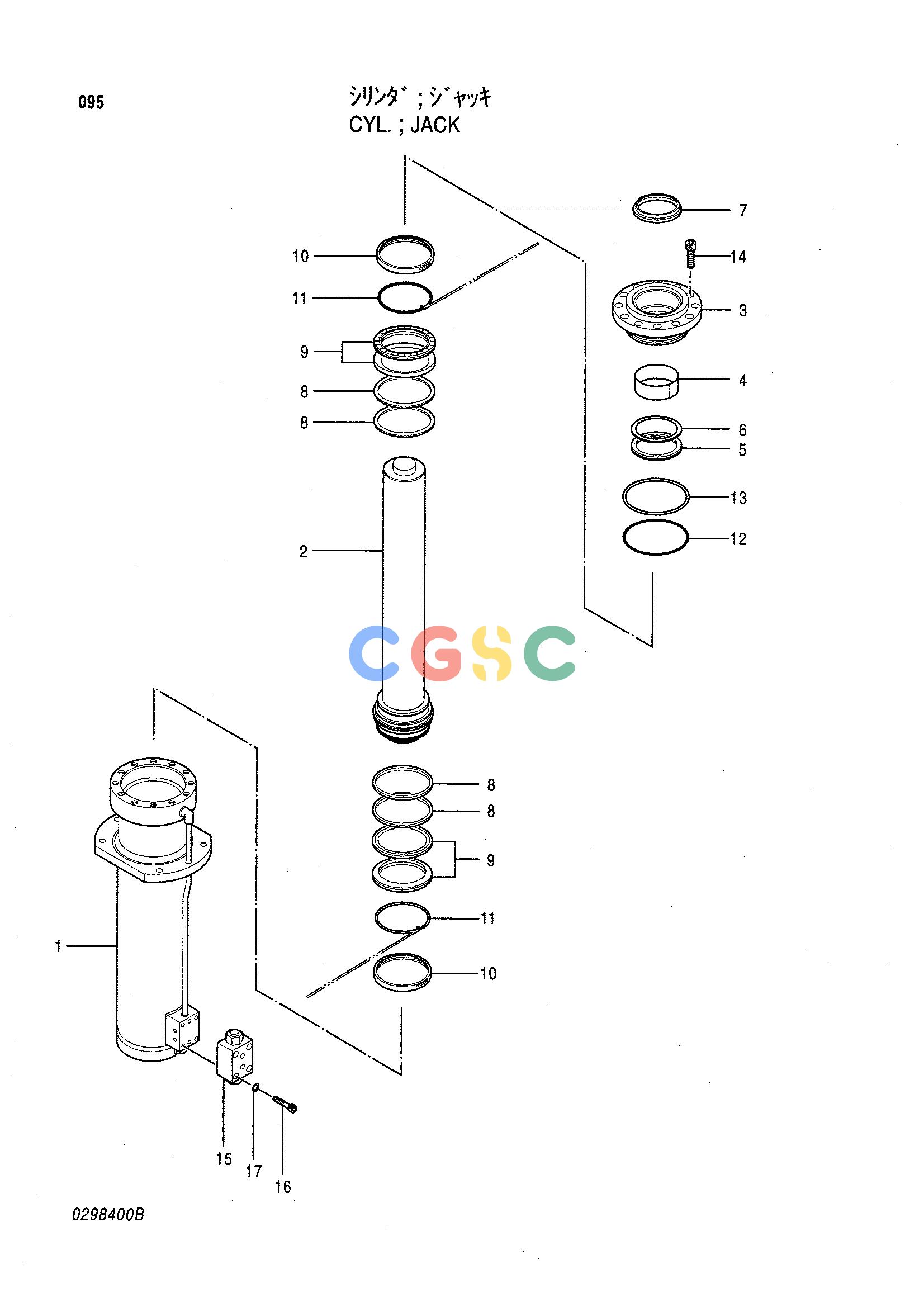

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4188681 | [1] | CYL.;JACK | 0298400B |
| 1. | 0298401 | [1] | TUBE;CYL. | |
| 2. | 0298402 | [1] | ROD;PISTON | |
| 3. | 0286303 | [1] | HEAD;CYL. | |
| 4. | 4505059 | [1] | BUSHING | |
| 5. | 4069701 | [1] | PACKING;U-RING | |
| 6. | 0237309 | [1] | RING;BACK-UP | |
| 7. | 4094812 | [1] | RING;WIPER | |
| 8. | 4501899 | [4] | RING;PISTON | |
| 9. | 4099010 | [2] | U-RING | |
| 10. | 0286305 | [2] | HOLDER;U-RING | |
| 11. | 0277904 | [2] | STOPPER | |
| 12. | 4035660 | [1] | O-RING | |
| 13. | 0286306 | [1] | RING;BACK-UP | |
| 14. | 0286307 | [12] | BOLT;SOCKET | |
| 15. | 0172505 | [1] | VALVE;CHECK | |
| 16. | 0151312 | [4] | BOLT;SOCKET | |
| 17. | A590910 | [4] | WASHER;SPRING | |
