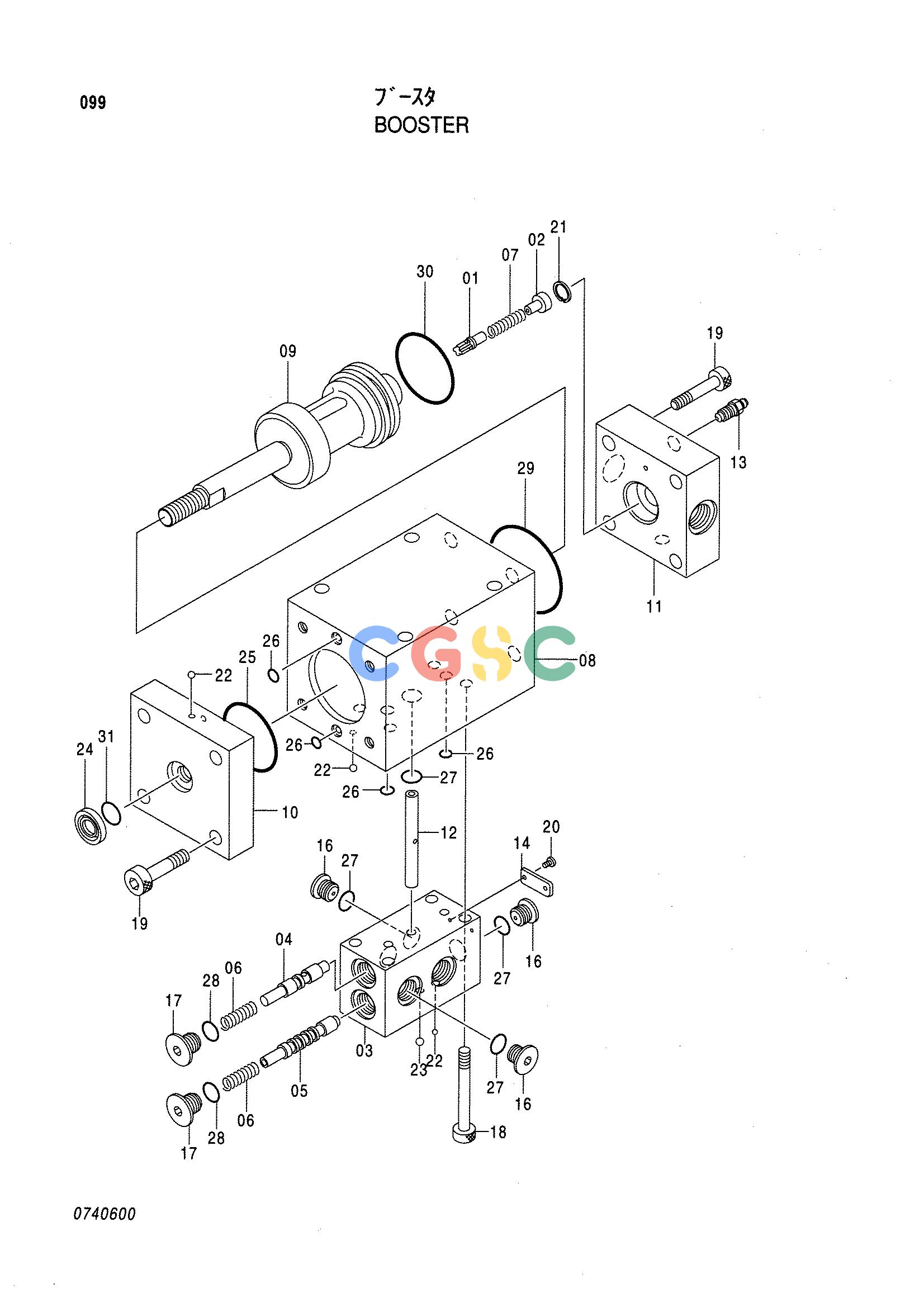

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4353782 | [1] | BOOSTER | 0740600 |
| 01. | 0624601 | [1] | POPPET | |
| 02. | 0624602 | [1] | STOPPER | |
| 03. | +++++++ | [1] | BODY | |
| 04. | +++++++ | [1] | SPOOL | |
| 05. | +++++++ | [1] | SPOOL | |
| 06. | 0624608 | [2] | SPRING | |
| 07. | 0703801 | [1] | SPRING | |
| 08. | +++++++ | [1] | CYL. | |
| 09. | +++++++ | [1] | PISTON | |
| 10. | 0740601 | [1] | COVER | |
| 11. | 0740602 | [1] | COVER | |
| 12. | 0740603 | [1] | STOPPER | |
| 13. | 0307705 | [1] | BLEEDER;SCREW | |
| 14. | +++++++ | [1] | NAME-PLATE | |
| 16. | 0314205 | [3] | PLUG | |
| 17. | 0309805 | [2] | PLUG | |
| 18. | 0624609 | [4] | BOLT;SOCKET | |
| 19. | 0349507 | [8] | BOLT;SOCKET | |
| 20. | 0208717 | [2] | SCREW;DRIVE | |
| 21. | 0357303 | [1] | RING;RETAINING | |
| 22. | +++++++ | [3] | BALL;STEEL | |
| 23. | +++++++ | [1] | BALL;STEEL | |
| 24. | +++++++ | [1] | SEAL;OIL | |
| 25. | 4140440 | [1] | O-RING | |
| 26. | 4506408 | [4] | O-RING | |
| 27. | 957366 | [4] | O-RING | |
| 28. | 4509180 | [2] | O-RING | |
| 29. | A811075 | [1] | O-RING | |
| 30. | 4153127 | [1] | O-RING | |
| 31. | 0624612 | [1] | SEAL | |
