| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

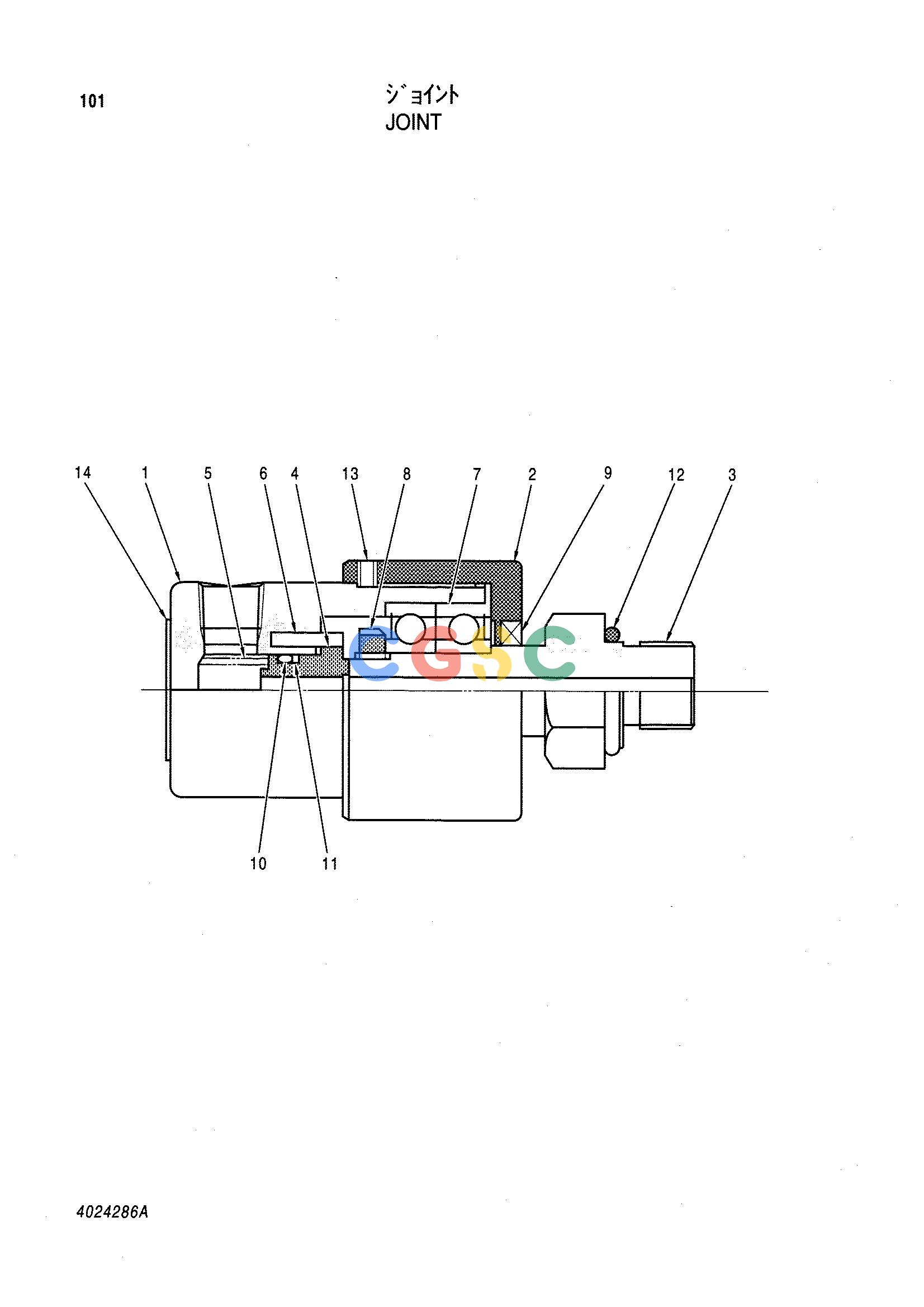

| 4024286 | [1] | JOINT | 4024286A | |
| 1. | 4348176 | [1] | CASING | |
| 2. | 4348177 | [1] | CAP | |
| 3. | 4348179 | [1] | SPINDLE | |
| 4. | 4348183 | [1] | SPOOL | |
| 5. | 4348184 | [1] | SPRING | |
| 6. | 4348185 | [1] | PIN | |
| 7. | 4160798 | [2] | BRG.;BALL | |
| 8. | 4160717 | [1] | NUT;BRG. | |
| 9. | 4348194 | [1] | SEAL;OIL | |
| 10. | 4348196 | [1] | O-RING | |
| 11. | 4348198 | [1] | RING;BACK-UP | |
| 12. | 4348197 | [1] | O-RING | |
| 13. | M450408 | [1] | SCREW;SET | |
| 14. | 4348199 | [1] | NAME-PLATE |
