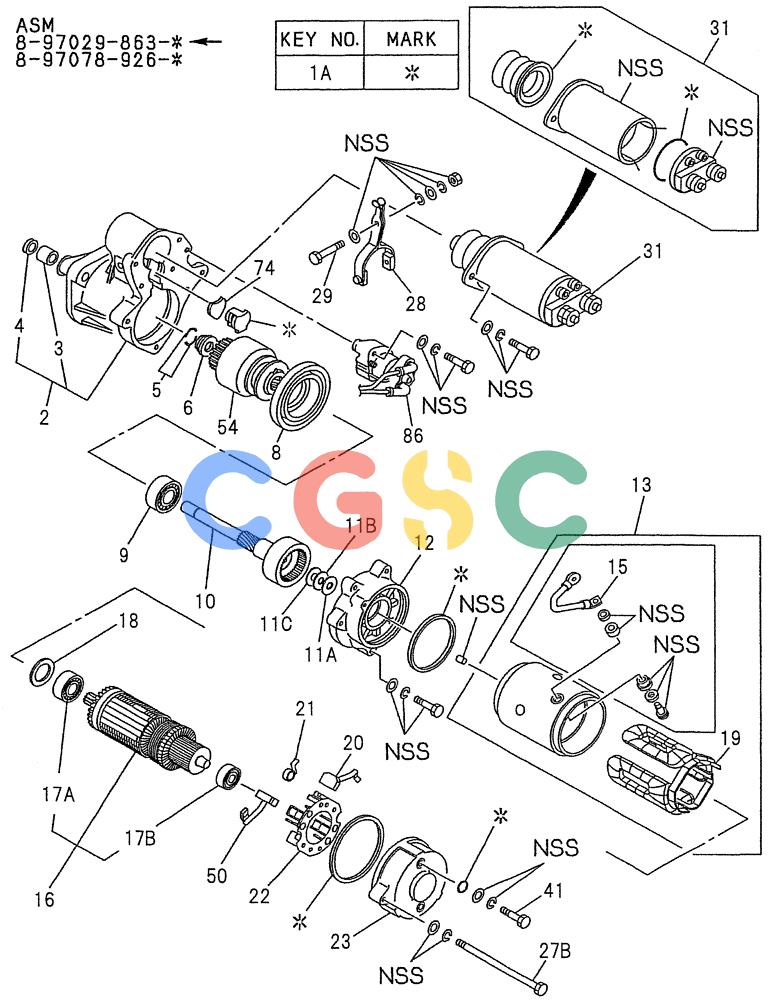

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (08-026) - STARTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
594 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8970298637 | [1] | STARTER MOTOR | KOBSTARTER ASM (24V-4.5KW NIKKO) |
| 1A. | VI8970443770 | [1] | SEAL KIT; STARTER | |
| 2. | VI8970443670 | [1] | CASE; PINION, STARTER | |
| 3. | VI8970436980 | [1] | METAL; PINION CASE STARTER | |
| 4. | VI8970443680 | [1] | COVER; PINION CASE STARTER | |
| 5. | VI8970443740 | [2] | CLIP; PINION STOPPER ST | |
| 6. | VI8970443730 | [1] | STOPPER; PINION STARTER | |
| 8. | VI5811130470 | [1] | BRACKET; CENTER STARTER | |
| 10. | VI8970443720 | [1] | SHAFT; GEAR STARTER | |
| 11A. | VI5811291580 | [1] | WASHER; GEAR SHAFT STARTER | |
| 11B. | VI5811291590 | [1] | WASHER; GEAR SHAFT STARTER | |
| 11C. | VI5811291600 | [1] | WASHER; GEAR SHAFT STARTER | |
| 12. | VI8970443750 | [1] | BRACKET; CENTER RR STARTER | |
| 13. | VI8970668490 | [1] | YOKE; STARTER, Years: 01-NOV-89-01-JUN-95 | |
| 13. | VI8971355680 | [1] | YOKE; STARTER, Start Year: 01-JUL-95 | |
| 15. | VI8970443660 | [1] | WIRE; LEAD STARTER | |
| 17B. | VI1811291960 | [1] | BEARING; ARMATURE, START (REAR), Start Year: 01-JUL-96 | |
| 17A. | VI5811291550 | [1] | BEARING; ARMATURE, START (FRONT) | |
| 19. | VI8970887170 | [1] | COIL; FIELD, STARTER, Years: 01-NOV-89-01-JUN-96 | |
| 23. | VI8971637630 | [1] | HOLDER; BRUSH STARTER COVER; RR COVER STARTER, Start Year: 01-JUL-96 | |
| . . | VI8970443760 | [1] | | |
| 27B. | VI8970202690 | [2] | BOLT; THROUGH, STARTER | |
| 28. | VI1811270310 | [1] | LEVER; SHIFT, STARTER | |
| 29. | VI1811291850 | [1] | PIN; SHIFT LEVER STARTER | |
| 41. | VI1811296020 | [2] | SCREW; RR COVER, STARTER | |
| 54. | VI8971355690 | [1] | CLUCH; PINION, STARTER, Years: 01-JUL-95-01-JUN-96 | |
| 54. | VI8971637560 | [1] | CLUCH; PINION, STARTER, Years: 01-JUL-96-01-OCT-96 | |
| 74. | VI8970443690 | [1] | GASKET; PINION CASE, STARTER | |
