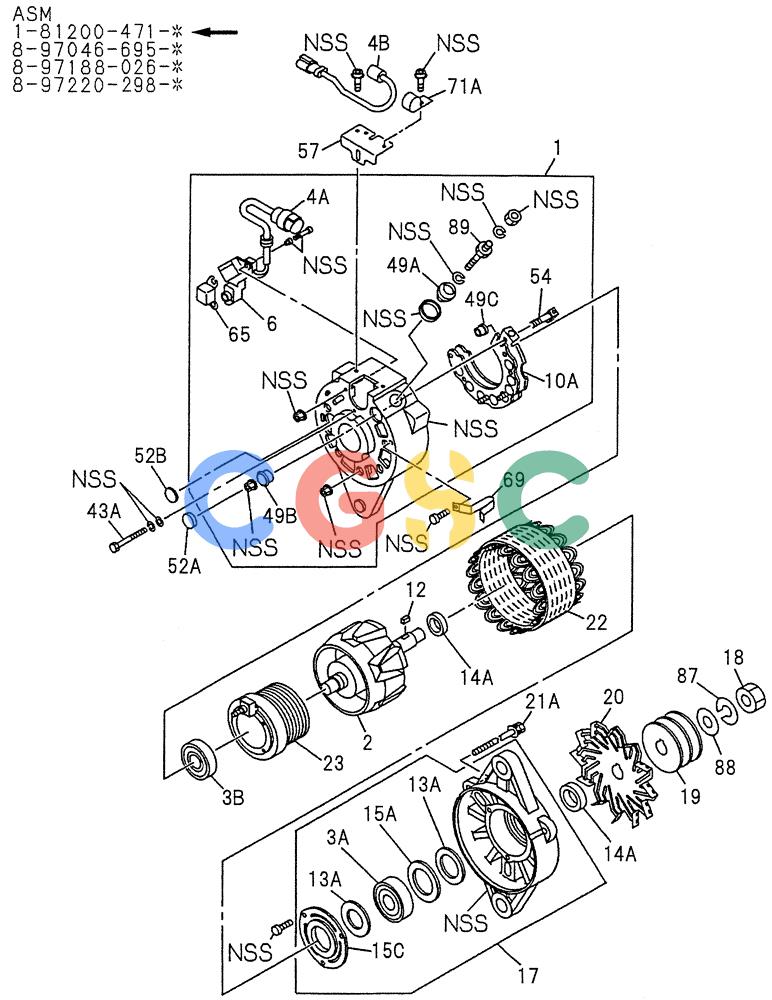

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (08-027[01]) - GENERATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
277 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI1812004710 | [1] | GENERATOR | KOBGENERATOR ASM (24V-40A NIKKO) |
| 1. | VI1812142941 | [1] | COVER ASSY | KOBCOVER ASM; RR, GEN |
| 2. | VI1812111050 | [1] | ROTOR | KOBROTOR; GEN |
| 3A. | VI1812297350 | [1] | BEARING | KOBBEARING; ROTOR, GEN |
| 3B. | VI1812293930 | [1] | BEARING | KOBBEARING; ROTOR, GEN |
| 4A. | VI1812295170 | [1] | TERMINAL | KOBTERMINAL; BRUSH, GEN |
| 4B. | VI8970477320 | [1] | TERMINAL | KOBTERMINAL; BRUSH, GEN |
| 6. | VI1812600070 | [1] | REGULATOR | KOBREGULATOR ASM; VOLTAGE, GEN |
| 10A. | VI1812191070 | [1] | RECTIFIER | KOBRECTIFIER; GEN |
| 12. | VI9822158670 | [1] | KEY | KOBKEY; ROTOR, GEN |
| 13A. | VI1812296440 | [2] | GASKET | KOBGASKET; ROTOR, GEN |
| 14A. | VI1812297370 | [1] | COLLAR; STEEL | |
| 15A. | VI1812295260 | [1] | RETAINER | KOBRETAINER; ROTOR, GEN |
| 15C. | VI1812296430 | [1] | RETAINER | KOBRETAINER; ROTOR, GEN |
| 17. | VI1812297360 | [1] | COVER ASSY | KOBCOVER ASM; FRT, GEN |
| 18. | VI1812294740 | [1] | NUT | KOBNUT; PULLEY, GEN |
| 19. | VI1812220550 | [1] | PULLEY | KOBPULLEY; GEN Superseded by part number: VI1812220910 |
| 20. | VI1812230160 | [1] | FAN | KOBFAN; GEN |
| 21A. | VI1812293820 | [3] | BOLT | KOBBOLT; THROUGH, GEN |
| 22. | VI1812111061 | [1] | STATOR | KOBSTATOR; GEN |
| 23. | VI1812120110 | [1] | COIL | KOBCOIL; ROTOR GEN |
| 43A. | VI1812294770 | [3] | SCREW | KOBSCREW; RR END COVER |
| 49A. | VI1812296480 | [1] | BUSHING | KOBBUSHING; RECTIFIER, GEN |
| 49B. | VI1812296490 | [1] | BUSHING | KOBBUSHING; RECTIFIER, GEN |
| 49C. | VI1812296500 | [1] | BUSHING | KOBBUSHING; RECTIFIER, GEN |
| 52A. | VI1812296520 | [1] | CAP | KOBCAP; RUBBER,TERMINAL |
| 52B. | VI1812296530 | [1] | CAP | KOBCAP; RUBBER,TERMINAL |
| 54. | VI1812296470 | [1] | BOLT | KOBBOLT; RECTIFIER, GEN |
| 57. | VI1812142960 | [1] | COVER | KOBCOVER; BRUSH, GEN |
| 65. | VI1841320080 | [1] | CONDENSER | KOBCONDENSER; GEN |
| 69. | VI1812295160 | [1] | CLIP | KOBCLIP; WIRE, GEN |
| 71A. | VI1812170530 | [1] | HOLDER | KOBHOLDER; TERMINAL, GEN |
| 87. | VI1812294790 | [1] | WASHER | KOBWASHER; PULLEY, GEN |
| 88. | VI1812294780 | [1] | WASHER | KOBWASHER; PL, PULLEY GEN |
| 89. | VI1812296460 | [1] | BOLT | KOBBOLT; RECTIFIER, GEN |
