日立零件查询（CX1000）P-COVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
474 次

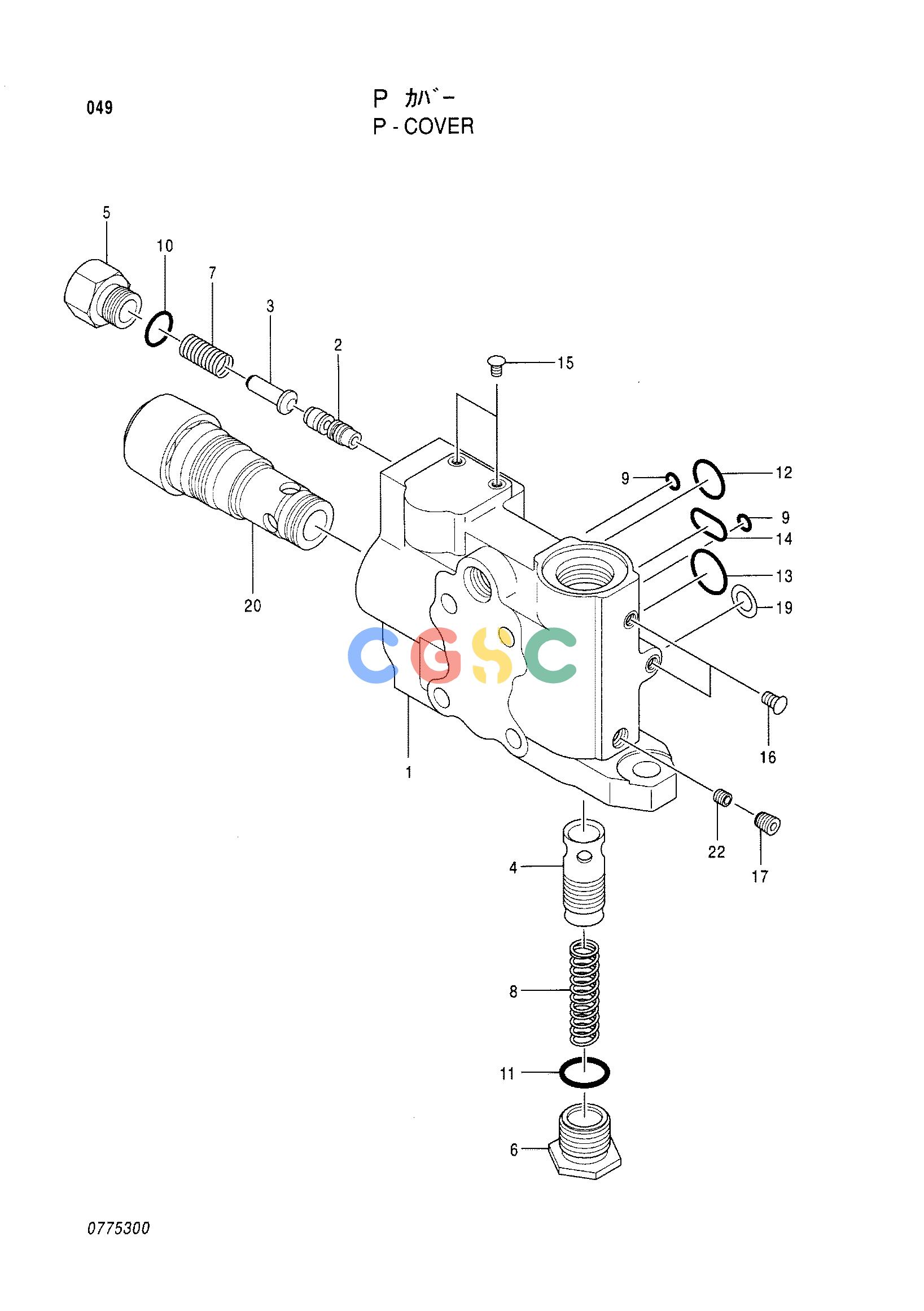

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4445996 | [1] | P-COVER | 0775300 |
| 1. | 0775301 | [1] | COVER | |
| 2. | 0436303 | [1] | SPOOL | |
| 3. | 0436305 | [1] | SEAT;SPRING | |
| 4. | 0775302 | [1] | PLUNGER | |
| 5. | 0436310 | [1] | PLUG | |
| 6. | 0775303 | [1] | PLUG | |
| 7. | 0294801 | [1] | SPRING | |
| 8. | 0775304 | [1] | SPRING | |
| 9. | 4050481 | [2] | O-RING | |
| 10. | 4509180 | [1] | O-RING | |
| 11. | 4506418 | [1] | O-RING | |
| 12. | 0438807 | [1] | RING | |
| 13. | 0438808 | [1] | RING | |
| 14. | 0438809 | [1] | RING | |
| 15. | 0436311 | [2] | PLUG | |
| 16. | 0215017 | [1] | PLUG | |
| 17. | 0253908 | [1] | PLUG | |
| 19. | 0438811 | [4] | SHIM | |
| 20. | 4446002 | [1] | VALVE;RELIEF | 0775400 |
| 22. | 0775305 | [1] | ORIFICE | |
