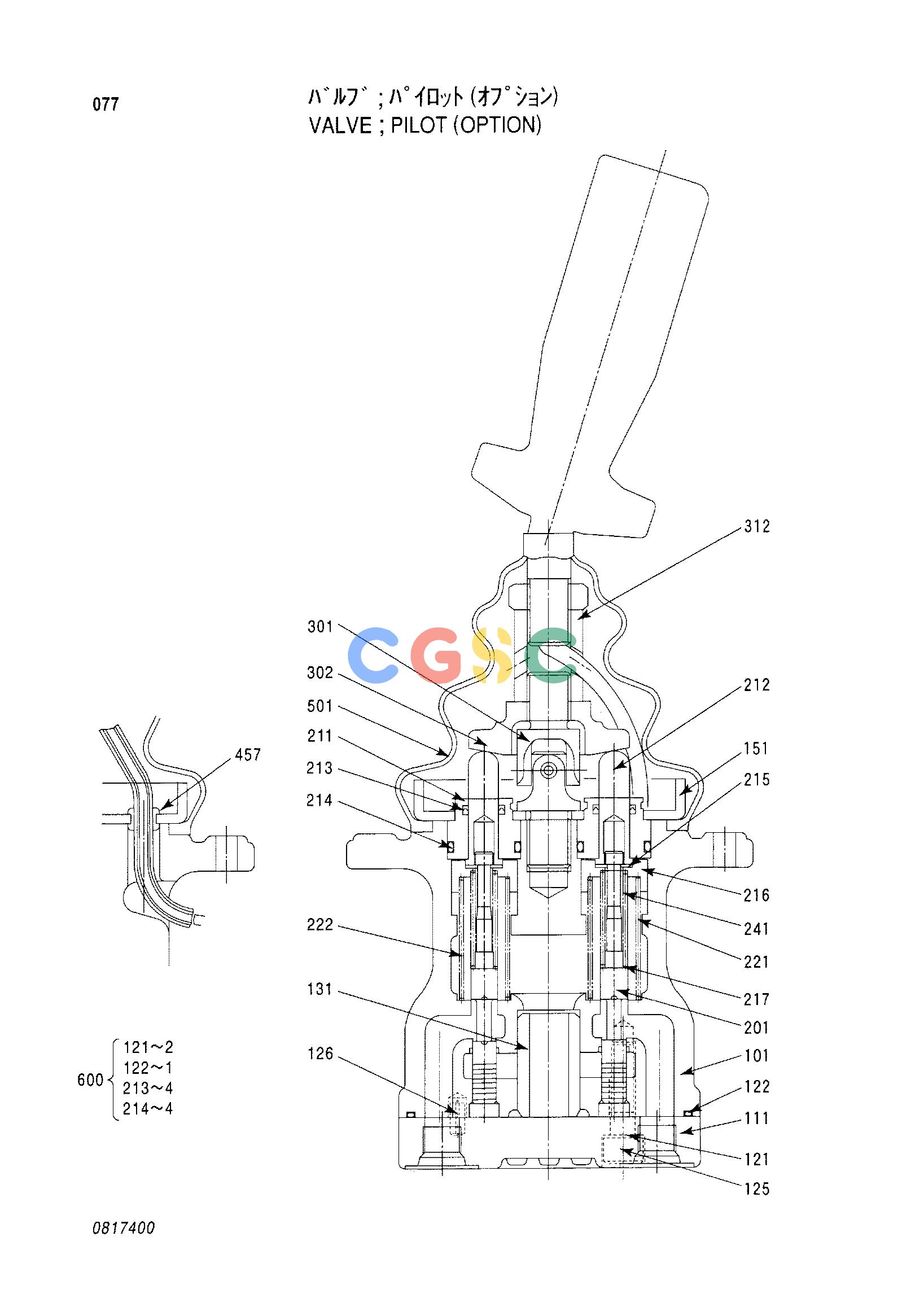

日立零件查询（CX1000）VALVE;PILOT (OPTION) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
455 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4429532 | [1] | VALVE;PILOT | 0817400 |
| 101. | +++++++ | [1] | CASING | |
| 111. | 0708402 | [1] | PLATE | |
| 121. | +++++++ | [2] | WASHER;SEAL | |
| 122. | +++++++ | [1] | O-RING | |
| 125. | 0150809 | [2] | BOLT;SOCKET | |
| 126. | 4101345 | [1] | PIN;SPRING | |
| 131. | 0708406 | [1] | BUSH | |
| 151. | 0393809 | [1] | PLATE | |
| 201. | +++++++ | [4] | SPOOL | |
| 211. | 0629003 | [4] | PLUG | |
| 212. | 0628907 | [4] | ROD | |
| 213. | +++++++ | [4] | SEAL | |
| 214. | +++++++ | [4] | O-RING | |
| 215. | 0428906 | [8] | WASHER | |
| 216. | 0628909 | [4] | SEAT | |
| 217. | 0428907 | [4] | WASHER | |
| 221. | 0708409 | [3] | SPRING | |
| 222. | 0817301 | [1] | SPRING | |
| 241. | 0628911 | [4] | SPRING | |
| 301. | 0393820 | [1] | JOINT | |
| 302. | 0708410 | [1] | PLATE | |
| 312. | 0393822 | [1] | NUT | |
| 457. | 0393836 | [1] | BUSH | |
| 501. | 0393839 | [1] | BELLOWS | |
| 600. | 0708412 | [1] | SEAL;KIT | |
