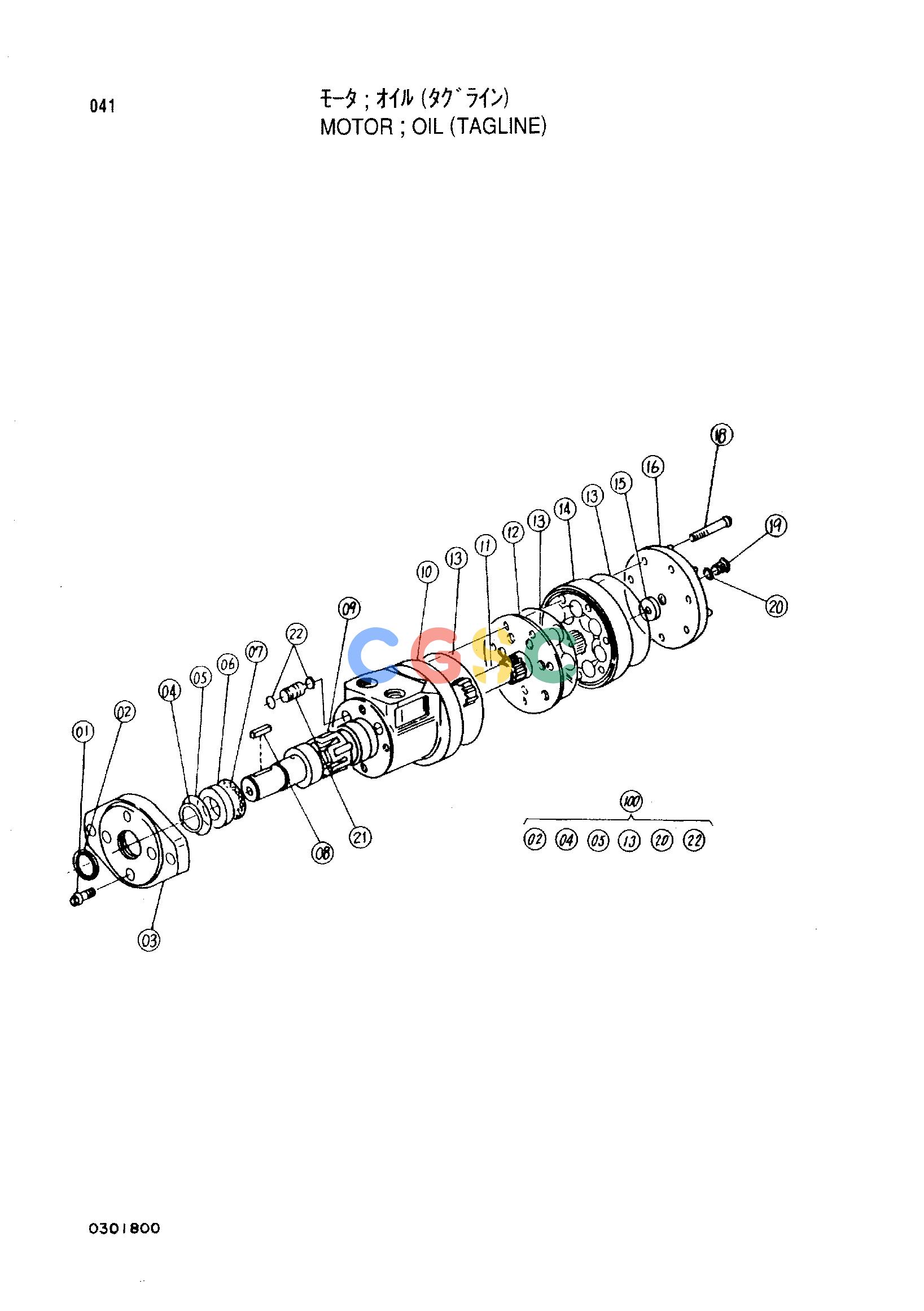

日立零件查询（CX1000）MOTOR;OIL (TAGLINE) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
561 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4077195 | [1] | MOTOR;OIL | 0301800 |
| 01. | 0301801 | [4] | SCREW | |
| 02. | 0125302 | [1] | SEAL;DUST | |
| 03. | 0125303 | [1] | FLANGE | |
| 04. | 0125304 | [1] | SEAL;OIL | |
| 05. | 0125305 | [1] | O-RING | |
| 06. | 0125306 | [1] | RACE;THRUST-BRG. | |
| 07. | 0125307 | [1] | BRG.;NEEDLE | |
| 08. | 0125308 | [1] | KEY | |
| 09. | 0125309 | [1] | SHAFT | |
| 10. | 0301802 | [1] | HOUSING | |
| 11. | 0301803 | [1] | SHAFT;DRIVE | |
| 12. | 0156303 | [1] | SPACER | |
| 13. | 0156304 | [3] | O-RING | |
| 14. | 0301804 | [1] | GEROLER | |
| 16. | 0156307 | [1] | END | |
| 18. | 0301805 | [7] | SCREW | |
| 19. | 0125320 | [1] | PLUG | |
| 20. | 0156309 | [1] | O-RING | |
| 21. | 0156310 | [2] | VALVE;CHECK | |
| 22. | 0125311 | [4] | O-RING | |
| 100. | 0156312 | [1] | KIT;SEAL | |
