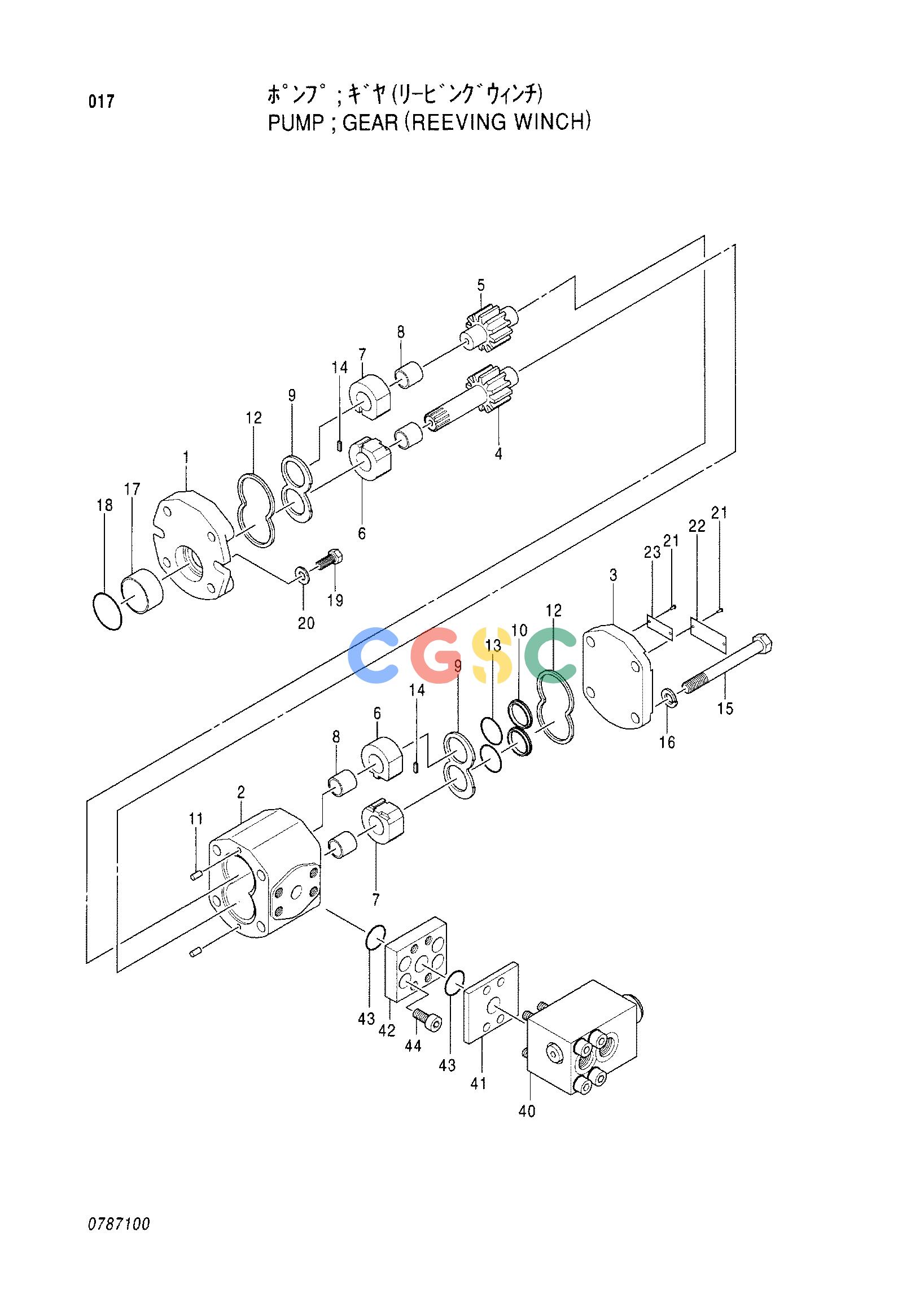

日立零件查询（CX1000）PUMP;GEAR (REEVING WINCH) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
951 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4428826 | [1] | PUMP;GEAR | 0787100 |
| 1. | 0787101 | [1] | FRAME | |
| 2. | 0738702 | [1] | CASE | |
| 3. | 0295001 | [1] | COVER | |
| 4. | 0738705 | [1] | GEAR | |
| 5. | 0787102 | [1] | GEAR | |
| 6. | 0787103 | [2] | PLATE | |
| 7. | 0787104 | [2] | PLATE | |
| 8. | 0787105 | [4] | METAL | |
| 9. | 0295002 | [2] | PLATE | |
| 10. | 0295003 | [2] | GUIDE | |
| 11. | 0330401 | [2] | PIN | |
| 12. | 0295004 | [2] | RING | |
| 13. | 0295006 | [2] | O-RING | |
| 14. | 0386304 | [2] | RING | |
| 15. | 0787106 | [4] | BOLT | |
| 16. | 0284311 | [4] | WASHER;SPRING | |
| 17. | 0787107 | [1] | BUSHING | |
| 18. | 0294606 | [1] | O-RING | |
| 19. | 0754501 | [2] | BOLT | |
| 20. | 0738711 | [2] | WASHER;PLANE | |
| 21. | 0787108 | [4] | SCREW;DRIVE | |
| 22. | 0281303 | [1] | NAME-PLATE | |
| 23. | 0787109 | [1] | NAME-PLATE | |
| 40. | 4425079 | [1] | VALVE;RELIEF | 0738800 |
| 41. | 0738712 | [1] | PLATE | |
| 42. | 0738713 | [1] | PLATE | |
| 43. | A810025 | [2] | O-RING | |
| 44. | 0738714 | [4] | BOLT;SOCKET | |
