日立零件查询（CX1000）CYLINDER HEAD COVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
266 次

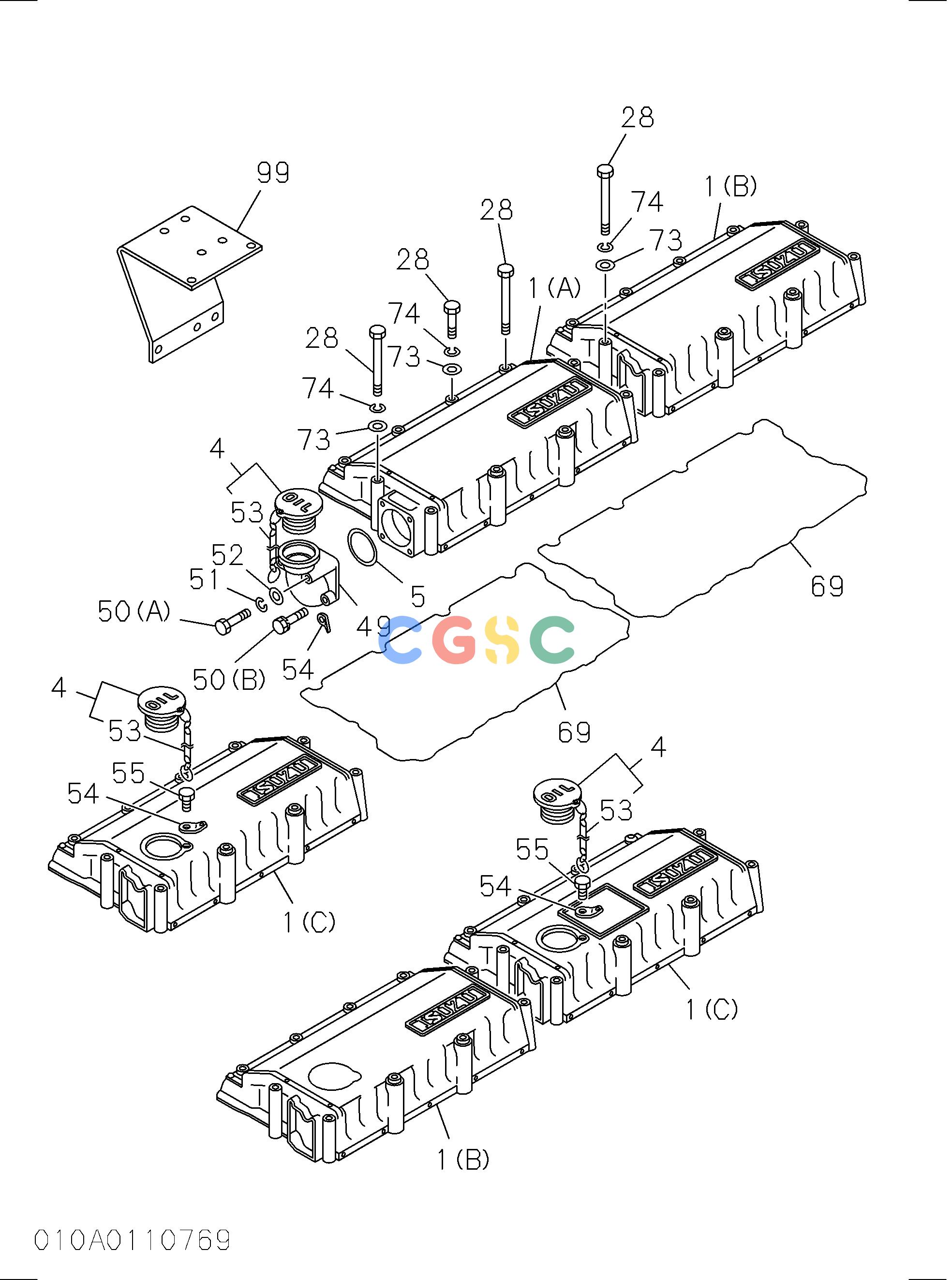

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(B). | 1111710864 | [1] | COVER; CYL HD | |
| 1(C). | 1111712390 | [1] | COVER; CYL HD | |
| 4. | 1117500170 | [1] | CAP; OIL FILLER | |
| 28. | 0168060500 | [8] | BOLT; HD COVER | M10X50 |
| 28. | 0168060000 | [8] | BOLT; HD COVER | M10X100 |
| 28. | 9098041431 | [4] | BOLT; HD COVER | M10X110 |
| 53. | 9099540350 | [1] | CHAIN; CAP OIL FILLER | |
| 54. | 9117590140 | [1] | BRACKET; CHAIN HD COVER FRT | |
| 55. | 0500408140 | [1] | BOLT; BRKT CHAIN FRT COVER | M8X14 W/LK WASHER |
| 69. | 1111730101 | [2] | GASKET; HD TO COVER | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 73. | 9091605100 | [19] | WASHER; PL,HD COVER | |
| 74. | 9091505100 | [20] | WASHER; LK,HD COVER | |
