日立零件查询（CX1000）CYLINDER HEAD Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
500 次

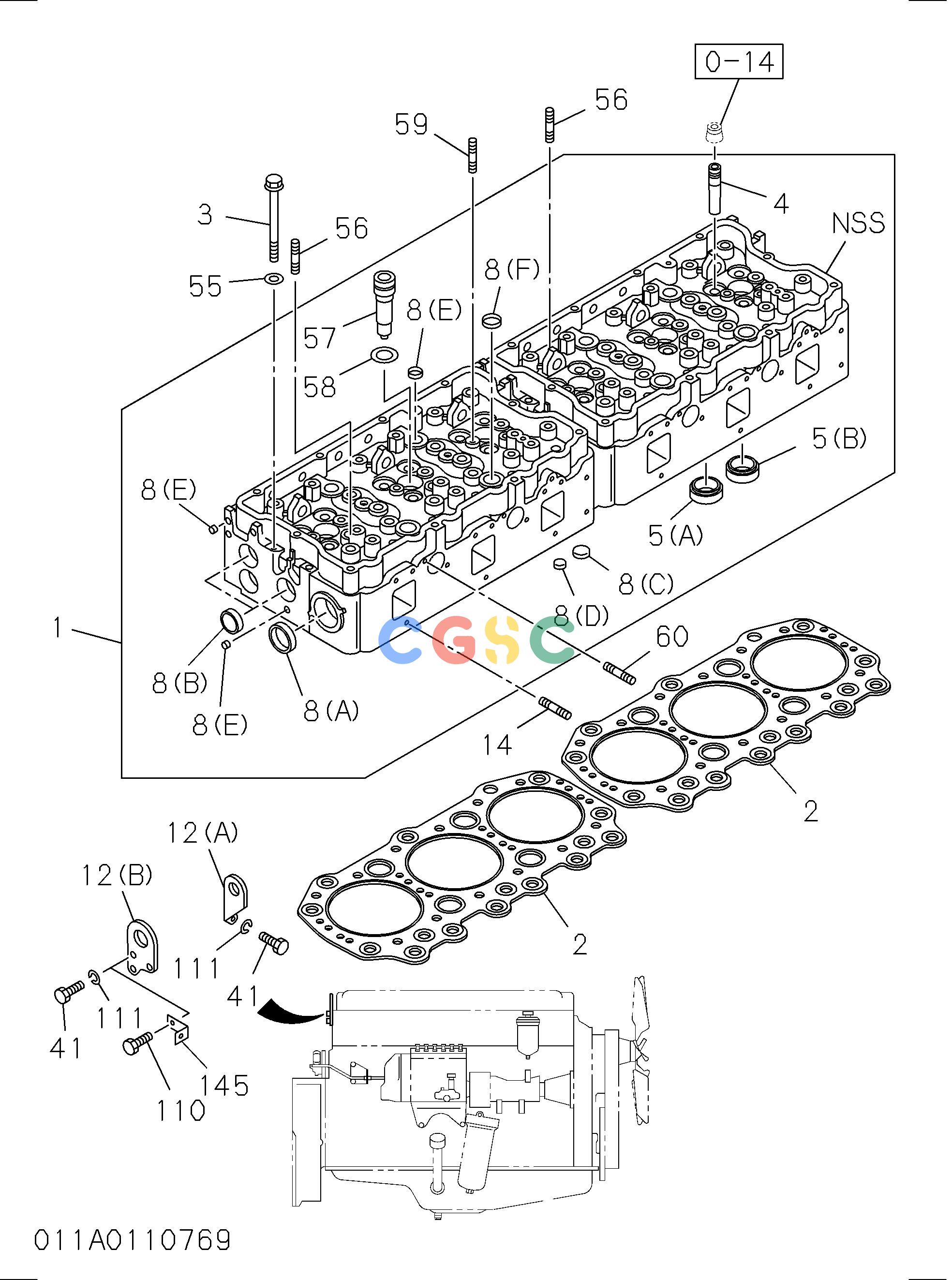

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1111106761 | [2] | HEAD ASM; CYL | |
| 2. | 1111411420 | [2] | GASKET; CYL HD | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 3. | 1090700390 | [40] | BOLT; CYL HD TO BLOCK | M16X163 |
| 4. | 1117210010 | [24] | GUIDE; VLV | |
| 5(A). | 1117150730 | [12] | SEAT; VLV INSERT | INLET |
| 5(B). | 1117110440 | [12] | SEAT; VLV INSERT | EXHAUST |
| 8(A). | 1096000051 | [6] | CUP; SEALING,WATER JACKET | D=45 |
| 8(B). | 1096000030 | [8] | CUP; SEALING,WATER JACKET | D=38 |
| 8(C). | 1111290220 | [4] | CUP; SEALING,WATER JACKET | D=32 |
| 8(C). | 1096000121 | [8] | CUP; SEALING,WATER JACKET | D=32 |
| 8(C). | 5112190150 | [4] | CUP; SEALING,WATER JACKET | D=32 |
| 8(D). | 1096000540 | [6] | CUP; SEALING,WATER JACKET | D=20 |
| 8(D). | 1096000160 | [4] | CUP; SEALING,WATER JACKET | D=25 |
| 8(E). | 1096000101 | [4] | CUP; SEALING,WATER JACKET | D=12 |
| 8(F). | 1111290230 | [6] | CUP; SEALING,WATER JACKET | D=16 |
| 12(A). | 1117770561 | [1] | HANGER; ENG,RR | |
| 12(B). | 9117771621 | [2] | HANGER; ENG,RR | |
| 14. | 9044110800 | [18] | STUD; EXH MANIF | M10X80 L=95 |
| 41. | 0500510220 | [8] | BOLT; ENG HANGER | M10X22 W/LK WASHER |
| 55. | 9098516722 | [40] | WASHER; PL,CYL HD TO BLOCK | |
| 56. | 9041108350 | [6] | STUD; NOZZLE HOLDER | M8X35 L=47 |
| 56. | 9043110550 | [6] | STUD; NOZZLE HOLDER | M10X55 L=75 |
| 57. | 1111290330 | [6] | SLEEVE; NOZZLE HOLDER | |
| 58. | 9095652280 | [6] | GASKET; SLEEVE,NOZZLE HOLDER | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 59. | 1117290031 | [12] | GUIDE; BRIDGE | |
| 60. | 9041108220 | [8] | STUD; WATER OUTLET PIPE | M8X22 L=33 |
