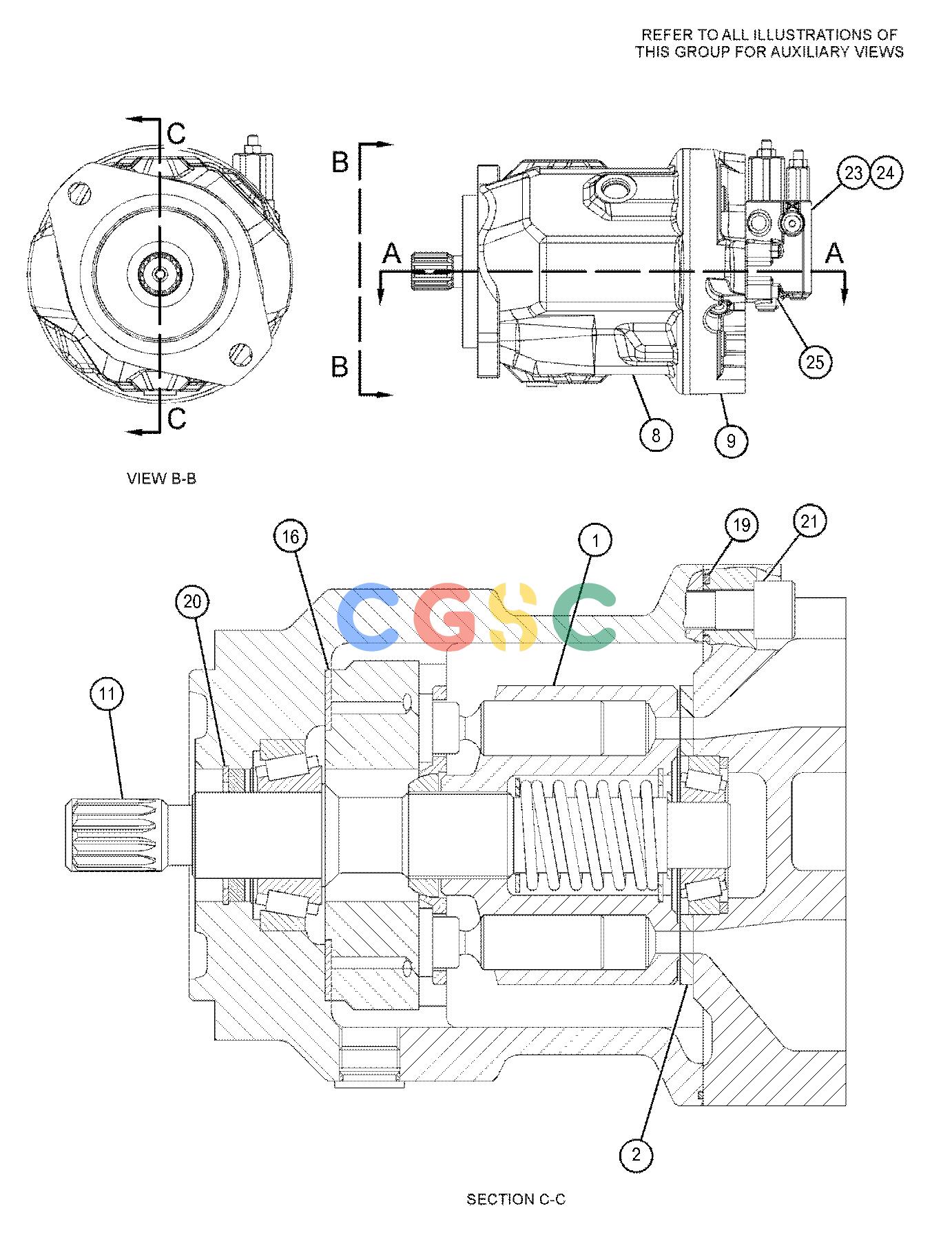

卡特零件查询（730） 501-8368: PUMP GP-PISTON
广数供应链运营团队, 15 02月, 2025，浏览：
614 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 442-5639 | [1] | ROTATING GP-PUMP | |
| 2. | 280-0964 | [1] | PLATE | |
| 3. | 6E-3262 | [1] | GUIDE-PISTON | |
| 4. | 6E-3263 | [1] | PISTON | |
| 5. | 6E-3264 | [1] | CYLINDER | |
| 6. | 6E-3265 | [1] | SPRING | |
| 7. | 6E-4011 | [1] | PISTON-CONTROL | |
| 8. | 469-3242 | [1] | HOUSING-PUMP | |
| 9. | 538-5211 | [1] | HEAD | |
| 10. | 121-3042 | [1] | SWASHPLATE AS | |
| 11. | 538-5212 | [1] | SHAFT-DRIVE | |
| 12. | 6E-4000 | [1] | SPACER(25.5X35X3-MM THK) | |
| 13. | 3P-1210 | [1] | CONE-BEARING | |
| 14. | 8J-0412 | [1] | CUP-BEARING | |
| 15. | 364-1997 | [1] | BEARING-ROLLER | |
| 16. | 380-7809 | [2] | LINER-BEARING | |
| 17. | 380-7810 | [1] | SEAL-SHAFT | |
| 18. | 3E-6770 | [1] | SEAL-O-RING | |
| 19. | 3E-6769 | [4] | SEAL-O-RING | |
| 20. | 335-8226 | [1] | RING-RETAINING | |
| 21. | 095-9805M | [4] | BOLT-SOCKET HEAD(M14X2X40-MM) | |
| 22. | 9X-8979 | [1] | DOWEL | |
| 23. | 347-0612Y | [1] | VALVE GP-PUMP CONTROL(FLOW COMPENSATOR) | |
| 24. | 280-7870 | [1] | GASKET | |
| 25. | 8T-8442M | [4] | BOLT-SOCKET HEAD(M6X1X30-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
