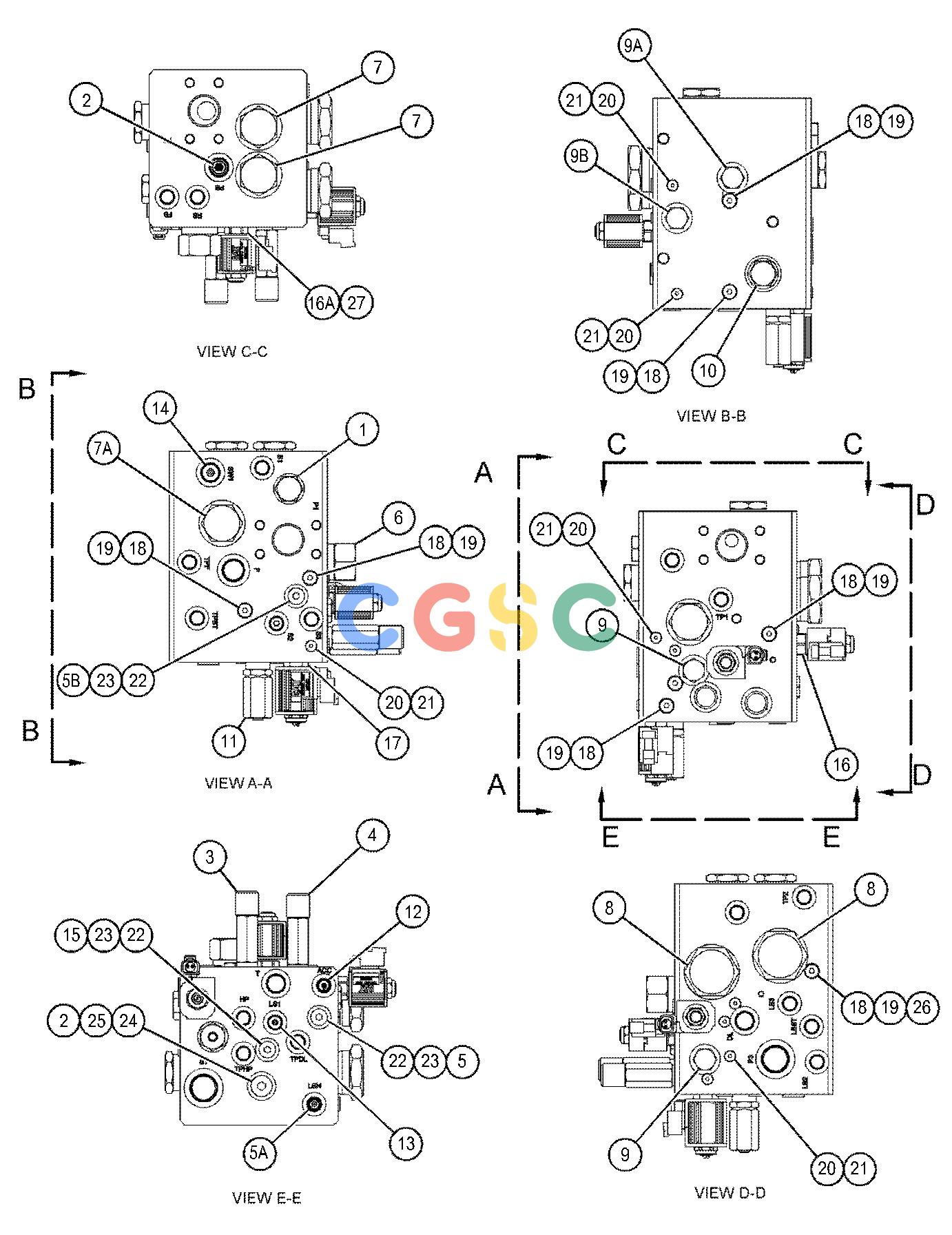

卡特零件查询（730） 517-8199: VALVE GP-MAIN CONTROL
广数供应链运营团队, 15 02月, 2025，浏览：
577 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 269-8274 | [1] | VALVE GP-SHUTTLE(BRAKE SYSTEM) | |
| 2. | 6E-5066 | [2] | SCREEN(HYDRAULIC) | |
| 3. | 239-0615Y | [1] | VALVE GP-PRESSURE REDUCING(HOIST PILOT) | |
| 4. | 357-6734Y | [1] | VALVE GP-PRESSURE REDUCING(DIFFERENTIAL LOCK) | |
| 5. | 474-0524L | [1] | VALVE GP-SHUTTLE(PUMP 1) | |
| 5A. | 474-0524L | [1] | VALVE GP-SHUTTLE(PUMP 2) | |
| 5B. | 474-0524L | [1] | VALVE GP-SHUTTLE(BRAKE CHARGE) | |
| 6. | 326-4489N | [1] | VALVE GP-DIVERTER(FAN SPEED) | |
| | 5L-4759 | [1] | SEAL-O-RING | |
| | 9X-7744 | [1] | SEAL-O-RING | |
| | 030-4605 | [1] | SEAL-O-RING | |
| 7. | 273-6499J | [2] | VALVE GP-CHECK(HOIST) | |
| 7A. | 273-6499J | [1] | VALVE GP-CHECK(STEERING) | |
| 8. | 283-1497H | [2] | VALVE GP-DIVERTER(HOIST) | |
| | | | (EACH INCLUDES) |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 2Y-2347 | [1] | SEAL-O-RING | |
| | 8T-4827 | [1] | SEAL-O-RING | |
| 9. | 158-9956 | [2] | VALVE GP-CHECK(BRAKE SYSTEM) | |
| 9A. | 158-9956 | [1] | VALVE GP-CHECK(PRIMARY STEERING) | |
| 9B. | 158-9956 | [1] | VALVE GP-CHECK(SECONDARY STEERING) | |
| | | | (EACH VALVE GP INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6E-0381 | [1] | RING-BACKUP | |
| | 161-6154 | [1] | SEAL-O-RING | |
| 10. | 319-5237 | [1] | VALVE GP-CHECK(MAIN CONTROL VALVE) | |
| | 7X-4776 | [1] | RING-BACKUP | |
| | 161-6149 | [1] | SEAL-O-RING | |
| | 322-6179 | [1] | SEAL-O-RING | |
| 11. | 251-8330S | [1] | VALVE GP-RELIEF(BRAKE ACCUMULATOR) | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 161-6149 | [1] | SEAL-O-RING | |
| | 161-6161 | [2] | RING-BACKUP | |
| 12. | 452-3319 | [1] | PLUG-ORIFICE | |
| 13. | 244-1542 | [1] | PLUG-ORIFICE | |
| 14. | 421-6527 | [1] | PLUG-ORIFICE | |
| 15. | 464-1951 | [1] | PLUG-ORIFICE | |
| 16. | 424-2272 | [1] | VALVE GP-SOLENOID(PARKING BRAKE) | |
| 16A. | 424-2272 | [1] | VALVE GP-SOLENOID(ACCUMULATOR CHARGE) | |
| | | | (EACH VALVE GP INCLUDES) |
| | 156-5970 | [1] | NUT(1/2-20-THD) | |
| | 354-7468 | [1] | COIL AS-SOLENOID(24-VOLT) | |
| 17. | 381-0861 | [1] | VALVE GP-SOLENOID(FAN SPEED) | |
| | 422-5461 | [1] | COIL AS(10-VOLT) | |
| 18. | 9S-8002 | [8] | PLUG(7/16-20-THD) | |
| 19. | 3J-7354 | [8] | SEAL-O-RING | |
| 20. | 9S-8001 | [9] | PLUG | |
| 21. | 4J-7533 | [9] | SEAL-O-RING | |
| 22. | 9S-8004 | [3] | PLUG(9/16-18-THD) | |
| 23. | 3J-1907 | [3] | SEAL-O-RING | |
| 24. | 9S-8005 | [1] | PLUG(3/4-16-THD) | |
| 25. | 3K-0360 | [1] | SEAL-O-RING | |
| 26. | 393-2730 | [1] | PLUG-ORIFICE | |
| 27. | 106-9421 | [1] | PLUG-ORIFICE | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 457-5280L | [1] | KIT-SEAL(SHUTTLE VALVE) | |
| | | | (INCLUDES O-RING & BACKUP RING) |
| | 239-6336N | [1] | KIT-SEAL(RELIEF VALVE) | |
| | | | (INCLUDES O-RING SEALS & BACKUP RINGS) |
| | 238-9843H | [1] | KIT-SEAL(CHECK VALVE) | |
| | 238-9842J | [1] | KIT-SEAL(RELIEF VALVE) | |
| | | | (INCLUDES O-RINGS & BACKUP RING) |
| | 133-5545S | [1] | KIT-SEAL | |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | N | | KIT MARKED N SERVICES PART(S) MARKED N |
| | S | | KIT MARKED S SERVICES PART(S) MARKED S |
| | Y | | SEPARATE ILLUSTRATION |
