凯斯零件查询(46) - MCCORMICK-INTERNATIONAL PICK UP RECTANGULAR BALER (1/57-12/63) (89) - HIGH CLEARANCE ATTACHMENT, WHEN ORDERED Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
643 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |

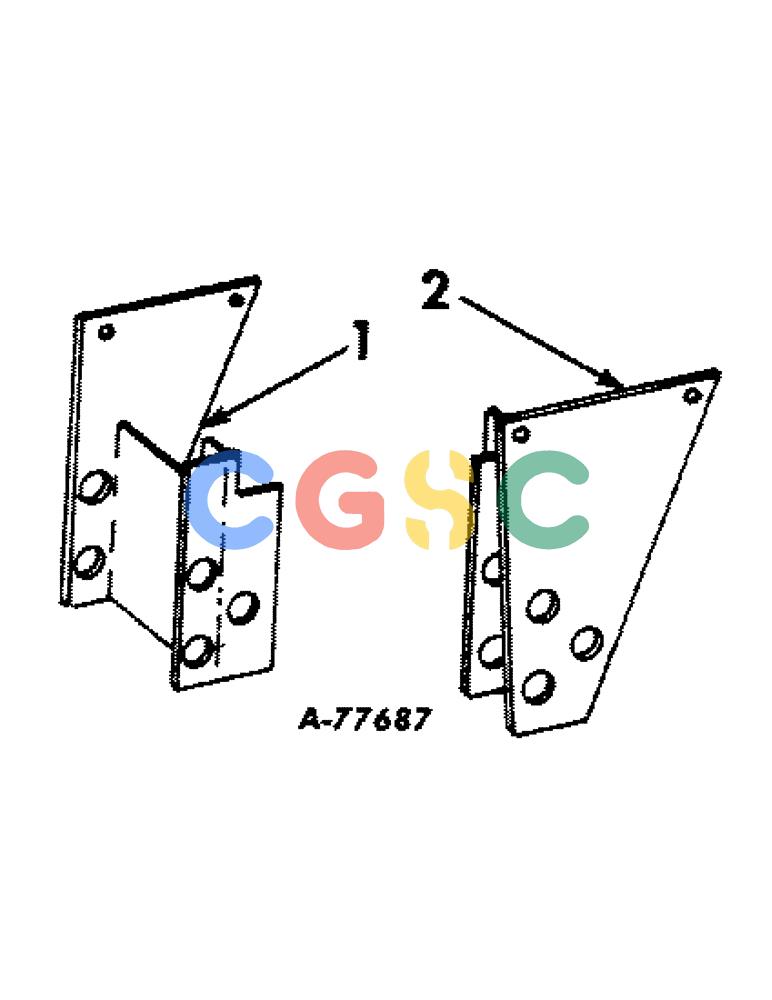

| 1. |
668862R91
|
[1] |
|
P
BRACKET ASSY, right auxiliary axle
|
| . . |
473213R1
|
[2] |
LOCK NUT,7/16"-14, GB
|
IH
NUT, lock, cd or zn-pltd., 7/16" Superseded by part number: 280980
|
| . . |
474848R1
|
[1] |
LOCK NUT,1/2"-13, GB
|
IH
NUT, lock, cd-pltd., 1/2" Superseded by part number: 231-4218
|
| . . |
180147
|
[2] |
SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5
|
IH
cap, hex-hd, cd or zn-pltd., 7/16 x 1-1/4" Superseded by part number: 9627887
|
| . . |
180177
|
[1] |
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
|
IH
SCREW, cap, hex-hd, cd or zn-pltd., 1/2 x 1-1/2" Superseded by part number: 113-410
|
| . . |
120383
|
[2] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| . . |
120384
|
[1] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| 2. |
668857R91
|
[1] |
|
P
BRACKET ASSY, left auxiliary axle
|
