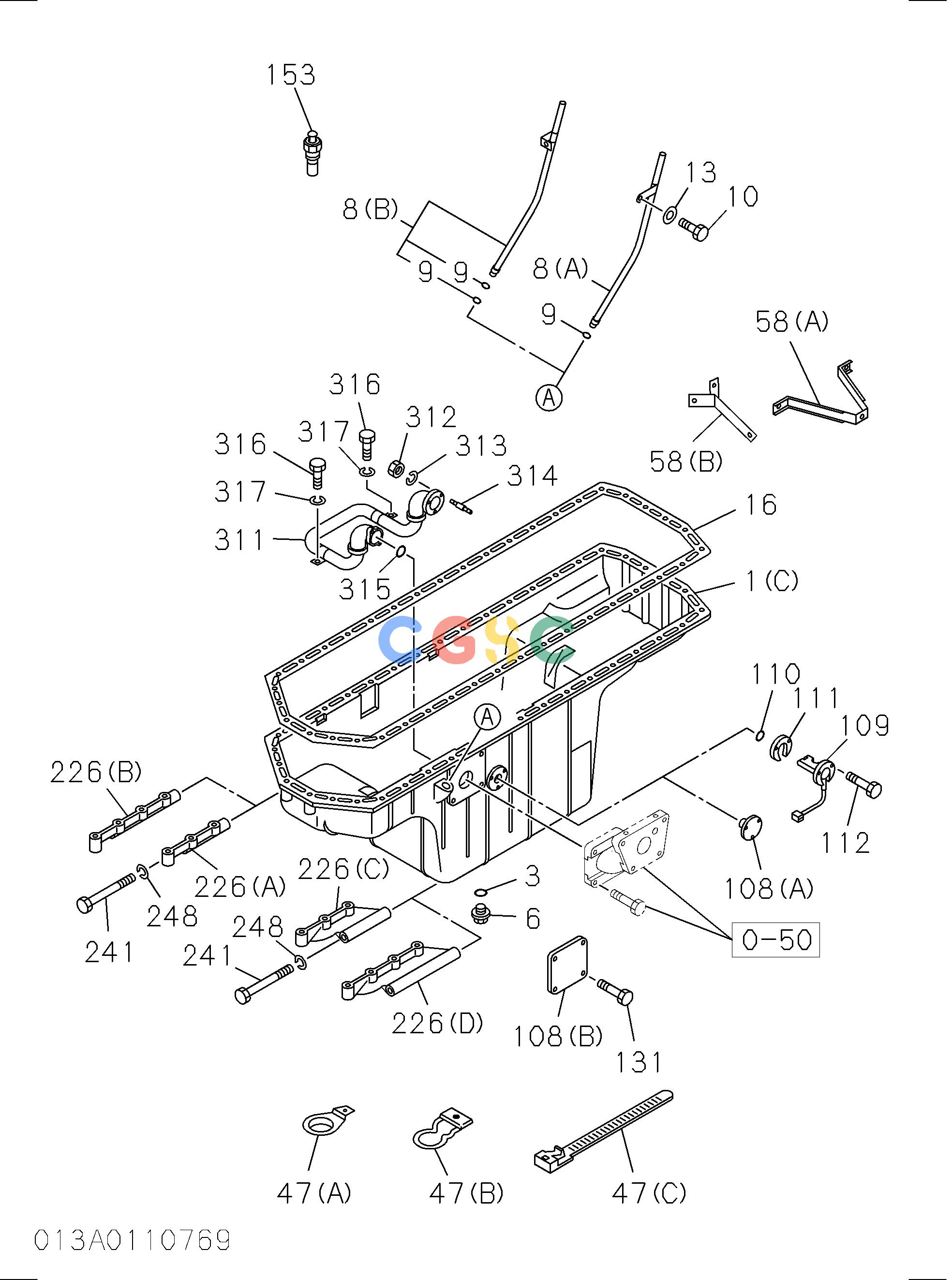

日立零件查询（CX1000）OIL PAN AND LEVEL GAUGE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
654 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(G). | 1113615221 | [1] | PAN ASM; OIL | |
| 2(B). | 1117603541 | [1] | GAUGE; OIL LEVEL | |
| 3. | 1096230580 | [1] | GASKET; DRAIN PLUG | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 6. | 1096040220 | [1] | PLUG; OIL DRAIN | M24X17 |
| 8(B). | 1117664350 | [1] | TUBE; GUIDE,OIL LEVEL GAUGE | |
| 9. | 5096230020 | [2] | GASKET; GUIDE TUBE,OIL LEVEL GAUGE | |
| 10. | 0500408160 | [1] | BOLT; GUIDE TUBE | M8X16 W/LK WASHER |
| 13. | 9091605080 | [1] | WASHER; PL,GUIDE TUBE,OIL LEVEL GAUGE | |
| 16. | 1113670980 | [1] | GASKET; OIL PAN TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 22. | 9091506100 | [11] | WASHER; LK,OIL PAN | |
| 23. | 0500510350 | [27] | BOLT; OIL PAN | M10X35 W/LK WASHER |
| 23. | 0168060000 | [1] | BOLT; OIL PAN | M10X100 |
| 23. | 0168060650 | [4] | BOLT; OIL PAN | M10X65 |
| 23. | 9016660900 | [8] | BOLT; OIL PAN | M10X90 |
| 47(C). | 5097070310 | [1] | CLIP; HOSE,AIR BREATHER | |
| 58(A). | 1117691630 | [1] | STAY; GUIDE TUBE | |
| 109. | 8971312230 | [1] | SWITCH; OIL LEVEL | |
| 110. | 1096233550 | [1] | GASKET; SW,OIL LEVEL | |
| 111. | 5113690720 | [1] | SPACER; SW,OIL LEVEL | |
| 112. | 0501406280 | [3] | BOLT; SW,OIL LEVEL | M6X28 |
| 151. | 9113692890 | [1] | CLIP; WATER DRAIN | |
| 226(B). | 1113491740 | [1] | STAY; HSG TO OIL PAN | |
| 226(D). | 1113491750 | [1] | STAY; HSG TO OIL PAN | |
| 241. | 1090200081 | [2] | BOLT; STAY TO OIL PAN | M14X155 |
| 248. | 9091505140 | [2] | WASHER; LK,STAY TO OIL PAN | |
