日立零件查询（CX1000）CAMSHAFT AND VALVE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
838 次

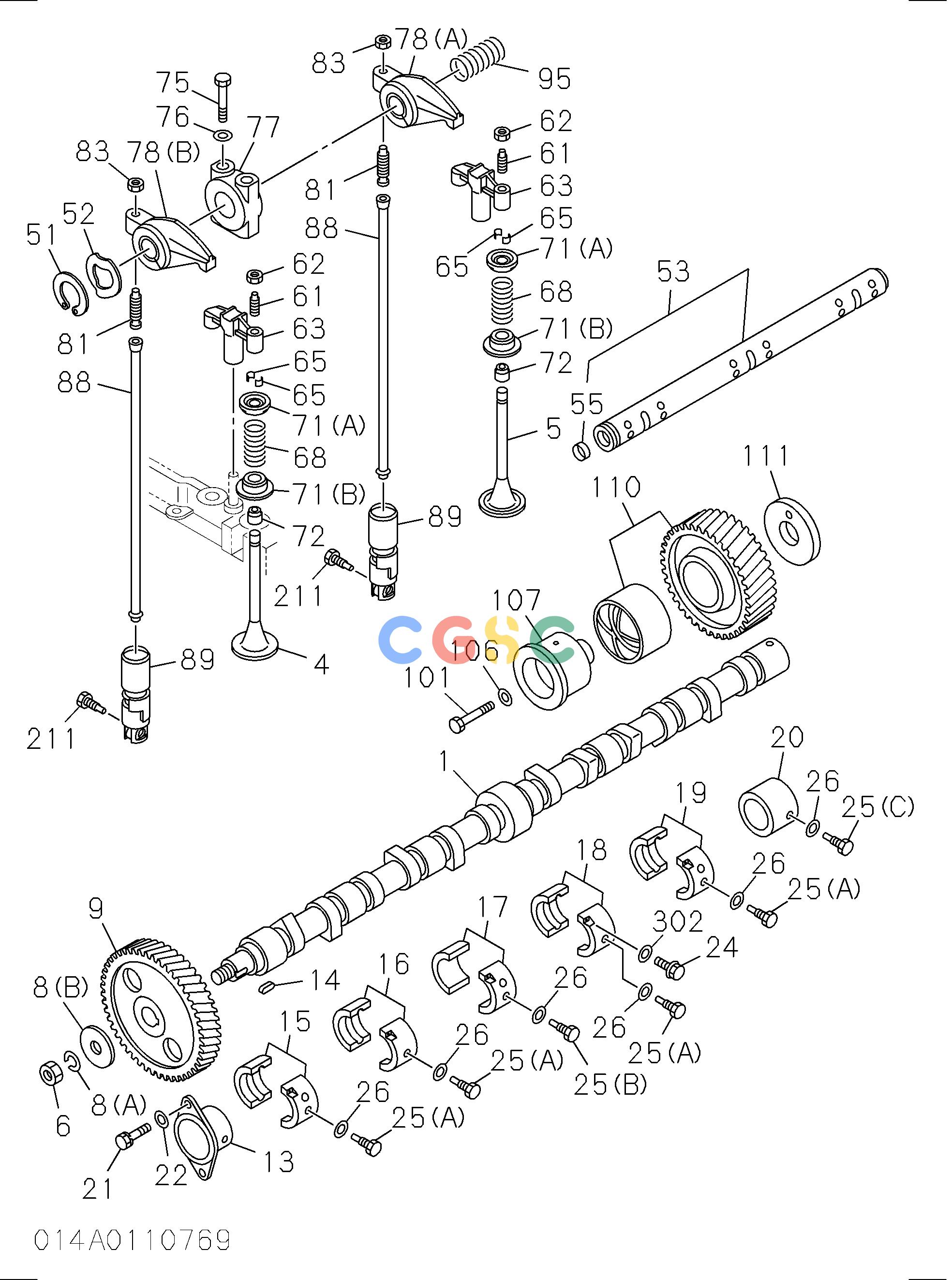

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1125111781 | [1] | CAMSHAFT | |
| 4. | 1125511290 | [12] | VALVE; INL | |
| 5. | 1125520280 | [12] | VALVE; EXH | |
| 6. | 9991115200 | [1] | NUT; CM/SHF GEAR | |
| 8(A). | 9091505200 | [1] | WASHER; CM/SHF GEAR | ID=20 |
| 8(B). | 9098514870 | [1] | WASHER; CM/SHF GEAR | ID=21 |
| 9. | 1125220151 | [1] | GEAR; CM/SHF | Z=64 |
| 13. | 1116110080 | [1] | METAL; CM/SHF,NO 1 | |
| 14. | 9080307180 | [1] | KEY; CM/SHF | |
| 15. | 1116160230 | [1] | METAL; CM/SHF,NO 2 | |
| 16. | 1116170150 | [1] | METAL; CM/SHF,NO 3 | |
| 17. | 1116180160 | [1] | METAL; CM/SHF,NO 4 | |
| 18. | 1116190520 | [1] | METAL; CM/SHF,NO 5 | |
| 19. | 1116190550 | [1] | METAL; CM/SHF,NO 6 | |
| 20. | 1116190580 | [1] | METAL; CM/SHF,NO 7 | |
| 21. | 0501510250 | [2] | BOLT; CM/SHF METAL,NO 7 | M10X25 W/WASHER |
| 24. | 9039104140 | [10] | BOLT; CM/SHF METAL | M4X14 W/LK WASHER |
| 25(A). | 9098160071 | [4] | SCREW; CM/SHF METAL | M10X37.5 |
| 25(B). | 1091220160 | [1] | SCREW; CM/SHF METAL | M10X58.5 |
| 25(C). | 1091220190 | [1] | SCREW; CM/SHF METAL | M10X28 |
| 26. | 1096300830 | [6] | GASKET; SET SCREW | |
| 51. | 9091804300 | [4] | RING; SNAP,ROCKER ARM SHAFT | |
| 52. | 9098553920 | [4] | WASHER; ROCKER ARM SHAFT | |
| 53. | 9126200311 | [2] | SHAFT; ROCKER ARM | |
| 55. | 9111290820 | [4] | PLUG; ROCKER SHAFT END | |
| 61. | 9126160530 | [12] | SCREW; ADJ,BRIDGE | A |
| 61. | 1126160420 | [12] | SCREW; ADJ,BRIDGE | |
| 62. | 9098403100 | [12] | NUT; ADJ SCREW LK BRIDGE | M10 |
| 63. | 1126111700 | [12] | BRIDGE | |
| 65. | 1125650010 | [48] | COLLAR; SPLIT | |
| 68. | 9125611410 | [12] | SPRING; VLV | INLET |
| 68. | 1125610630 | [12] | SPRING; VLV | EXH |
| 71(A). | 1125630131 | [24] | SEAT; SPR | |
| 71(B). | 1125630380 | [24] | SEAT; SPR | |
| 72. | 1125690130 | [24] | SEAL; VLV GUIDE | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 75. | 9016662800 | [12] | BOLT; BRKT | M12X80 |
| 76. | 9098519330 | [12] | WASHER; PL,BRKT | M12 |
| 77. | 1126280280 | [6] | BRACKET; ROCKER ARM | |
| 78(A). | 9126114462 | [6] | ARM; ROCKER | |
| 78(B). | 9126114482 | [6] | ARM; ROCKER | |
| 81. | 9126160480 | [12] | SCREW; ADJ,ROCKER ARM | |
| 83. | 9098403090 | [12] | NUT; ADJ SCREW,LK | |
| 88. | 1125750411 | [12] | ROD; PUSH | |
| 89. | 1125711991 | [12] | TAPPET; VLV | |
| 89. | 1125712490 | [12] | TAPPET; VLV | C |
| 89. | 1125712510 | [12] | TAPPET; VLV | |
| 95. | 9099410880 | [4] | SPRING; ROCKER SHAFT | |
| 101. | 1090200660 | [1] | BOLT; THRUST COLLAR | M16X80 |
| 106. | 1095030221 | [1] | WASHER; IDLE GEAR SHAFT | |
| 107. | 1125310232 | [1] | SHAFT; IDLE GEAR | |
| 110. | 1125230940 | [1] | GEAR ASM; IDLE | Z=47 |
| 111. | 1125350050 | [1] | COLLAR; THRUST,IDLE GEAR | |
| 211. | 1091290030 | [12] | BOLT; GUIDE,TAPPET | M8X22 HEX HOLE HEAD |
