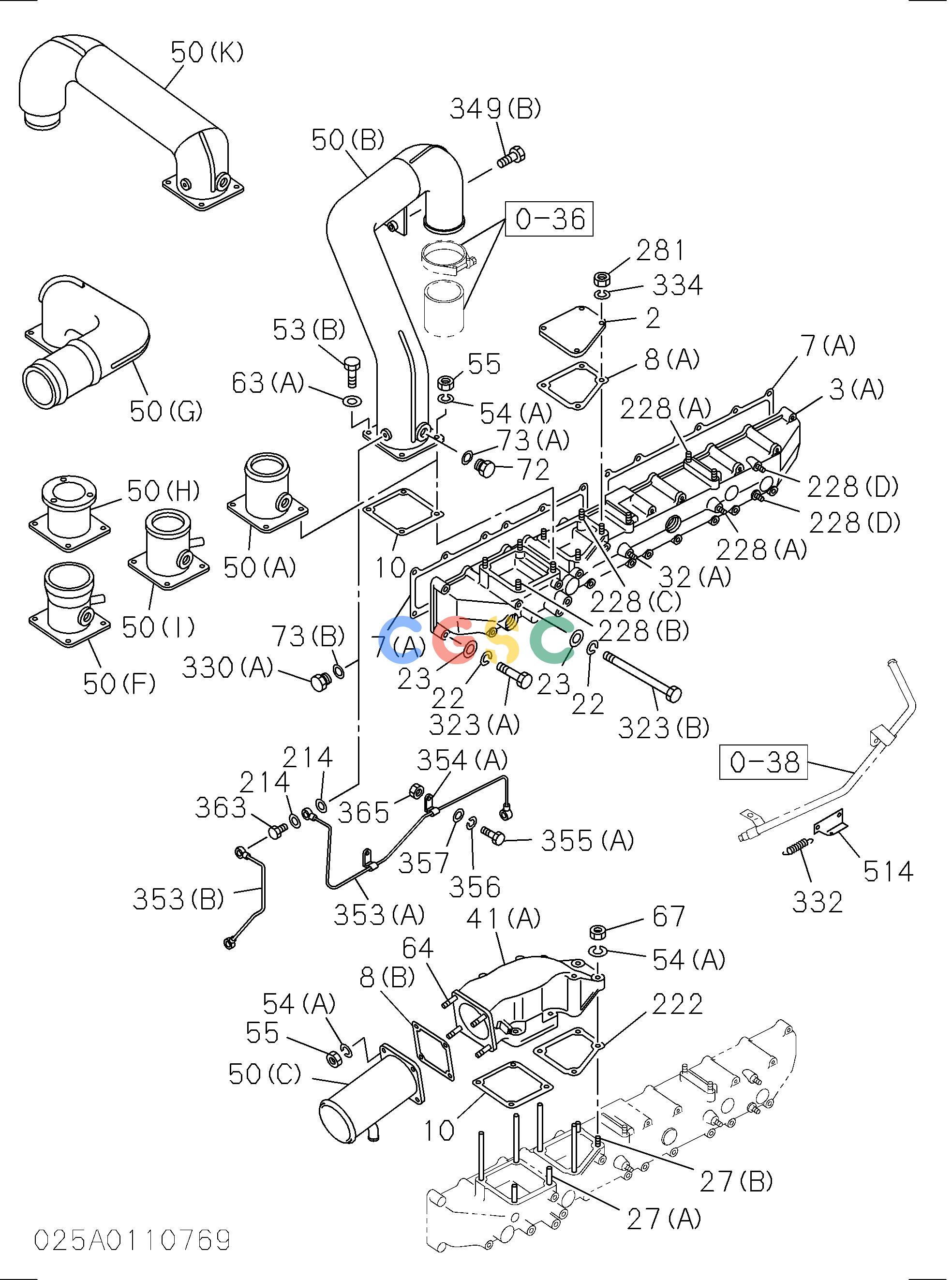

日立零件查询（CX1000）INLET MANIFOLD Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
134 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 3(B). | 1141102250 | [2] | DUCT; INT | |
| 7(B). | 1141150820 | [2] | GASKET; INL MANIF TO HD | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 8(C). | 1141170870 | [2] | GASKET; INT DUCT | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 10. | 1143170400 | [1] | GASKET; INL PIPE TO MANIF | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 22. | 9091505080 | [24] | WASHER; LK,INL MANIF | |
| 23. | 9091646080 | [22] | WASHER; PL,INL MANIF | |
| 32(B). | 9041108300 | [6] | STUD; INL PIPE | M8X30 L=42 |
| 32(C). | 9940105250 | [4] | STUD; INL PIPE | M8X25 L=37 |
| 41(C). | 1141341691 | [1] | DUCT; INT COVER | |
| 47(A). | 9044110180 | [2] | STUD; BRKT,POWER STEERING | M10X18 L=33 |
| 47(B). | 9044110160 | [1] | STUD; BRKT,POWER STEERING | M10X16 L=31 |
| 49. | 9044110160 | [6] | STUD; CABLE | M10X16 L=31 |
| 50(J). | 1141341272 | [1] | PIPE; INL | |
| 51. | 1096500741 | [1] | NIPPLE; BOOST PIPE | M12 & PT1/4 |
| 54(B). | 9091505080 | [6] | WASHER; LK,INL PIPE | |
| 67. | 9091104080 | [6] | NUT; INL DUCT | |
| 68. | 9091605080 | [6] | WASHER; PL,INL DUCT | |
| 70. | 9044110160 | [4] | STUD; WATER PIPE | M10X16 L=31 |
| 71. | 9041106160 | [2] | STUD; FUEL PIPE | M6X16 L=25 |
| 78. | 0501510300 | [4] | BOLT; INL PIPE TO INL MANIF | M10X30 W/LK WASHER |
| 323(A). | 9010658500 | [12] | BOLT; DUCT | M8X50 |
| 323(B). | 9098012730 | [3] | BOLT; DUCT | M8X102 L=116 |
| 323(B). | 9098012760 | [9] | BOLT; DUCT | M8X140 |
| 353(C). | 1141211220 | [1] | PIPE; AIR,BOOST | |
| 354(B). | 9095246320 | [1] | CLIP; AIR PIPE | |
| 354(C). | 9095270060 | [1] | CLIP; AIR PIPE | |
| 355(B). | 0280806120 | [2] | BOLT; CLIP,AIR PIPE | M6X12 FLANGE |
| 562. | 0501408280 | [2] | BOLT; INL DUCT | M8X28 W/WASHER |
