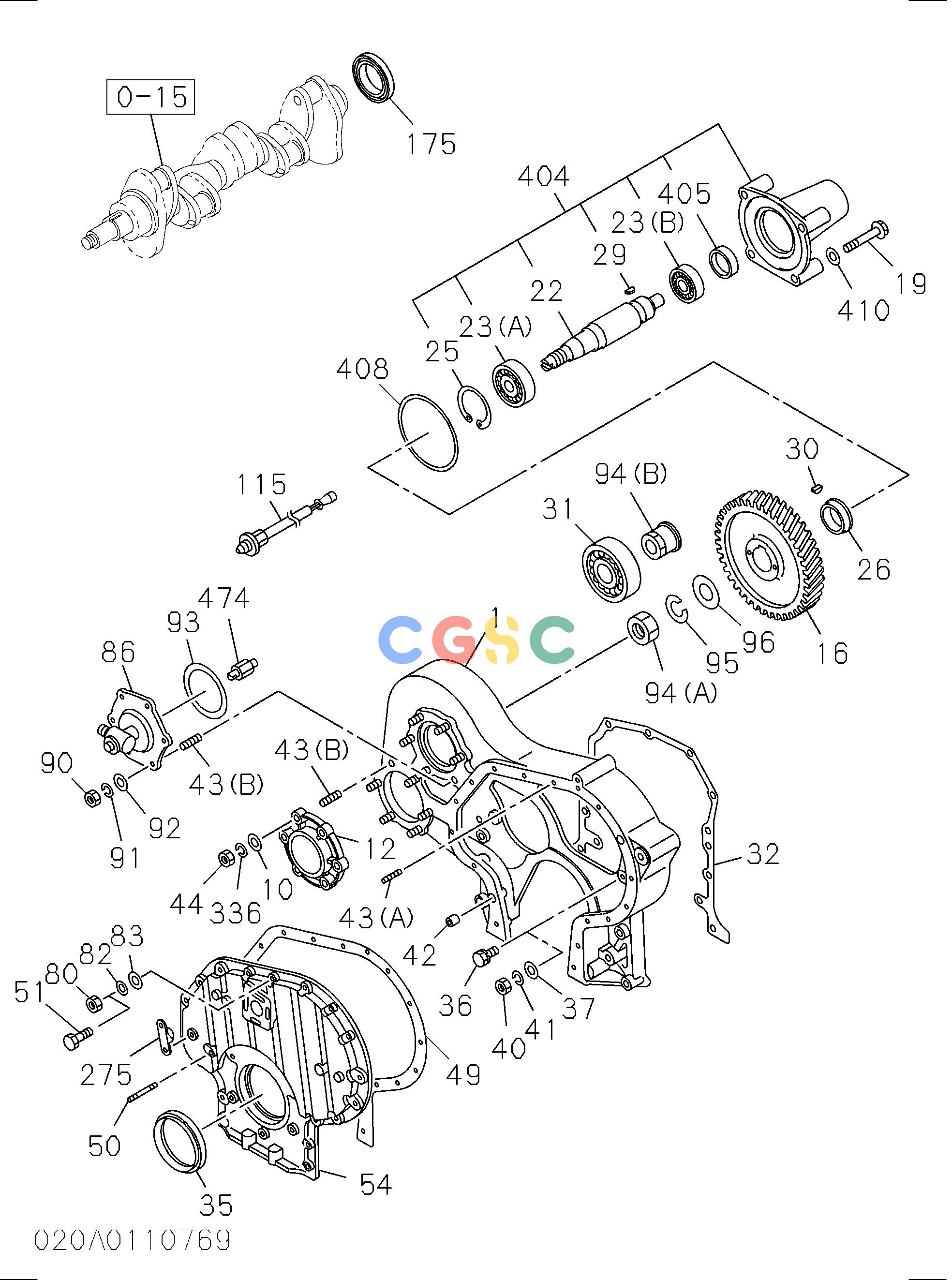

日立零件查询（CX1000）TIMING GEAR CASE AND FLYWHEEL HOUSING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
264 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1113110340 | [1] | CASE; TIMING GEAR | |
| 2(A). | 1113414703 | [1] | HOUSING; FLYWHEEL | |
| 2(A). | 1113416551 | [1] | HOUSING; FLYWHEEL | |
| 10. | 9091605080 | [6] | WASHER; PL,BRG COVER | |
| 12. | 1113250190 | [1] | COVER; BRG,GEAR CASE,FRT | |
| 16. | 1125240131 | [1] | GEAR; INJ PUMP DRIVE | Z=64 |
| 19. | 1090440311 | [4] | BOLT; BRG CASE | |
| 22. | 1125320111 | [1] | SHAFT; DRIVE,INJ PUMP | |
| 23(A). | 1098001180 | [1] | BEARING; DRIVE SHAFT | |
| 23(B). | 1098001170 | [1] | BEARING; DRIVE SHAFT | |
| 25. | 9091805720 | [1] | RING; SNAP,BEARING | |
| 26. | 1113290080 | [1] | ADAPTER | |
| 29. | 9080556220 | [1] | KEY; COUPLING | |
| 30. | 9080555190 | [1] | KEY; DRIVE GEAR | |
| 32. | 1113120160 | [1] | GASKET; GEAR CASE TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 35. | 1096254420 | [1] | SEAL; OIL,CRANKSHAFT FRT | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 36. | 0500512300 | [6] | BOLT; GEAR CASE | M12X30 W/LK WASHER |
| 36. | 0168062650 | [3] | BOLT; GEAR CASE | M12X65 |
| 36. | 9023610280 | [1] | BOLT; GEAR CASE | M10X28 |
| 36. | 0108108350 | [1] | BOLT; GEAR CASE | M8X35 |
| 37. | 9098519500 | [1] | WASHER; PL,GEAR CASE | D=18 T=1.6 |
| 37. | 1095031831 | [1] | WASHER; PL,GEAR CASE | D=19 T=4 |
| 40. | 9991104120 | [3] | NUT; GEAR CASE | |
| 41. | 9091505120 | [6] | WASHER; LK,GEAR CASE | |
| 42. | 9113190652 | [2] | DOWEL; GEAR CASE COVER | |
| 43(A). | 1093020481 | [4] | STUD; BRG COVER | |
| 43(A). | 1093020481 | [4] | STUD; BRG COVER | |
| 43(B). | 1093000500 | [12] | STUD; BRG COVER | |
| 43(B). | 1093000500 | [12] | STUD; BRG COVER | |
| 44. | 9091104080 | [6] | NUT; BRG COVER | M8 |
| 49. | 1113220510 | [1] | GASKET; GEAR CASE TO COVER | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 51. | 0501510350 | [8] | BOLT; GEAR CASE COVER | M10X35 W/LK WASHER |
| 51. | 0501510450 | [1] | BOLT; GEAR CASE COVER | M10X45 W/WASHER |
| 51. | 0501510250 | [3] | BOLT; GEAR CASE COVER | M10X25 W/WASHER |
| 51. | 0238010350 | [2] | BOLT; GEAR CASE COVER | M10X35 |
| 54. | 1113210234 | [1] | COVER; GEAR CASE | |
| 80. | 9091104100 | [4] | NUT; COVER | |
| 80. | 9091104100 | [4] | NUT; COVER | |
| 82. | 9091505100 | [4] | WASHER; LK,COVER | |
| 82. | 9091505100 | [4] | WASHER; LK,COVER | |
| 83. | 9091605100 | [4] | WASHER; PL,COVER | |
| 86. | 1858600441 | [1] | ELBOW; TACHOMETER DRIVE | |
| 90. | 9091104080 | [6] | NUT; ELBOW | |
| 91. | 9091505080 | [6] | WASHER; LK,ELBOW | |
| 92. | 9091605080 | [6] | WASHER; PL,ELBOW | |
| 93. | 1096234670 | [1] | GASKET; ELBOW | |
| 94(A). | 9991115240 | [1] | NUT; GEAR | |
| 95. | 9091505240 | [1] | WASHER; LK,GEAR | |
| 96. | 9091605240 | [1] | WASHER; PL,GEAR | |
| 115. | 1815104651 | [1] | SENSOR; REVOLUTION,ENG SPD | |
| 175. | 1096254410 | [1] | SEAL; OIL,CR/SHF,RR | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 204. | 9091505140 | [1] | WASHER; LK,HSG | |
| 205. | 9991104140 | [1] | NUT; HSG | |
| 206. | 9113490490 | [1] | COVER; STARTER CHECK HOLE | |
| 211. | 1090330020 | [10] | BOLT; HSG | M14X50 W/LK WASHER |
| 211. | 1090330030 | [2] | BOLT; HSG | M14X55 W/LK WASHER |
| 211. | 0501408400 | [6] | BOLT; HSG | M8X40 W/WASHER |
| 213(A). | 9113420190 | [1] | POINTER; FLYWHEEL HSG | |
| 224. | 9044114350 | [3] | STUD; STARTER | M14X35 L=56 |
| 229. | 1113490730 | [1] | COVER; TIMING CHECK HOLE | A |
| 229. | 1113491220 | [1] | COVER; TIMING CHECK HOLE | |
| 231. | 9019008120 | [2] | BOLT; COVER | A M8X12 W/LK WASHER |
| 231. | 0500408120 | [2] | BOLT; COVER | M8X12 W/LK WASHER |
| 275. | 1113270180 | [1] | POINTER; TIMING CHECK HOLE | |
| 275. | 1113270180 | [1] | POINTER; TIMING CHECK HOLE | |
| 336. | 9091505080 | [6] | WASHER; LK,BRG COVER | |
| 404. | 1125300111 | [1] | CASE ASM; BRG,INJ PUMP | |
| 405. | 1096251340 | [1] | SEAL; OIL,BRG CASE | |
| 408. | 1096234680 | [1] | GASKET; BRG CASE TO GEAR CASE | |
| 410. | 1096234690 | [8] | GASKET; BRG CASE | |
