沃尔沃零件查询MD2010-C; MD2010-D; MD2020-C; MD2020-D; MD2030-C; MD2030-D; MD2040-C; MD2040-D; 120S-D; 120S-ECooling SystemExpansion TankEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
428 次

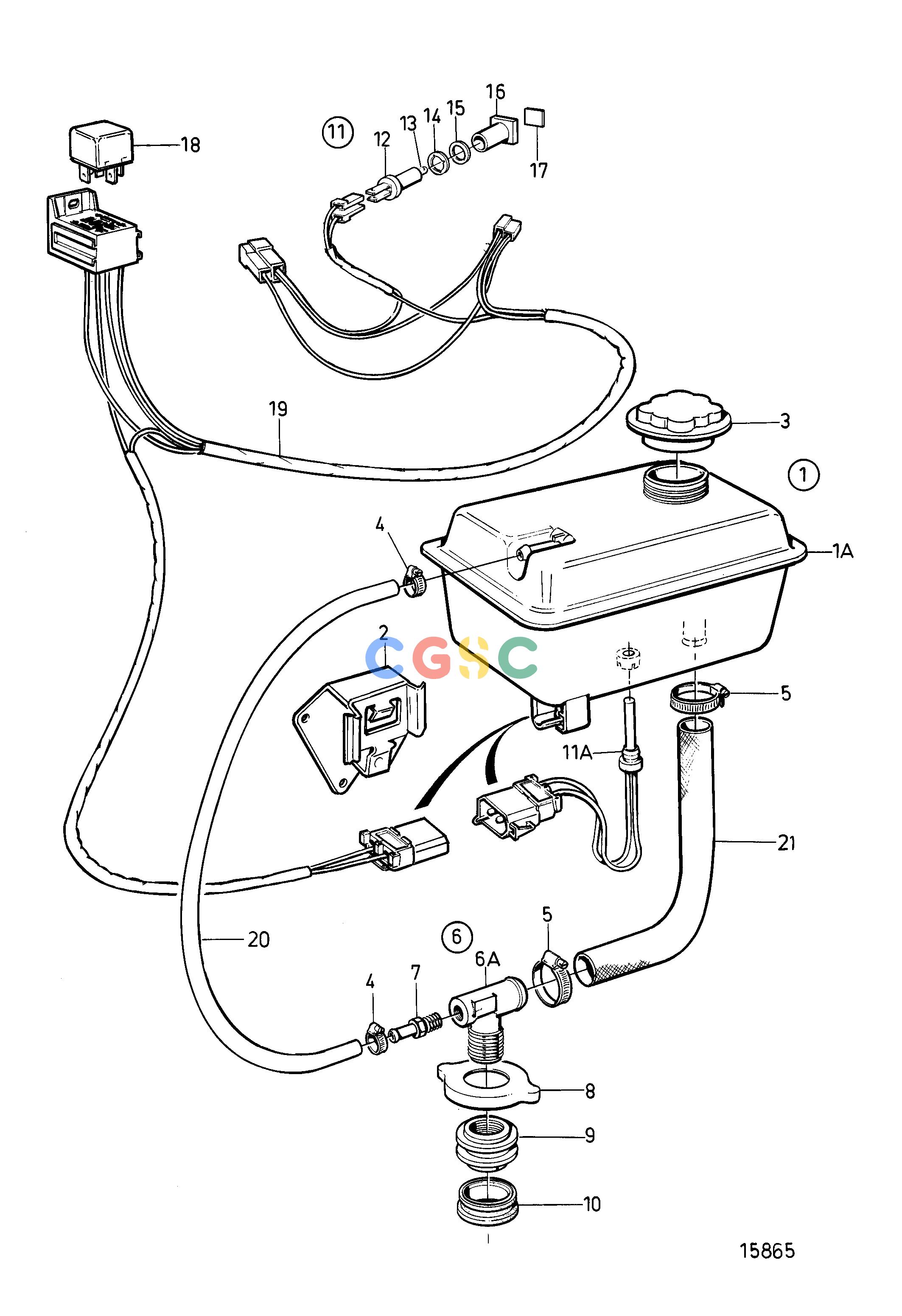

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3581427
|
[1] |
Expansion tank
|
(861745)
|
| 1A. |
861105
|
[1] |
Expansion tank
|
|
| 2. |
3582351
|
[1] |
Bracket
|
|
| 3. |
1674083
|
[1] |
Pressure cap
|
75kPa (1357775)
|
| 4. |
961663
|
[2] |
Hose clamp
|
|
| 5. |
961666
|
[2] |
Hose clamp
|
|
| 6. |
3581441
|
[1] |
Hose connection
|
(861741)
|
| 6A. |
943516
|
[1] |
Elbow nipple
|
|
| 7. |
860558
|
[1] |
Hose coupling
|
|
| 8. |
861740
|
[1] |
Cap
|
|
| 9. |
3581430
|
[1] |
Sealing retainer
|
|
| 10. |
1543751
|
[1] |
Sealing ring
|
|
| 11. |
861759
|
[1] |
Level guard
|
|
| 11A. |
3547710
|
[1] |
Level guard
|
|
| 12. |
808175
|
[1] |
Bulb socket
|
|
| 13. |
19923
|
[1] |
Bulb
|
12V, 2W
|
| 14. |
967583
|
[1] |
Retainer
|
|
| 15. |
829714
|
[1] |
Sealing ring
|
|
| 16. |
838455
|
[1] |
Retainer
|
|
| 17. |
3825092
|
[1] |
Symbol strip
|
|
| 18. |
873765
|
[1] |
Relay
|
(873765)
|
| 19. |
7740690_115
|
|
cables and terminals
|
|
| 20. |
942700
|
[1] |
Hose
|
|
| 21. |
952970
|
[1] |
Hose
|
|
