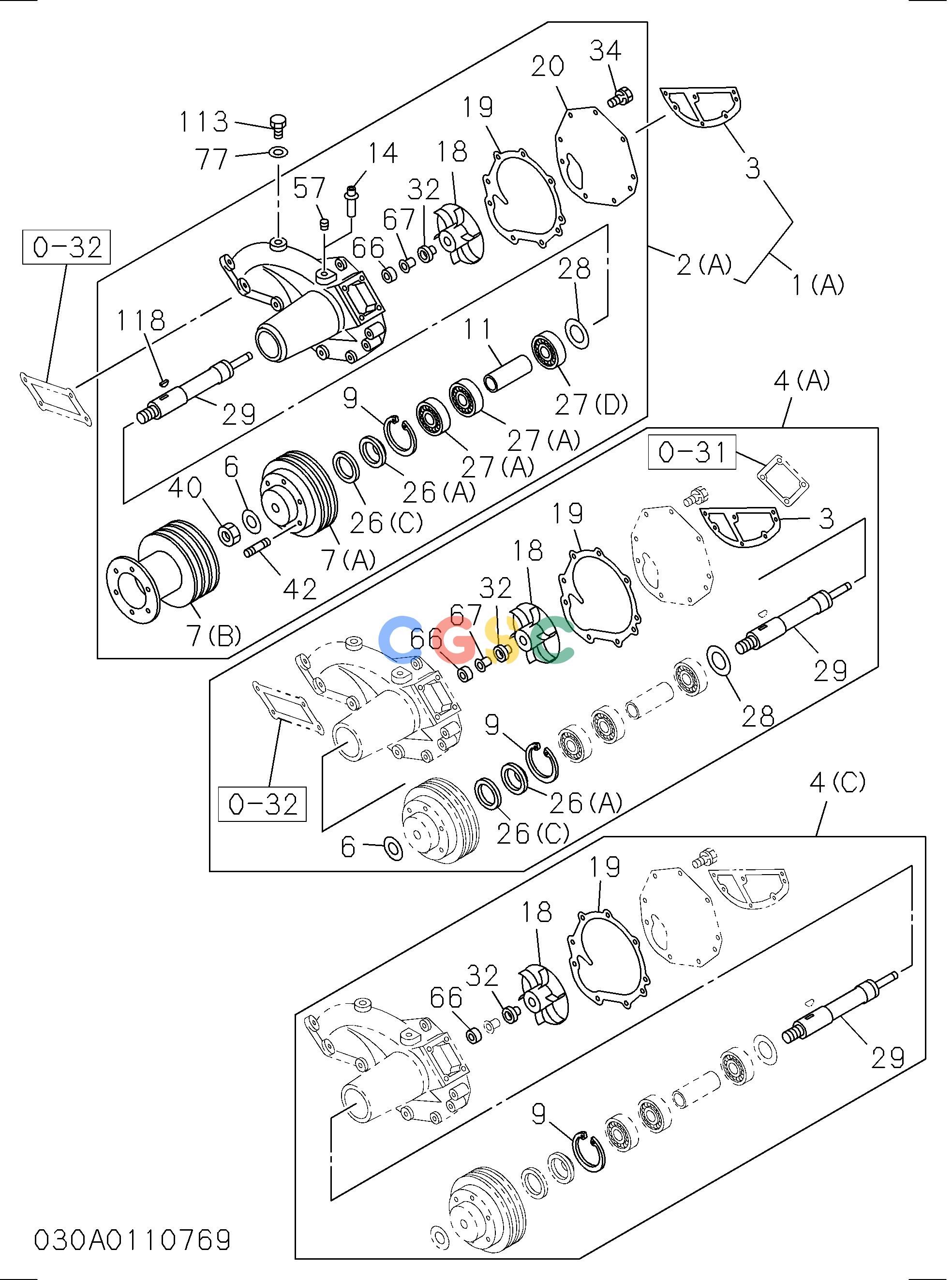

日立零件查询（CX1000）WATER PUMP AND CORROSION RESISTOR Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
230 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(A). | 1136500931 | [1] | PUMP ASM; WATER,W/GASKET | |
| 2(A). | 1136107622 | [1] | PUMP ASM; WATER | |
| 3. | 1117790140 | [1] | GASKET; PUMP TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 3. | 1136140140 | [1] | GASKET; PUMP TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 4(A). | 1878106632 | [1] | REPAIR KIT; WATER PUMP | |
| 4(C). | 1878121230 | [1] | REPAIR KIT; WATER PUMP | |
| 6. | 1095030160 | [1] | WASHER; PL,PULLEY | |
| 6. | 1095030160 | [1] | WASHER; PL,PULLEY | |
| 7(B). | 1136411500 | [1] | PULLEY; WATER PUMP | 3-GROOVE |
| 9. | 9091801720 | [1] | RING; SNAP,WATER PUMP | |
| 11. | 1136340190 | [1] | SPACER; BRG,WATER PUMP | |
| 14. | 9099036310 | [1] | CONNECTOR; JOINT | |
| 18. | 1136210260 | [1] | IMPELLER; WATER PUMP | |
| 18. | 1136210630 | [1] | IMPELLER; WATER PUMP | |
| 19. | 1136130420 | [1] | GASKET; COVER TO BODY | |
| 20. | 1136120320 | [1] | COVER; WATER PUMP | |
| 24. | 0168062650 | [2] | BOLT; WATER PUMP | M12X65 |
| 24. | 0168062600 | [3] | BOLT; WATER PUMP | M12X60 |
| 26(A). | 1136390060 | [1] | COVER; DUST,WATER PUMP | |
| 26(A). | 1136390060 | [1] | COVER; DUST,WATER PUMP | |
| 26(C). | 1136390070 | [1] | COVER; DUST,WATER PUMP | |
| 26(C). | 1136390070 | [1] | COVER; DUST,WATER PUMP | |
| 27(A). | 1098001770 | [2] | BEARING; WATER PUMP | |
| 27(A). | 1098001770 | [2] | BEARING; WATER PUMP | |
| 27(D). | 9000901150 | [1] | BEARING; WATER PUMP | |
| 27(D). | 9000901150 | [1] | BEARING; WATER PUMP | |
| 28. | 1136190200 | [1] | WASHER; WATER PUMP | |
| 28. | 1136190200 | [1] | WASHER; WATER PUMP | |
| 29. | 1136310630 | [1] | SHAFT; WATER PUMP | |
| 29. | 1136310960 | [1] | SHAFT; WATER PUMP | |
| 32. | 1136200160 | [1] | SEAL UNIT; WATER PUMP | |
| 32. | 8943920900 | [1] | SEAL UNIT; WATER PUMP | |
| 34. | 9019108180 | [3] | SCREW; COVER TO BODY,WATER PUMP | M8X18 W/LK WASHER |
| 40. | 9098403070 | [1] | NUT; WATER PUMP | |
| 40. | 9098403070 | [1] | NUT; WATER PUMP | |
| 52. | 9091505120 | [6] | WASHER; LK,WATER PUMP | |
| 66. | 1096254370 | [1] | SEAL; SECONDARY | |
| 73. | 1093020650 | [1] | STUD; WATER PUMP | |
| 77. | 1096300850 | [1] | GASKET; PLUG,WATER PUMP | |
| 113. | 9992023140 | [1] | PLUG; WATER PUMP | |
| 118. | 9080507220 | [1] | KEY; PULLEY | |
| 118. | 9080507220 | [1] | KEY; PULLEY | |
| 125. | 9991104120 | [1] | NUT; WATER PUMP | |
