日立零件查询（CX1000）THERMOSTAT AND HOUSING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
456 次

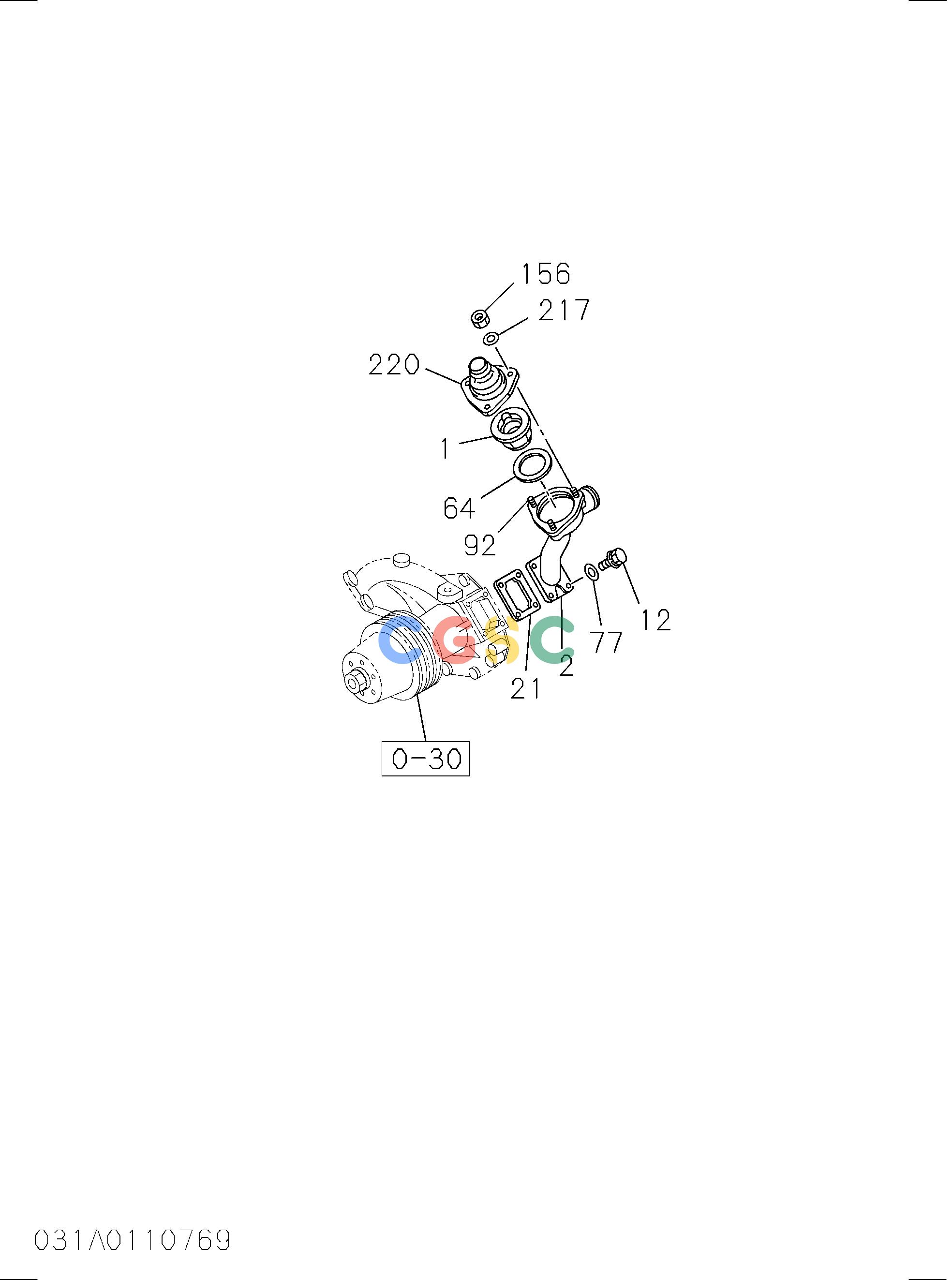

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1137700550 | [1] | THERMOSTAT | 82ﾟC |
| 2. | 9137160561 | [1] | HOUSING; THERMOSTAT | |
| 12. | 0501408280 | [4] | BOLT; HSG | M8X28 W/WASHER |
| 21. | 1137420170 | [1] | GASKET; PUMP TO HSG | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 64. | 1137420040 | [1] | GASKET; OUTLET PIPE TO HSG | |
| 92. | 9043110160 | [3] | STUD; HSG,THERMOSTAT | |
| 156. | 9091104100 | [3] | NUT; JOINT | |
| 217. | 9091505100 | [3] | WASHER; LK,JOINT | |
| 220. | 1137130350 | [1] | JOINT; THERMOSTAT | |
