日立零件查询（CX1000）WATER PIPING; ENGINE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
483 次

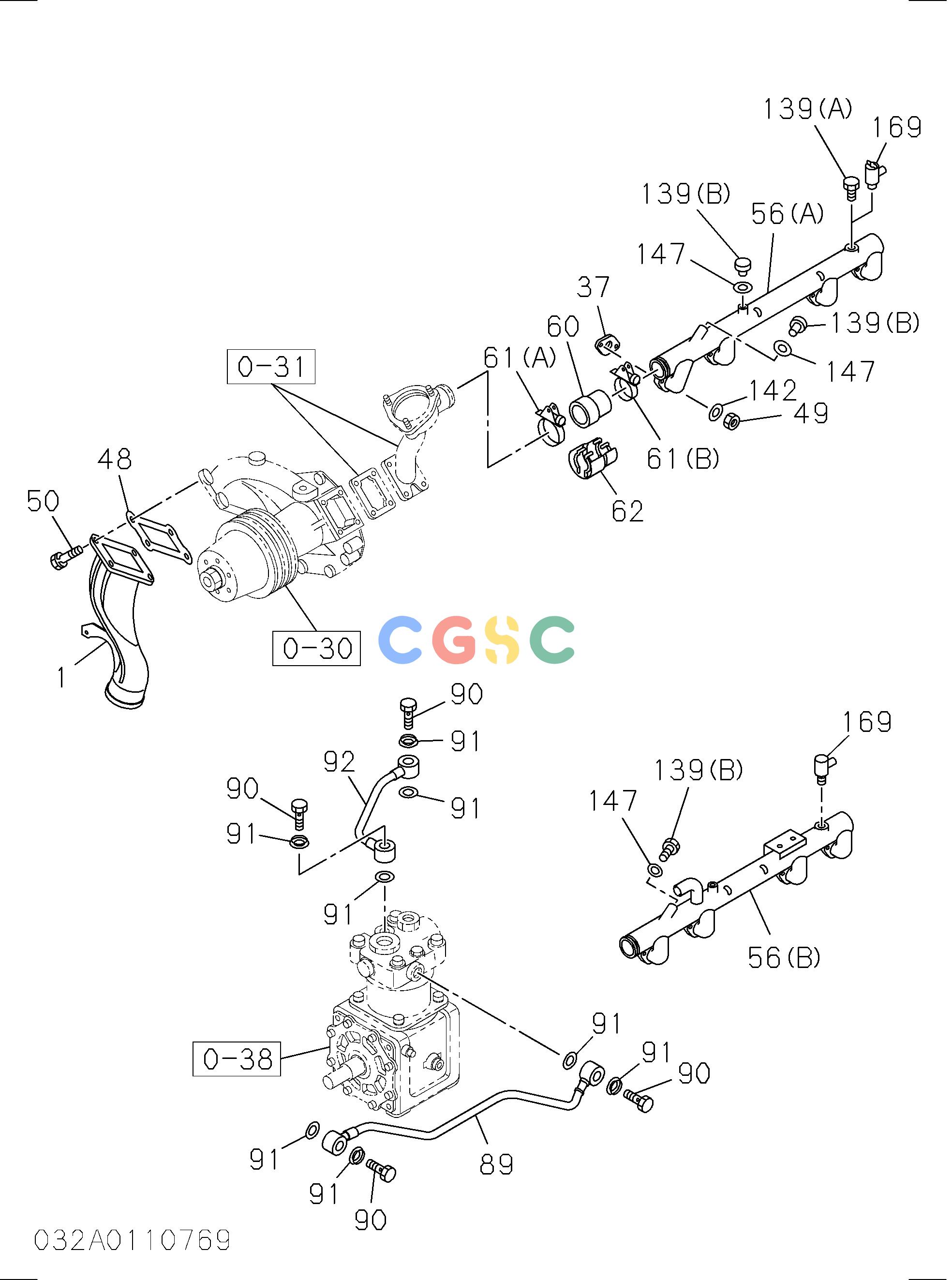

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1137115350 | [1] | PIPE; WATER PUMP,INL | |
| 1. | 1137115350 | [1] | PIPE; WATER PUMP,INL | |
| 37. | 1137410120 | [4] | GASKET; WATER PIPE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 48. | 1137410110 | [1] | GASKET; PIPE TO PUMP | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 49. | 9091104080 | [8] | NUT; WATER PIPE | |
| 50. | 0501408220 | [4] | BOLT; WATER PIPE INL | M8X22 W/WASHER |
| 56(A). | 1137116771 | [1] | PIPE; WATER OUTLET | |
| 60. | 1093605250 | [1] | HOSE; OUTLET PIPE TO HSG | |
| 61(A). | 1097040780 | [1] | CLIP; HOSE,OUTLET PIPE TO HSG | |
| 61(B). | 1097040670 | [1] | CLIP; HOSE,OUTLET PIPE TO HSG | |
| 62. | 9141811291 | [1] | PROTECTOR; HEAT,RUB HOSE,OUTLET PIPE | |
| 139(B). | 9992023160 | [1] | PLUG; WATER PIPE | M16X12 |
| 142. | 9091505080 | [8] | WASHER; LK,WATER PIPE | |
| 147. | 1096300860 | [1] | GASKET | ALSO INCLUDED IN GASKET SET(ENGINE) |
