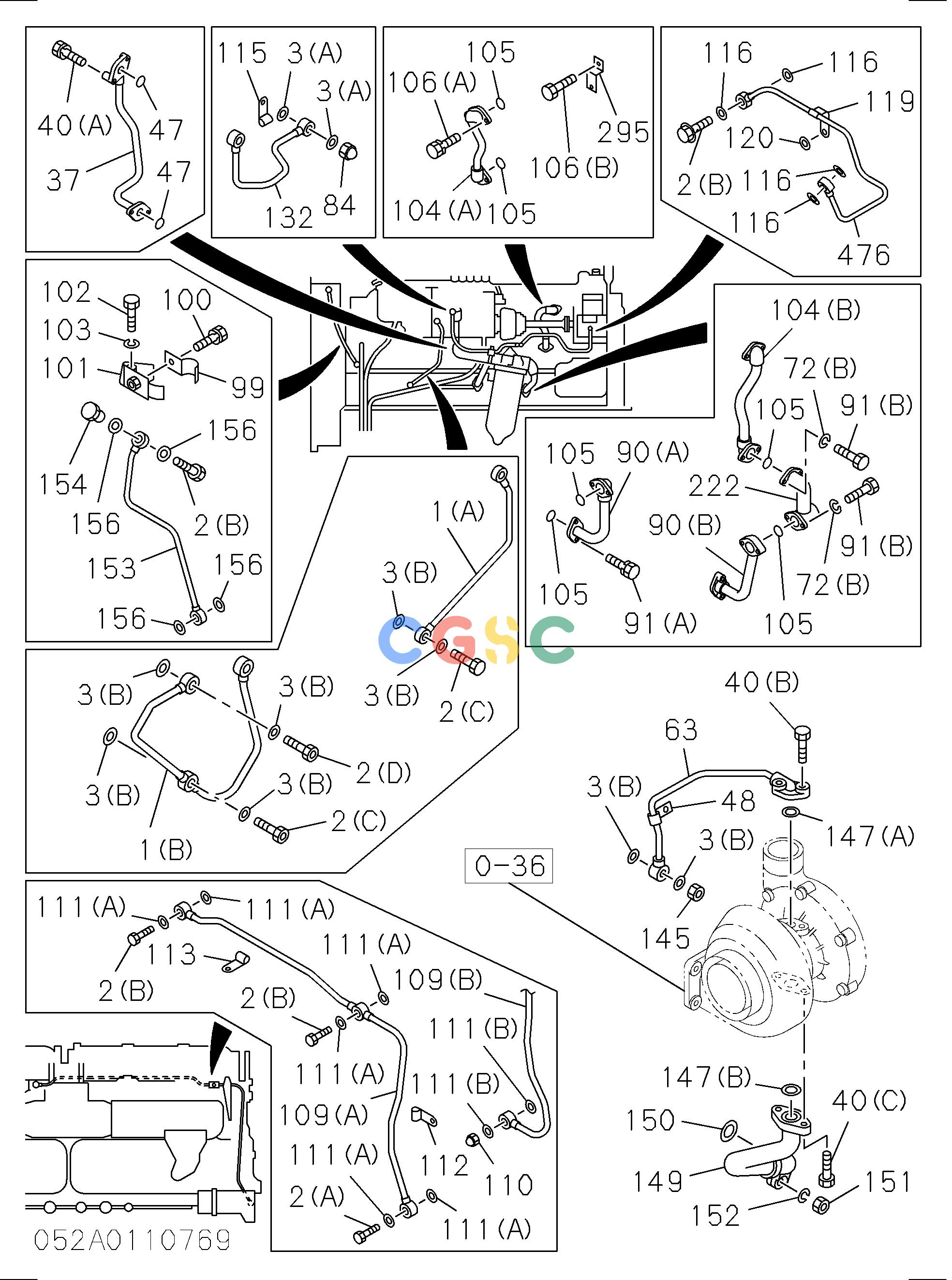

| 1(A). | 9133126750 | [1] | PIPE; OIL,INJ PUMP TO C/BL | |
| 2(B). | 1096750770 | [2] | BOLT; EYE,OIL PIPE | M10X21 |
| 2(C). | 1096750850 | [1] | BOLT; EYE,OIL PIPE | M12X27 |
| 3(A). | 1096300830 | [2] | GASKET; EYE BOLT,OIL PIPE | |
| 3(B). | 1096300840 | [4] | GASKET; EYE BOLT,OIL PIPE | |
| 21. | 1133451051 | [1] | STAY; OIL PIPE | |
| 37. | 1133118400 | [1] | PIPE; OIL,FILTER TO COOLER | |
| 40(A). | 0500408220 | [5] | BOLT; OIL PIPE | M8X22 W/LK WASHER |
| 40(A). | 0500408320 | [1] | BOLT; OIL PIPE | M8X32 W/LK WASHER |
| 40(B). | 0500408320 | [2] | BOLT; OIL PIPE | M8X32 W/LK WASHER |
| 44. | 0501408200 | [1] | BOLT; CLIP,OIL PIPE | M8X20 W/WASHER |
| 47. | 1096234500 | [2] | GASKET; OIL PIPE | |
| 48. | 1097003320 | [1] | CLIP; OIL PIPE | |
| 54(B). | 1133451460 | [1] | STAY; OIL STRAINER | |
| 54(D). | 1133451470 | [1] | STAY; OIL STRAINER | |
| 62. | 1133117041 | [1] | PIPE; OIL,PUMP TO C/BL | |
| 63. | 1133124620 | [1] | PIPE; OIL,TURBOCHARGER FEED | |
| 72(A). | 9091505100 | [1] | WASHER; LK,OIL PIPE | |
| 72(B). | 9091505080 | [2] | WASHER; LK,OIL PIPE | |
| 74. | 9091104080 | [1] | NUT; CLIP,OIL PIPE,PUMP TO BODY | |
| 76. | 9091606080 | [1] | WASHER; CLIP | |
| 77. | 0500408160 | [1] | BOLT; STAY,PUMP TO BODY | M8X16 W/LK WASHER |
| 78(A). | 0168060550 | [1] | BOLT; OIL PIPE,PUMP TO BODY | M10X55 |
| 78(A). | 0500510220 | [1] | BOLT; OIL PIPE,PUMP TO BODY | M10X22 W/LK WASHER |
| 78(B). | 0108058700 | [2] | BOLT; OIL PIPE,PUMP TO BODY | M8X70 |
| 81. | 0500408350 | [2] | BOLT; OIL PIPE,BODY TO BODY | M8X35 W/LK WASHER |
| 84. | 9098440220 | [1] | NUT; CAP,OIL PIPE | |
| 90(A). | 9133125081 | [1] | PIPE ASM; OIL,C/BL TO FILTER | |
| 91(A). | 0500408220 | [3] | BOLT; OIL PIPE,BODY TO FILTER | M8X22 W/LK WASHER |
| 91(A). | 0500408400 | [1] | BOLT; OIL PIPE,BODY TO FILTER | M8X40 W/LK WASHER |
| 99. | 1097006340 | [1] | CLIP; OIL PIPE,FILTER TO COOLER | |
| 100. | 0500410200 | [1] | BOLT; CLIP | M10X20 W/LK WASHER |
| 101. | 1133451180 | [1] | BRACKET; CLIP | |
| 102. | 0238014250 | [1] | BOLT; BRKT | M14X25 |
| 103. | 9091505140 | [1] | WASHER; LK,BRKT | |
| 104(A). | 1133113041 | [1] | PIPE ASM; OIL,COOLER TO BODY | |
| 105. | 1096234500 | [4] | GASKET; OIL PIPE,COOLER TO BODY | |
| 106(A). | 0500408220 | [2] | BOLT; OIL PIPE,COOLER TO BODY | M8X22 W/LK WASHER |
| 109(B). | 1133126390 | [1] | PIPE ASM; OIL,BODY TO HD | |
| 110. | 9098446321 | [1] | NUT; CAP OIL PIPE | |
| 111(A). | 1096300830 | [4] | GASKET; JOINT,OIL PIPE,BODY TO HD | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 111(B). | 1096300840 | [2] | GASKET; JOINT,OIL PIPE,BODY TO HD | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 112. | 1097001440 | [1] | CLIP; OIL PIPE,TAP CHAMBER CVR | |
| 113. | 1097004440 | [1] | CLIP; WATER OUTLET PIPE | |
| 114. | 1133117031 | [1] | PIPE ASM; OIL,BODY | |
| 115. | 9099176490 | [1] | CLIP; PIPE,INJ PUMP | |
| 132. | 9133124141 | [1] | PIPE ASM; OIL,INJ PUMP FEED | |
| 145. | 9098446321 | [1] | NUT; CAP,OIL PIPE,TURBOCHARGER FEED | |
| 147(A). | 1096232740 | [1] | GASKET; OIL PIPE TO TURBOCHARGER | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 147(B). | 1096233590 | [1] | GASKET; OIL PIPE TO TURBOCHARGER | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 149. | 1133126130 | [1] | PIPE; OIL RETURN,TURBOCHARGER | |
| 150. | 1096232970 | [1] | GASKET; OIL PIPE TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 151. | 9091104080 | [2] | NUT; PIPE,TURBOCHARGER RETAINER | |
| 152. | 9091505080 | [2] | WASHER; LK,OIL PIPE,TURBOCHARGER | |
| 357. | 5095031110 | [4] | WASHER; PL,STAY | |
| 371. | 0500408160 | [4] | BOLT; STAY | M8X16 W/LK WASHER |
