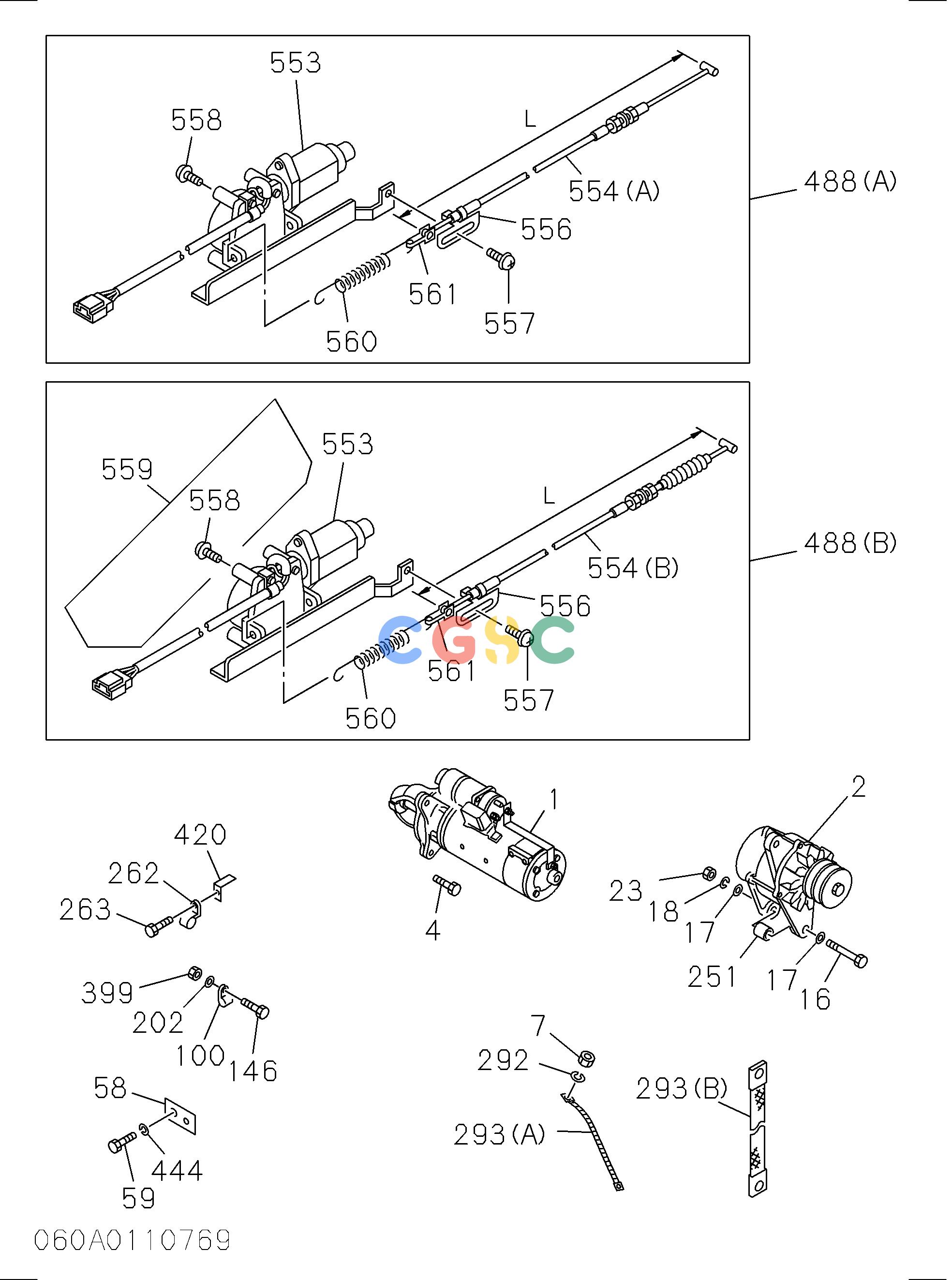

日立零件查询（CX1000）ENGINE ELECTRICAL CONTROL PARTS Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
152 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1811001801 | [1] | STARTER ASM | 24V-11KW HITACHISEE FIG-NO 0-65 FOR COMPONENT. |
| 2. | 1812004790 | [1] | GENERATOR ASM | 24V-40A NIKKOSEE FIG-NO 0-66 FOR COMPONENT. |
| 2. | 1812005280 | [1] | GENERATOR ASM | 24V-40A MITSUBISHISEE FIG-NO 0-66 FOR COMPONENT. |
| 7. | 9991104140 | [3] | NUT; STARTER | |
| 16. | 9098012041 | [1] | BOLT; GEN | M14X123 |
| 16. | 9098012041 | [1] | BOLT; GEN | M14X123 |
| 17. | 9091607140 | [1] | WASHER; PL,GEN | |
| 23. | 0911501140 | [1] | NUT; GEN | |
| 56(A). | 1824100092 | [1] | SWITCH; OIL PRESSURE WARNING | |
| 251. | 1197190170 | [1] | SPACER; GEN | |
| 262. | 1097091780 | [2] | CLIP; HARNESS | D=6 |
| 292. | 9091505140 | [3] | WASHER; LK,STARTER | |
| 293(B). | 9829322900 | [1] | CABLE; STARTER EARTH | |
| 415. | 1826403510 | [1] | CABLE; OIL PRESS SW TO OIL FILTER | |
| 420. | 1191992440 | [1] | BRACKET; HARNESS | |
| 424(B). | 1825530390 | [1] | RELAY; SAFETY,STARTER | NIKKO |
| 424(B). | 1825530440 | [1] | RELAY; SAFETY,STARTER | HITACHI |
| 431. | 1825501980 | [1] | TIMER; INT HTR,ENG | |
| 432. | 1813750020 | [1] | RESISTOR; INT HTR | |
| 433. | 8942580140 | [2] | RELAY; INT HTR | |
| 455. | 1824500130 | [1] | SWITCH; ENG OVER HEAT,WATER | |
| 488(B). | 1819002391 | [1] | STOPPER; ENG | |
| 488(B). | 1819002550 | [1] | STOPPER; ENG | |
| 554(B). | 1809091040 | [1] | CABLE ASM; ENG STOP | L=635 |
| 554(B). | 1819091070 | [1] | CABLE ASM; ENG STOP | L=635 |
| 556. | 8941548610 | [1] | CLAMP; CABLE,ENG STOP | |
| 557. | 9039105100 | [1] | SCREW; CABLE CLAMP | |
| 558. | 9039106160 | [3] | SCREW; BRKT TO MOTOR | |
