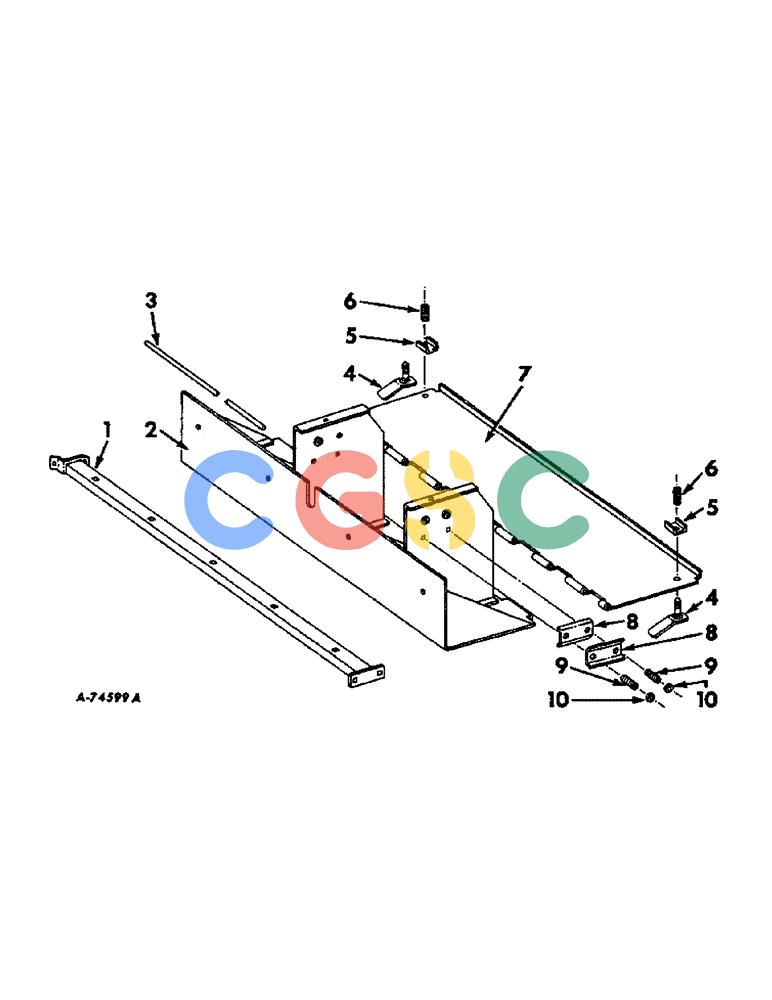

| 1. |
662403R91
|
[1] |
|
P
SUPPORT, twine can cpt.
|
| . . |
14995R1
|
[2] |
BOLT
|
IH
cge. 3/8 x 3/4 Superseded by part number: 19284R1
|
| . . |
80280503
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
|
BEL
BOLT, cge. 3/8 x 1
|
| . . |
102635
|
[4] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| . . |
103321
|
[4] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 2. |
662371R91
|
[1] |
CAM
|
IH
CAN, twine cpt.
|
| . . |
14994R1
|
[5] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
|
IH
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2 Superseded by part number: 434-512
|
| . . |
9635082
|
[5] |
NUT,5/16" - 18, Gr 5
|
NH
5/16
|
| . . |
103320
|
[5] |
LOCK WASHER,5/16"
|
IH
WASHER, LOCK, 5/16" Superseded by part number: 322358, 83990583
|
| . . |
137352
|
[2] |
|
P
SCREW, truss head. sl. 1/4 x 5/8
|
| . . |
109084
|
[2] |
NUT,1/4"-20, G5
|
IH
Superseded by part number: 7770
|
| . . |
103319
|
[2] |
LOCK WASHER,1/4"
|
IH
WASHER, LOCK, 1/4" Superseded by part number: 92-11025
|
| 3. |
662409R1
|
[1] |
ROD
|
IH
twine can door pivot
|
| 4. |
668035R11
|
[2] |
LATCH
|
IH
twine can door cpt.
|
| . . |
15054R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2
|
IH
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 3/4", G2 Superseded by part number: 111-381
|
| 5. |
668036R1
|
[2] |
PAWL
|
IH
twine can fastener
|
| 6. |
354746R1
|
[2] |
SPRING
|
IH
twine can door fastener
|
| . . |
Q1597
|
[2] |
WASHER
|
IH
13/32 x 3/4, 16 ga. Superseded by part number: 86632580
|
| . . |
664645R1
|
[2] |
LOCK NUT,3/8"-16, GB
|
IH
NUT, Mc Clean Fogg lock 3/8 Superseded by part number: 231-4206
|
| 7. |
662386R1
|
[1] |
DOOR
|
IH
twine can Superseded by part number: 662386R2
|
| 8. |
662380R1
|
[2] |
GUIDE
|
IH
PLATE, twine tension
|
| 9. |
76DS
|
[2] |
SPRING
|
IH
twine tension
|
| 10. |
B32120
|
[2] |
WASHER
|
IH
twine roller spring cup
|
| . . |
18635R1
|
[2] |
BOLT,Short NK, 1/4"-20 x 3", G2
|
IH
1/4 x 3 znd crg Superseded by part number: 111-115
|
| . . |
665621R1
|
[2] |
|
P
NUT, wing
|
