纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (04-001) - TOOLS & ACCESSORY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
262 次

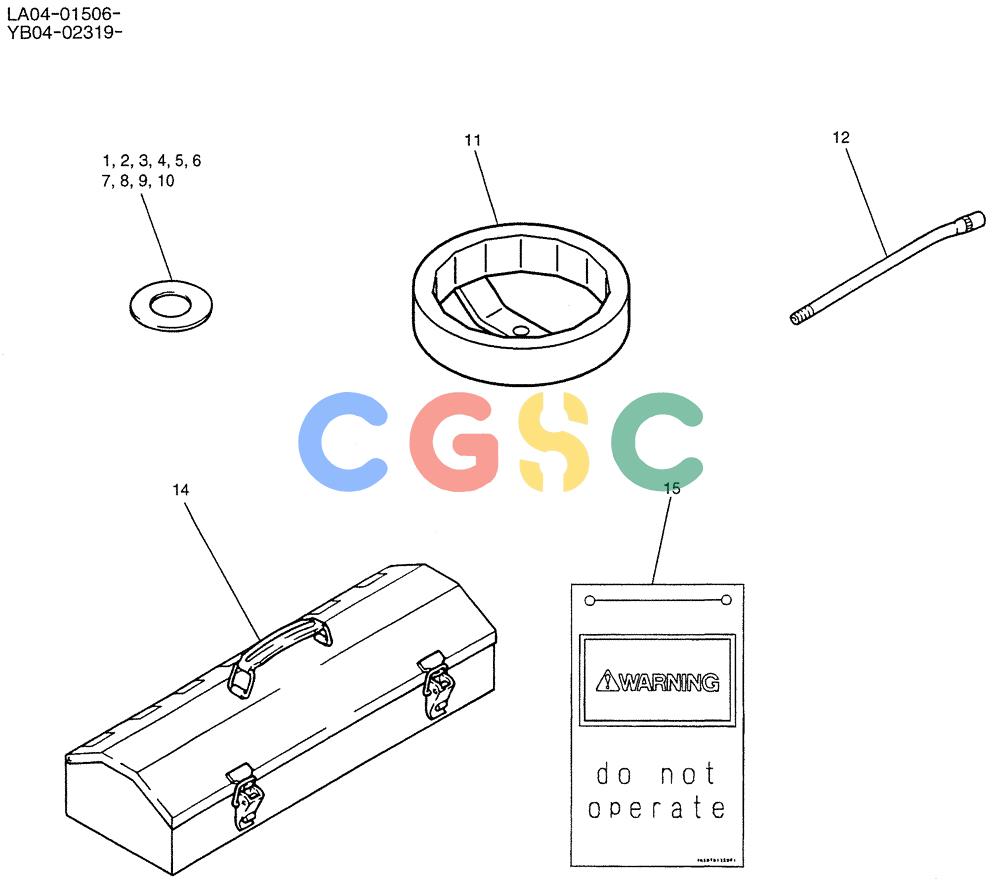

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB01T00002F5 | [1] | TOOL & ACCESSORY | |
| 1. | B16T0442D1 | [1] | SHIM,130mm OD x 72mm ID x 1.2mm Thk | KOB(1.2) |
| 2. | B16T0442D2 | [1] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOB(1.6) |
| 3. | B16T0442D3 | [5] | SHIM,150mm OD x 82mm ID x 1.2mm Thk | KOB(1.2) |
| 4. | B16T0442D4 | [3] | SHIM,0.9mm Thk | KOB(1.6) |
| 5. | B16T0442D13 | [1] | SHIM,160mm OD x 92mm ID x 1.2mm Thk | KOB(1.2) |
| 6. | B16T0442D14 | [1] | SHIM,160mm OD x 92mm ID x 1.6mm Thk | KOB(1.6) |
| 7. | B16T0442D15 | [1] | SHIM,160mm OD x 92mm ID x 2.3mm Thk | KOB(2.3) |
| 8. | B16T0442D37 | [1] | SHIM,155mm OD x 87mm ID x 1.6mm Thk | KOB(1.6) |
| 9. | B16T0442D39 | [1] | SHIM,82mm ID x 150mm OD x 0.9mm Thk | KOB(0.9) |
| 10. | B16T0442D48 | [1] | SHIM,160mm OD x 87mm ID x 1.2mm Thk | KOB(1.2) |
| 12. | 2421R140 | [1] | NOZZLE | KOB |
| 14. | YW01TU0001F1 | [1] | TOOL BOX | KOBASSY, SEE FIG. 04-002 |
| 15. | YN20T01320P1 | [1] | LABEL | KOB |
