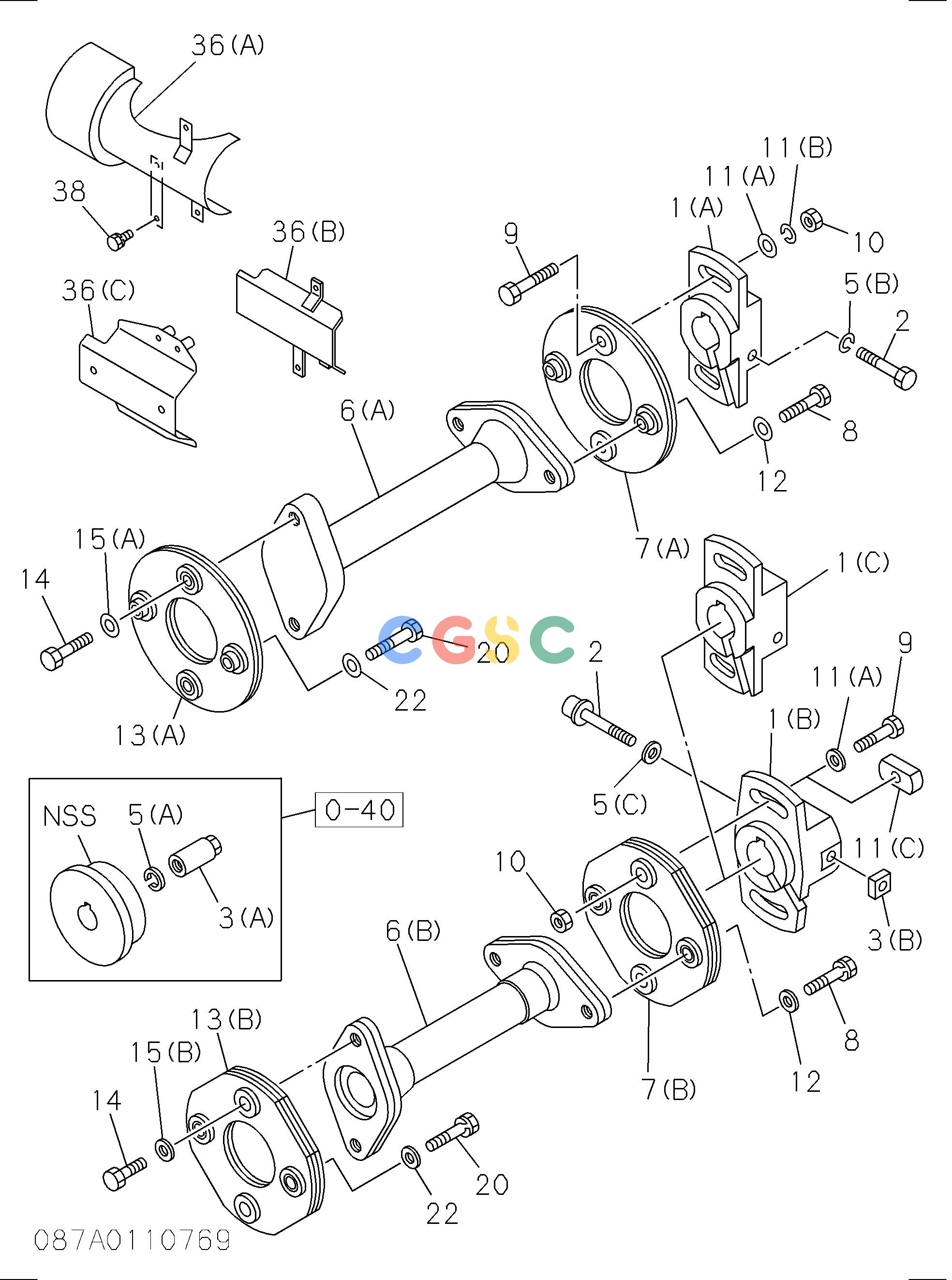

日立零件查询（CX1000）COUPLING; INJECTION PUMP Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
562 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(C). | 1157810170 | [1] | COUPLING; INJ PUMP DRIVE | |
| 2. | 1157890200 | [1] | BOLT; COUPLING FIX,INJ PUMP | |
| 5(C). | 1157890210 | [1] | WASHER; COUPLING FIX,INJ PUMP | |
| 6(B). | 1157891850 | [1] | COUPLING; CROSS,INJ PUMP DRIVE | |
| 7(B). | 1157890770 | [1] | PLATE; COUPLING,COUPLING SIDE | |
| 8. | 1157890600 | [2] | BOLT; PLATE TO CROSS COUPLING | |
| 9. | 1157890290 | [2] | BOLT; PLATE TO COUPLING,INJ PUMP | |
| 10. | 1157890730 | [2] | NUT; PLATE TO COUPLING,INJ PUMP | |
| 11(C). | 1157890950 | [2] | WASHER; PLATE TO COUPLING,INJ PUMP | |
| 13(B). | 1157890770 | [1] | PLATE; COUPLING,TIMER SIDE,INJ PUMP | |
| 14. | 1157890600 | [2] | BOLT; PLATE TO CROSS COUPLING,TIMER SIDE | |
| 20. | 1157891330 | [2] | BOLT; COUPLING TO INJ PUMP | |
| 36(C). | 1112191780 | [1] | COVER; COUPLING | |
| 36(C). | 1112191780 | [1] | COVER; COUPLING | |
| 38. | 0280808600 | [2] | BOLT; COVER, COUPLING | M8X60 FLANGE |
| 38. | 0281810700 | [1] | BOLT; COVER, COUPLING | M10X70 FLANGE |
| 38. | 0281810700 | [1] | BOLT; COVER, COUPLING | M10X70 FLANGE |
| 38. | 0281860110 | [1] | BOLT; COVER, COUPLING | M10X110 FLANGE |
| 38. | 0280808700 | [1] | BOLT; COVER, COUPLING | M8X70 FLANGE |
| 38. | 0280808700 | [1] | BOLT; COVER, COUPLING | M8X70 FLANGE |
| 38. | 0280808700 | [1] | BOLT; COVER, COUPLING | M8X70 FLANGE |
