日立零件查询（CX1000）WATER SEDIMENTER; FUEL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
491 次

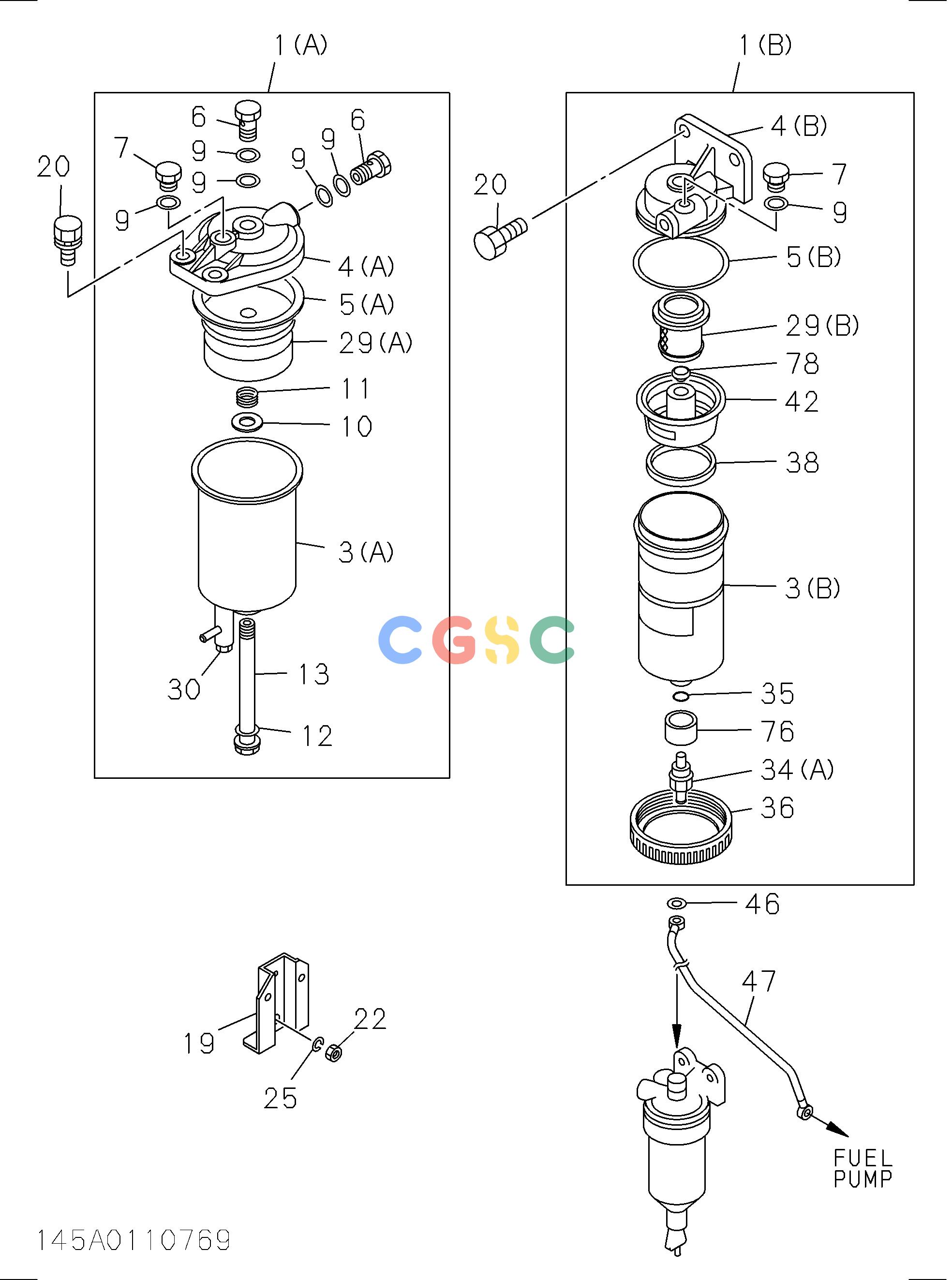

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(B). | 1132009600 | [1] | SEDIMENTER; FUEL | |
| 3(B). | 1132112550 | [1] | BODY ASM; SEDIMENTER | |
| 4(B). | 1132121391 | [1] | COVER; UPR,SEDIMENTER ASM | |
| 5(B). | 1096236100 | [1] | GASKET; UPR COVER,SEDIMENTER | |
| 7. | 1096040770 | [1] | PLUG; DRAIN,SEDIMENTER | |
| 9. | 1096301180 | [1] | GASKET; DRAIN PLUG & CONNECTOR | |
| 19. | 1197551120 | [1] | BRACKET; FUEL SEDIMENTER | |
| 20. | 0501410300 | [2] | BOLT; BRKT TO SEDIMENTER | M10X30 W/WASHER |
| 22. | 9091104100 | [5] | NUT; BRKT TO FILTER | |
| 25. | 9091505100 | [5] | WASHER; LK,BRKT TO FRAME | |
| 29(B). | 1132192120 | [1] | SCREEN ASM; SEDIMENTER | |
| 34(A). | 1132192110 | [1] | PLUG; DRAIN,FUEL FILTER | |
| 35. | 1096234730 | [1] | GASKET; DRAIN PLUG | |
| 36. | 1132192081 | [1] | RING; BODY TO CASE | |
| 38. | 1132192100 | [1] | FLOAT; SEDIMENTER | |
| 42. | 1132192090 | [1] | PLATE; BAFFLE | |
| 46. | 1096300850 | [4] | GASKET; FUEL PIPE | |
| 47. | 1154158160 | [1] | PIPE; FUEL,SEDIMENTER TO PUMP | |
| 76. | 1132192130 | [1] | CUP; DRAIN | |
| 78. | 1093331330 | [1] | GASKET; BAFFLE PLATE | |
