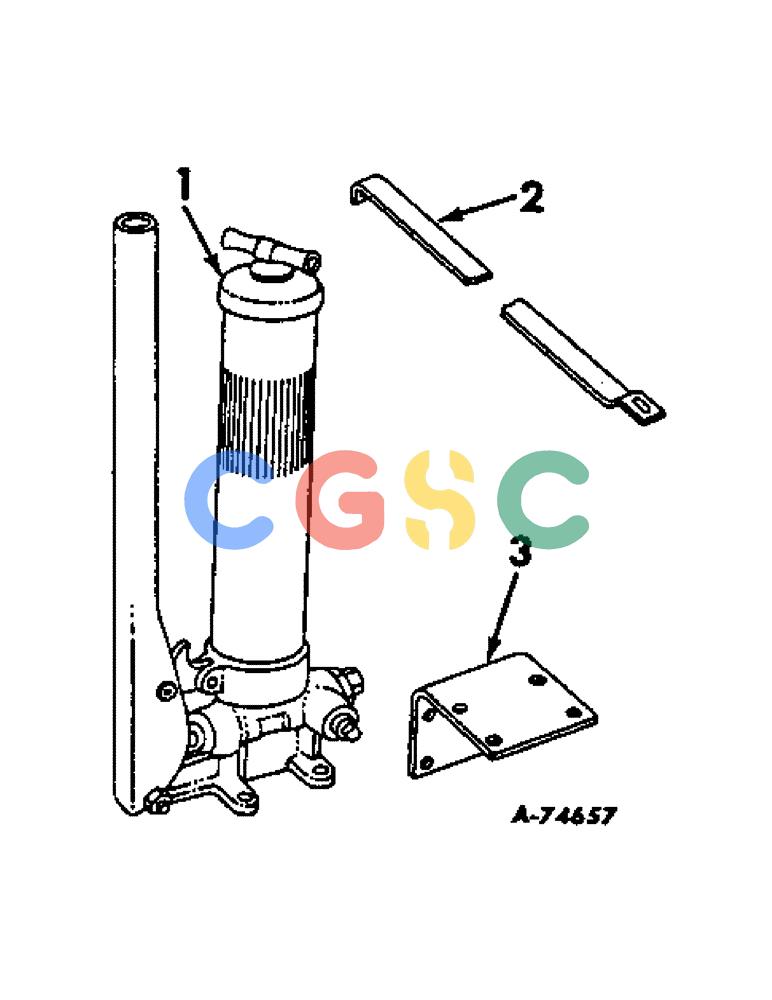

凯斯零件查询(47) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/63-12/88) (B-66) - CENTRALIZED LUBRICATION ATTACHMENT GREASE PUMP,, SUPPORT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
561 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
668621R91
|
[1] |
|
P
PUMP, grease
|
| 2. |
668557R1
|
[1] |
|
P
STOP, twister
|
| . . |
17426R1
|
[1] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8-16 x 1 hex-hd mach Superseded by part number: 24840R1
|
| . . |
17446R1
|
[1] |
BOLT,3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8-16 x 1-1/4 hex-hd mach Superseded by part number: 88011
|
| . . |
102635
|
[2] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| . . |
103321
|
[2] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 3. |
668556R1
|
[1] |
|
P
BRACKET, pump support
|
| . . |
14994R1
|
[4] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
|
IH
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2 Superseded by part number: 434-512
|
| . . |
18474R1
|
[4] |
BOLT,Hex, 5/16" - 18 x 1", Gr 2
|
IH
5/16-18 x 1 cd-pltd hex-hd mach Superseded by part number: 424-516
|
| . . |
9635082
|
[4] |
NUT,5/16" - 18, Gr 5
|
NH
5/16-18 hex
|
| . . |
120376
|
[4] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
103320
|
[8] |
LOCK WASHER,5/16"
|
IH
WASHER, LOCK, 5/16" Superseded by part number: 322358, 83990583
|
| . . |
668617R92
|
[1] |
|
P
KIT, line repair
|
| . . |
585842R92
|
[1] |
|
P
KIT, pump repair
|
| . . |
632585R91
|
[1] |
|
P
KIT, compression sleeve
|
| . . |
587813R91
|
[1] |
FLUID
|
IH
LUBRICANT, 5 gal. can Superseded by part number: 587813R92
|
| . . |
668558R91
|
[1] |
FLUID
|
IH
LUBRICANT, 1 lb can Superseded by part number: 156576C91
|
