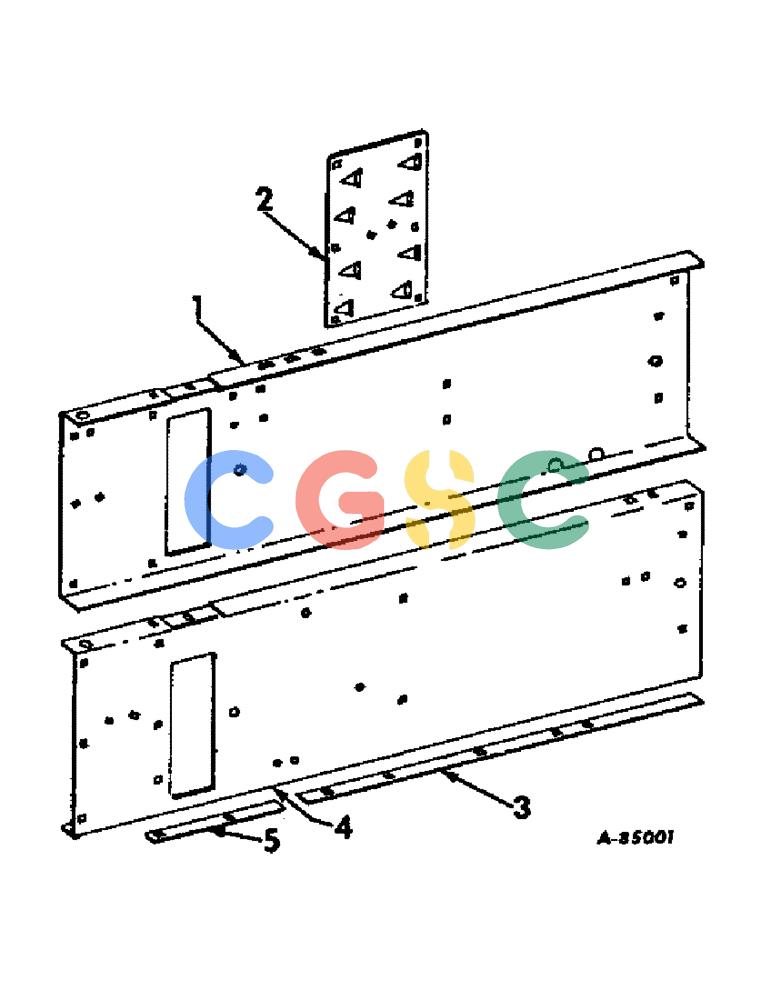

凯斯零件查询(47) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/63-12/88) (B-67) - HEAVY DUTY BALE CHAMBER ATTACHMENT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
514 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
671954R91
|
[1] |
|
P
STIFFENER ASSY, bale chamber RH
|
| . . |
86508749
|
[10] |
CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5
|
GI
BOLT, 3/8 x 1-1/4 sq-nk crg
|
| . . |
15039R1
|
[1] |
BOLT
|
IH
3/8 x 1-1/2 sq-nk crg Superseded by part number: 18685R1
|
| . . |
102635
|
[11] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| . . |
103321
|
[11] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 2. |
671960R2
|
[1] |
PLATE
|
IH
hay retainer LH
|
| 3. |
671959R1
|
[2] |
|
P
FILLER, bale chamber stiffener rear
|
| 4. |
671953R91
|
[1] |
|
P
STIFFENER ASSY, bale chamber LH
|
| 5. |
671958R1
|
[2] |
|
P
FILLER, bale chamber stiffener front
|
