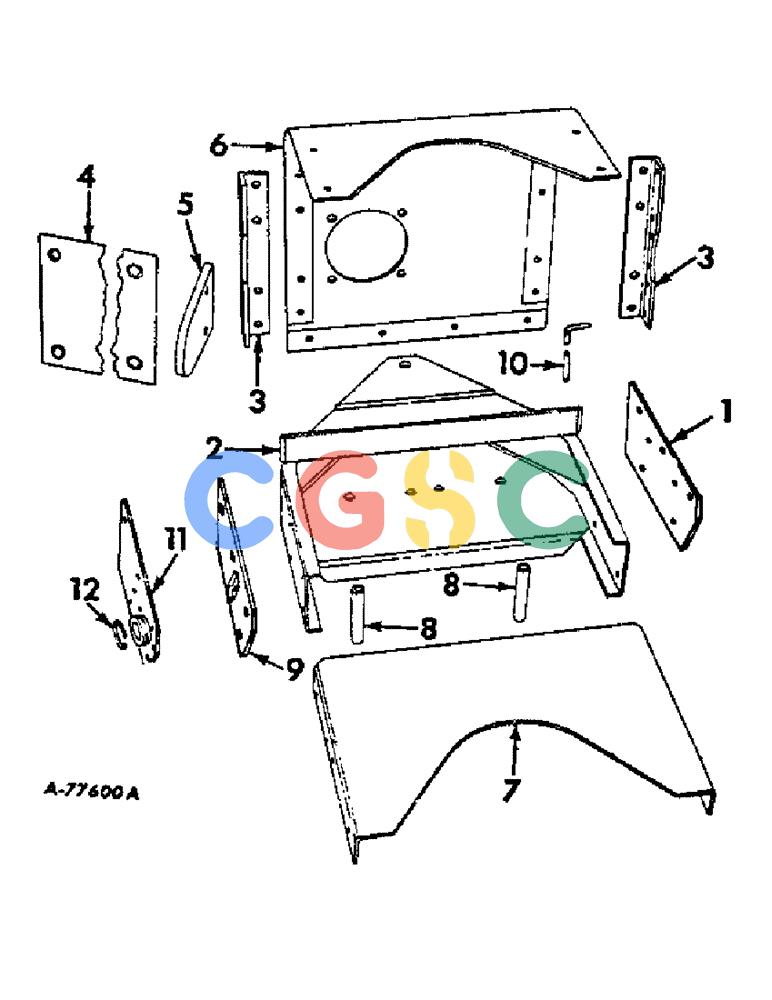

| 1. |
663414R1
|
[1] |
|
P
PLATE, hitch side
|
| . . |
664646R1
|
[3] |
LOCK NUT,7/16"-14, GB
|
IH
NUT, 7/16-14 lock Superseded by part number: 280980
|
| . . |
179860
|
[3] |
BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5
|
IH
SCREW, 7/16-14 x 1-1/4 hex-hd cap Superseded by part number: 9627887
|
| . . |
103322
|
[3] |
LOCK WASHER,7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| 2. |
663231R92
|
[1] |
|
P
CHANNEL ASSY, hitch
|
| 3. |
663505R1
|
[2] |
|
P
ANGLE, main drive support
|
| 4. |
663388R1
|
[1] |
|
P
COVER, PTO grille
|
| 5. |
663577R1
|
[1] |
|
P
PLUG, main drive right support
|
| 6. |
663504R1
|
[1] |
|
P
GUSSET, bale chamber front
|
| 7. |
663470R1
|
[1] |
|
P
GUSSET, bale chamber bottom front
|
| . . |
664645R1
|
[4] |
LOCK NUT,3/8"-16, GB
|
IH
NUT, 3/8-16 lock Superseded by part number: 231-4206
|
| . . |
179841
|
[4] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
|
IH
3/8-16 x 1-1/4 hex-hd cap Superseded by part number: 88011
|
| . . |
179863
|
[6] |
BOLT,Hex, 7/16" - 14 x 1 5/8"
|
IH
SCREW, 7/16-14 x 1-5/8 hex-hd cap Superseded by part number: 84192879
|
| . . |
103321
|
[4] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 8. |
663350R1
|
[2] |
|
P
STOP, hitch
|
| 9. |
668584R91
|
[1] |
|
P
LUG ASSY, jack mount, 501G thru 2597K
|
| 10. |
663366R1
|
[1] |
|
P
PIN, hitch lock
|
| 11. |
665068R91
|
[1] |
|
P
PIVOT ASSY, jack mounting, 2598L up
|
| 12. |
665071R1
|
[1] |
SNAP RING,#200, Ext
|
IH
jack mounting pivot, 2598L up #200, Ext Superseded by part number: 27503
|
